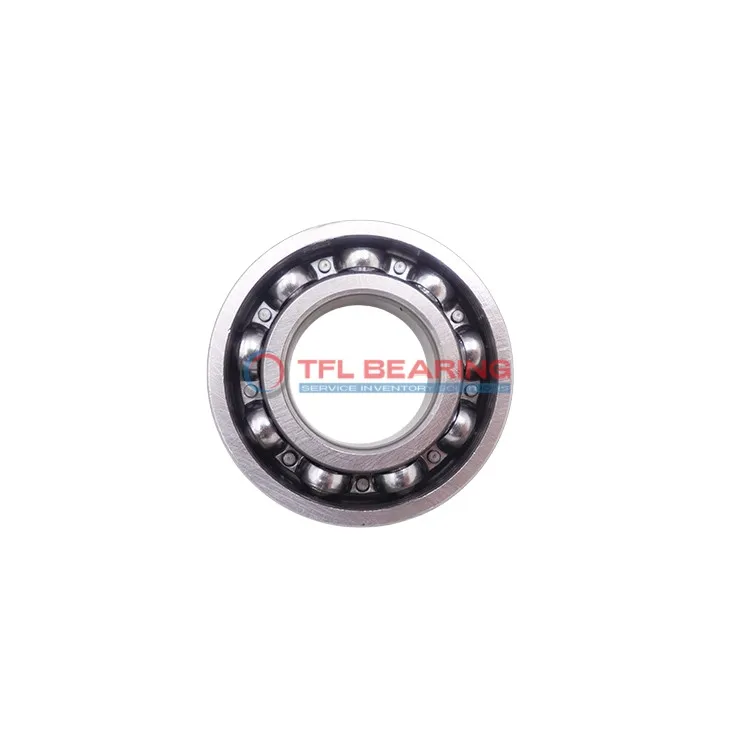

Single Row Deep Groove Ball Bearings 6315/S1

Single Row Deep Groove Ball Bearings 6315/S1

The 6315/S1 is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 25403 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability under heavy use. The bearing functions well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 3030g, it offers a robust build for industrial use. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315/S1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 25403 lbf
  • Static Radial Load 17355 lbf
  • Max Speed 4300 rpm
  • Weight 3030 g
  • price（$） 51.957
Single Row Deep Groove Ball Bearings 6315/S1 dimension drawing
Download DWG Download PDF

Features

How Does 6315/S1 Bearing Reduce Friction?

6315/S1 Bearing features a deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.
The single-row ball arrangement enhances stability, even at speeds up to 4,300 rpm.
With a wide temperature range of -30°C to 200°C, it performs reliably in various conditions.

Application

Industrial Uses of 6315/S1 Bearing
The 6315/S1 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6315/S1 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying speeds. The chrome steel construction ensures durability, even in high-temperature environments.

For automation equipment, 6315/S1 Bearing supports smooth operation in robotic arms and conveyor belts. Its ABEC 1 tolerance class offers sufficient precision for most general-purpose industrial needs.

Where to Use 6315/S1 Bearing
You’ll often find 6315/S1 Bearing in household appliances like washing machines, where its radial load capacity handles spinning motions effortlessly. The metric sizing makes it compatible with a variety of European-designed appliances.

In agricultural machinery, 6315/S1 Bearing withstands dusty conditions while maintaining performance in equipment like harvesters. Its chrome steel cage adds extra resistance to wear and tear.
