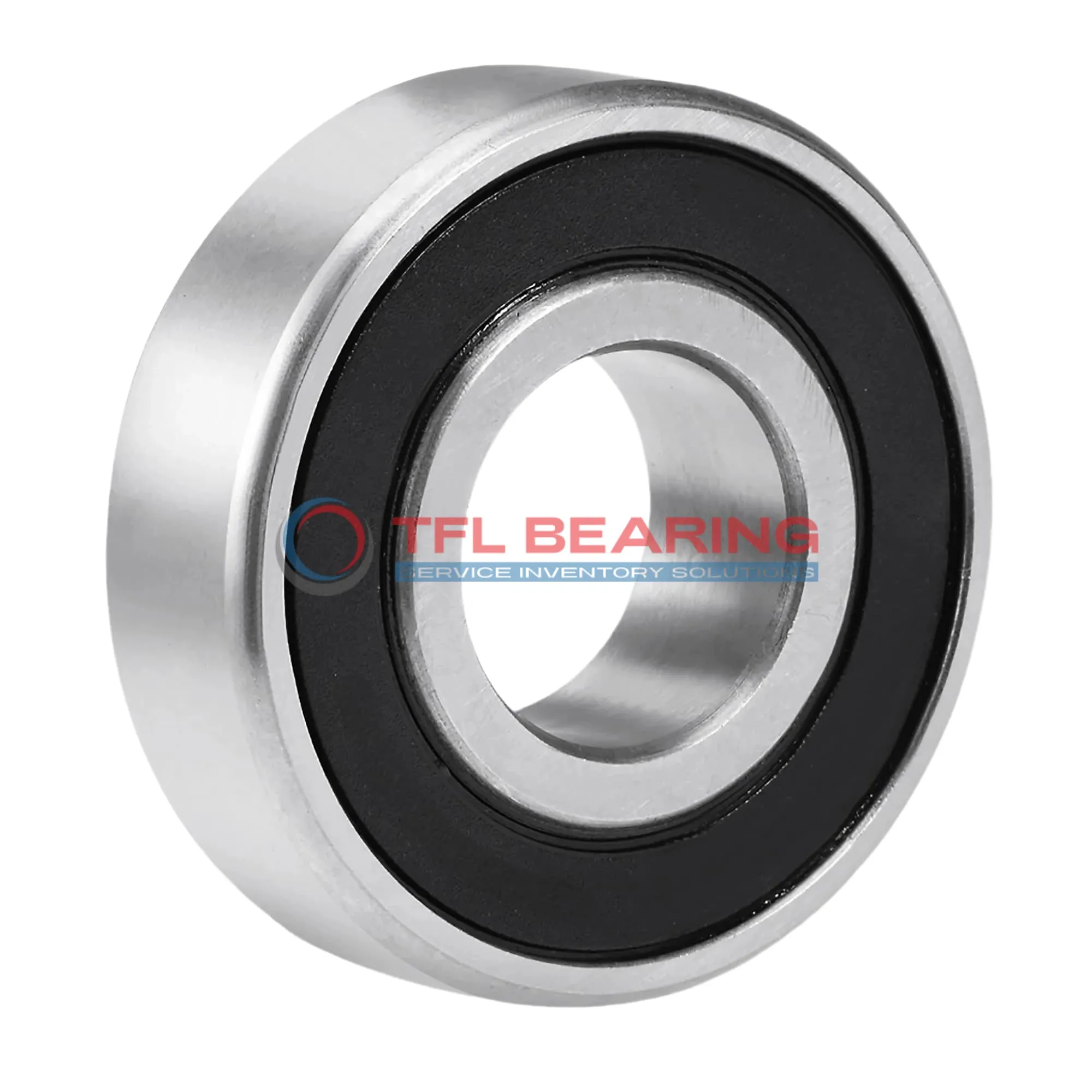

Single Row Deep Groove Ball Bearings 6315-2RS1

Single Row Deep Groove Ball Bearings 6315-2RS1

The 6315-2RS1 is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 26752 lbf and operates smoothly at speeds up to 2800 RPM.

Sealed on both sides, this bearing keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds strength and longevity, even in temperatures from -30°C to 120°C.

With a P6 tolerance class, it offers precise performance for demanding applications. This model is interchangeable with SKF bearings, ensuring easy replacements.

Ideal for industrial machinery, pumps, or electric motors where reliable radial load support is needed. Weighing 3.13kg, it’s a robust choice for heavy-duty use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 26752 lbf
  • Static Radial Load 17198 lbf
  • Max Speed 2800 rpm
  • Weight 3.13 kg
  • price（$） 54.585
Single Row Deep Groove Ball Bearings 6315-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6315-2RS1 Bearing

6315-2RS1 Bearing is designed with chrome steel rings and balls, offering excellent radial load capacity up to 26752 lbf.
The sealed construction keeps contaminants out, ensuring smooth operation in various environments.
With a P6 tolerance class, it provides precise performance for demanding applications.
Its stainless steel cage enhances durability, making it suitable for long-term use.

How Does 6315-2RS1 Bearing Reduce Friction?

6315-2RS1 Bearing features a deep groove design that minimises friction during operation.
The grease lubrication ensures consistent performance, even at speeds up to 2,800 rpm.
Its chrome steel construction reduces wear, extending the bearing’s service life.
The sealed design also helps maintain lubrication, reducing maintenance needs.

Built for Reliability: 6315-2RS1 Bearing

6315-2RS1 Bearing is crafted to handle radial loads efficiently, with a static load capacity of 17198 lbf.
The sealed design protects against dust and moisture, ideal for harsh conditions.
Its temperature range of -30° to 120°C ensures performance in varying climates.
The stainless steel cage adds strength, making it a dependable choice for industrial use.

Application

Common Applications of 6315-2RS1 Bearing
6315-2RS1 Bearing works well in industrial settings, especially for machinery like pumps and electric motors where radial loads are common. Its sealed design keeps grease in and contaminants out, making it reliable for long-term use.

In automotive applications, 6315-2RS1 Bearing fits nicely into wheel hubs and transmission systems, providing smooth rotation under heavy loads. The chrome steel construction ensures it can handle the demands of daily driving.

For home appliances, 6315-2RS1 Bearing is often found in washing machines and dryers, where its durability and sealed protection help extend the life of the appliance. The stainless steel cage adds extra resistance to wear and tear.

In automation equipment, 6315-2RS1 Bearing supports robotic arms and conveyor belts, offering precise movement and low maintenance. The P6 tolerance class ensures consistent performance in high-precision tasks.

Medical devices like centrifuges benefit from 6315-2RS1 Bearing’s smooth operation and reliable load handling. The grease lubrication reduces friction, making it ideal for sensitive equipment.
