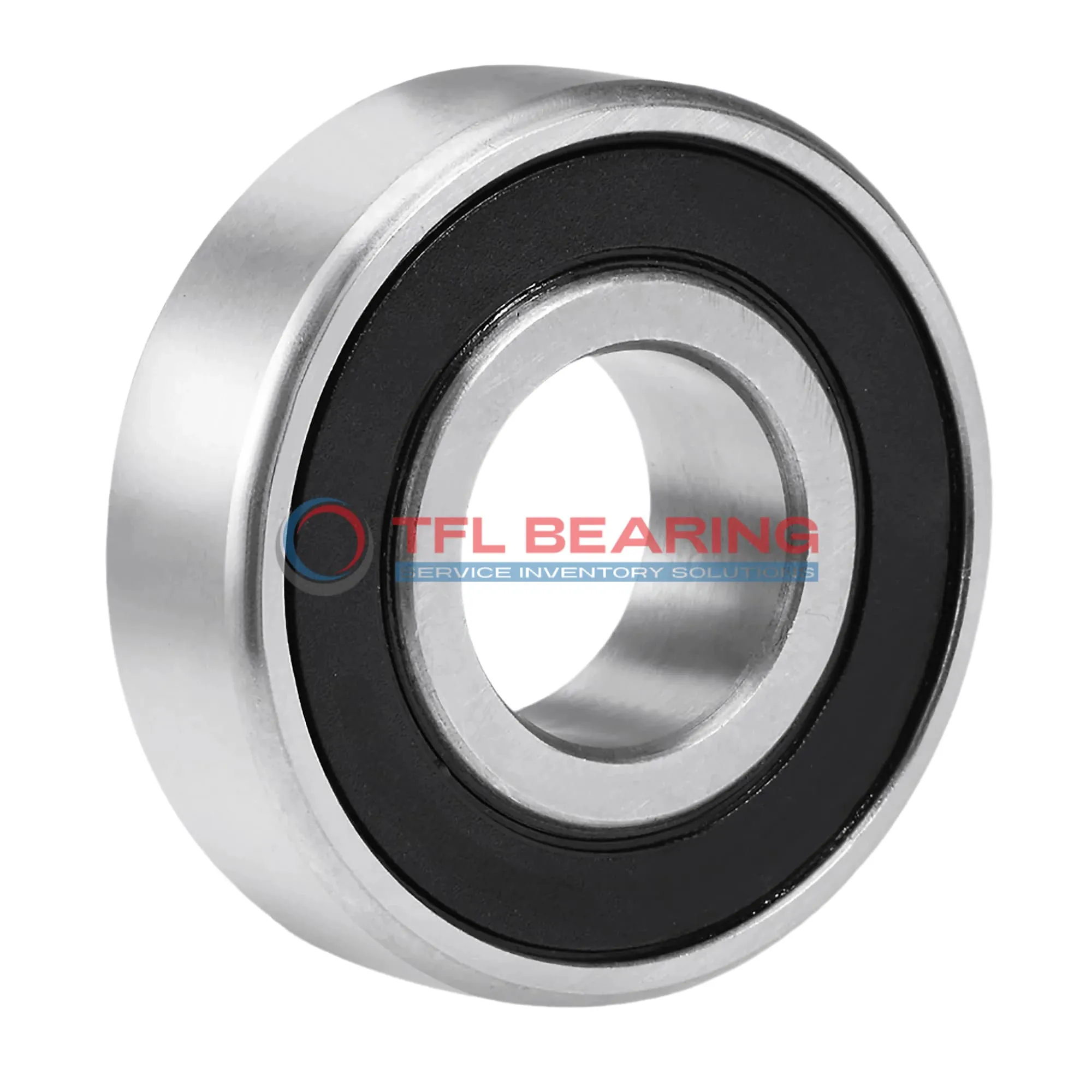

Single Row Deep Groove Ball Bearings 6315-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6315-2RS1/C3GJN

The 6315-2RS1/C3GJN is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 25403 lbf and operates smoothly at speeds up to 4300 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Suitable for electric motors, pumps, or industrial gearboxes where reliability is key.

Weighing 3030g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 25403 lbf
  • Static Radial Load 17355 lbf
  • Max Speed 4300 rpm
  • Weight 3030 g
  • price（$） 54.585
Single Row Deep Groove Ball Bearings 6315-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6315-2RS1/C3GJN Bearing Reduce Friction?

6315-2RS1/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.

Chrome steel rings and balls in 6315-2RS1/C3GJN Bearing provide excellent wear resistance, reducing maintenance needs.
Its C3 radial clearance allows for thermal expansion, maintaining efficiency in varying temperatures.

With a dynamic radial load capacity of 25,403 lbf, 6315-2RS1/C3GJN Bearing handles demanding applications reliably.
The sealed design also helps retain lubrication, further minimising friction during operation.

6315-2RS1/C3GJN Bearing operates smoothly up to 4,300 rpm while maintaining low noise levels.
Its wide temperature range of -30°C to 120°C ensures performance in diverse environments.

Application

Industrial Uses of 6315-2RS1/C3GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6315-2RS1/C3GJN Bearing handles radial loads in components such as alternators and wheel hubs. Its chrome steel construction offers durability, making it suitable for long-term use in vehicles.

For automation systems, this bearing supports smooth operation in robotic arms and conveyor belts. The sealed design reduces maintenance needs, while the ABEC 1 tolerance ensures consistent precision.

In household appliances like washing machines, 6315-2RS1/C3GJN Bearing provides quiet and efficient performance. Its robust design handles the constant motion and load variations typical in daily use.
