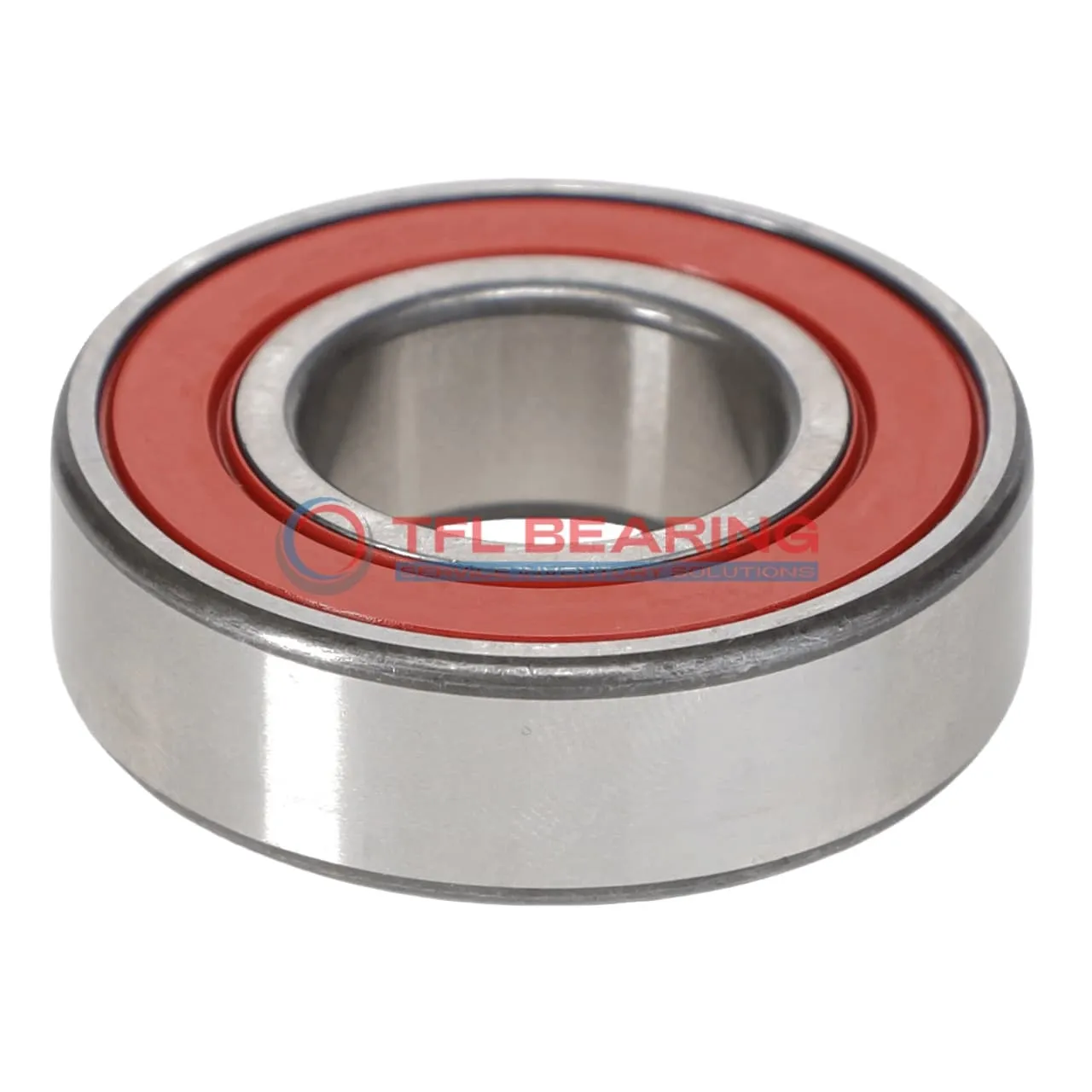

Single Row Deep Groove Ball Bearings 6314-2RS1/C3

Single Row Deep Groove Ball Bearings 6314-2RS1/C3

The 6314-2RS1/C3 is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2338 lbf and runs smoothly at speeds up to 4500 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for machinery like electric motors or pumps where radial loads are common.

Weighing 2530g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
  • price（$） 54.936
Single Row Deep Groove Ball Bearings 6314-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Core Advantages of 6314-2RS1/C3 Bearing

6314-2RS1/C3 Bearing features a sealed design, protecting against dust and moisture for reliable performance.
Its chrome steel construction ensures durability, even under heavy radial loads up to 15332 lbf.

The single-row deep groove design allows smooth operation, reducing friction and noise.
With a maximum speed of 4,500 rpm, it balances efficiency and longevity in various applications.

6314-2RS1/C3 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
The C3 radial clearance provides flexibility, accommodating thermal expansion during use.

Application

Industrial Uses of 6314-2RS1/C3 Bearing
6314-2RS1/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6314-2RS1/C3 Bearing Used?
You’ll often find 6314-2RS1/C3 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its ability to handle both radial and light axial loads. Its chrome steel construction offers good durability for everyday use.

Built for Heavy-Duty Use: 6314-2RS1/C3 Bearing
6314-2RS1/C3 Bearing works well in agricultural equipment, where dust and moisture resistance are key. The sealed design and robust materials make it a reliable choice for tough environments.

Automotive vs Aerospace: Applications of 6314-2RS1/C3 Bearing
In automotive settings, 6314-2RS1/C3 Bearing supports components like alternators and fans, while its precision makes it suitable for some aerospace auxiliary systems. The metric sizing ensures compatibility across various applications.

Perfect Fit for Automation: 6314-2RS1/C3 Bearing
6314-2RS1/C3 Bearing is ideal for robotic arms and conveyor systems in automated production lines. Its sealed construction reduces maintenance needs, keeping operations running smoothly.
