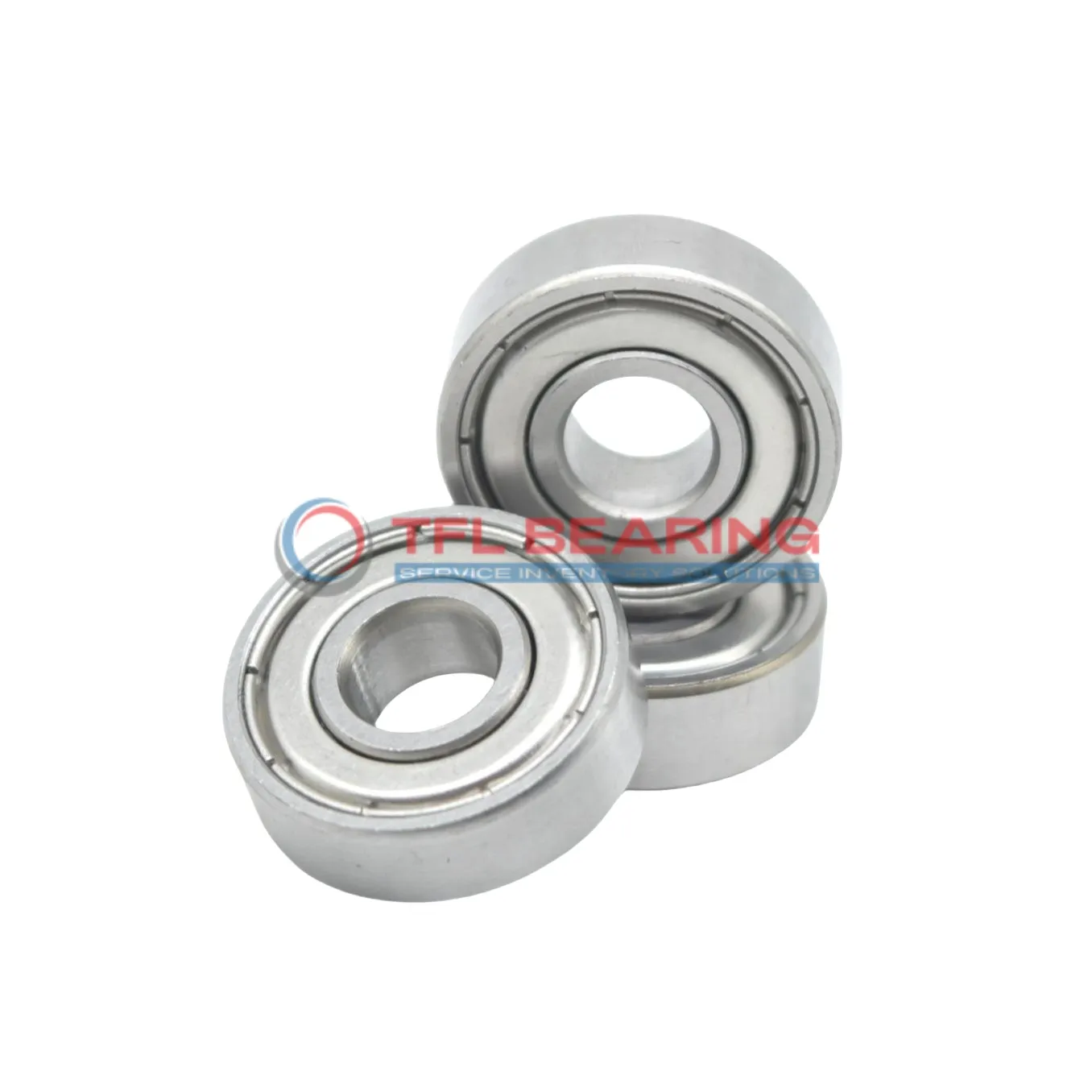

Single Row Deep Groove Ball Bearings 6312-2Z/C3HT

Single Row Deep Groove Ball Bearings 6312-2Z/C3HT

The 6312-2Z/C3HT is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 18412 lbf and runs smoothly at speeds up to 5300 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for thermal expansion. The chrome steel cage adds durability, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 1.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most applications. Ideal for pumps, motors, or gearboxes where radial loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2Z/C3HT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
Single Row Deep Groove Ball Bearings 6312-2Z/C3HT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6312-2Z/C3HT Bearing

6312-2Z/C3HT Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 18412 lbf.

Its shielded design protects against contaminants while maintaining smooth operation.

The C3 radial clearance ensures reliable performance under varying thermal conditions.

With a maximum speed of 5,300 rpm, it balances durability and efficiency in demanding applications.

Application

Industrial Uses of 6312-2Z/C3HT Bearing
6312-2Z/C3HT Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6312-2Z/C3HT Bearing a Preferred Choice?
In automotive applications, 6312-2Z/C3HT Bearing is ideal for wheel hubs and transmissions, thanks to its high radial load capacity. The chrome steel construction provides durability and long service life in demanding conditions.

Perfect Fit for Automation: 6312-2Z/C3HT Bearing
For automated systems and robotics, 6312-2Z/C3HT Bearing offers reliable performance in components like conveyor belts and assembly lines. Its metric sizing makes it easy to integrate into various equipment designs.

Medical vs Industrial: Where 6312-2Z/C3HT Bearing Excels
While 6312-2Z/C3HT Bearing is robust enough for industrial gearboxes, it also meets the precision needs of medical devices like centrifuges. The temperature range of -30°C to 120°C ensures versatility across different environments.
