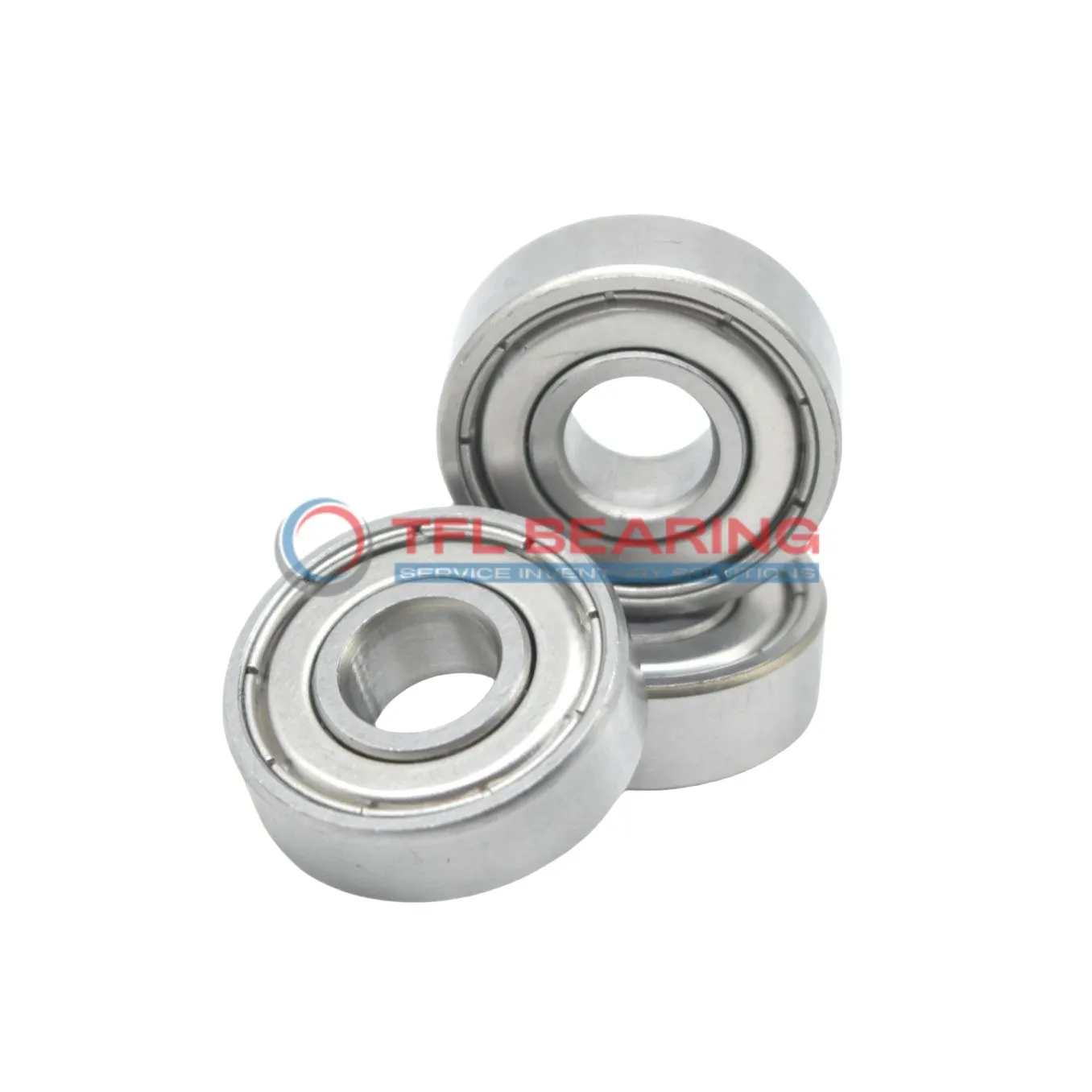

Single Row Deep Groove Ball Bearings 6312-2Z/C3GWP

Single Row Deep Groove Ball Bearings 6312-2Z/C3GWP

The 6312-2Z/C3GWP is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 18412 lbf and runs smoothly at speeds up to 5300 RPM.

Its shielded design keeps dirt out while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1699g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2Z/C3GWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
  • price（$） 30.339
Single Row Deep Groove Ball Bearings 6312-2Z/C3GWP dimension drawing
Download DWG Download PDF

Features

How Does 6312-2Z/C3GWP Bearing Reduce Friction?

6312-2Z/C3GWP Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction protects against contaminants while maintaining low friction.

Chrome steel rings and balls enhance durability, ensuring consistent performance under dynamic loads up to 18412 lbf.
Its C3 radial clearance allows for thermal expansion, suitable for varied operating conditions.

With a maximum speed of 5,300 rpm, 6312-2Z/C3GWP Bearing balances efficiency and reliability.
The ABEC 1 tolerance ensures precise operation, making it ideal for general industrial applications.

Application

Industrial Uses of 6312-2Z/C3GWP Bearing
6312-2Z/C3GWP Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6312-2Z/C3GWP Bearing fits well in wheel hubs and transmissions, thanks to its balanced radial load capacity. The chrome steel construction provides durability for long-term use in demanding environments.

For automation systems, 6312-2Z/C3GWP Bearing offers smooth operation in robotic arms and conveyor belts. Its metric sizing makes it easy to integrate into standard European and Asian equipment designs.

What Makes 6312-2Z/C3GWP Bearing a Preferred Choice?
6312-2Z/C3GWP Bearing is a go-to for household appliances like washing machines, where its shielded seals protect against dust and moisture. The ABEC 1 tolerance ensures quiet and efficient performance.

In agricultural machinery, 6312-2Z/C3GWP Bearing handles heavy radial loads in equipment like harvesters. Its wide temperature range makes it suitable for both hot and cold working conditions.
