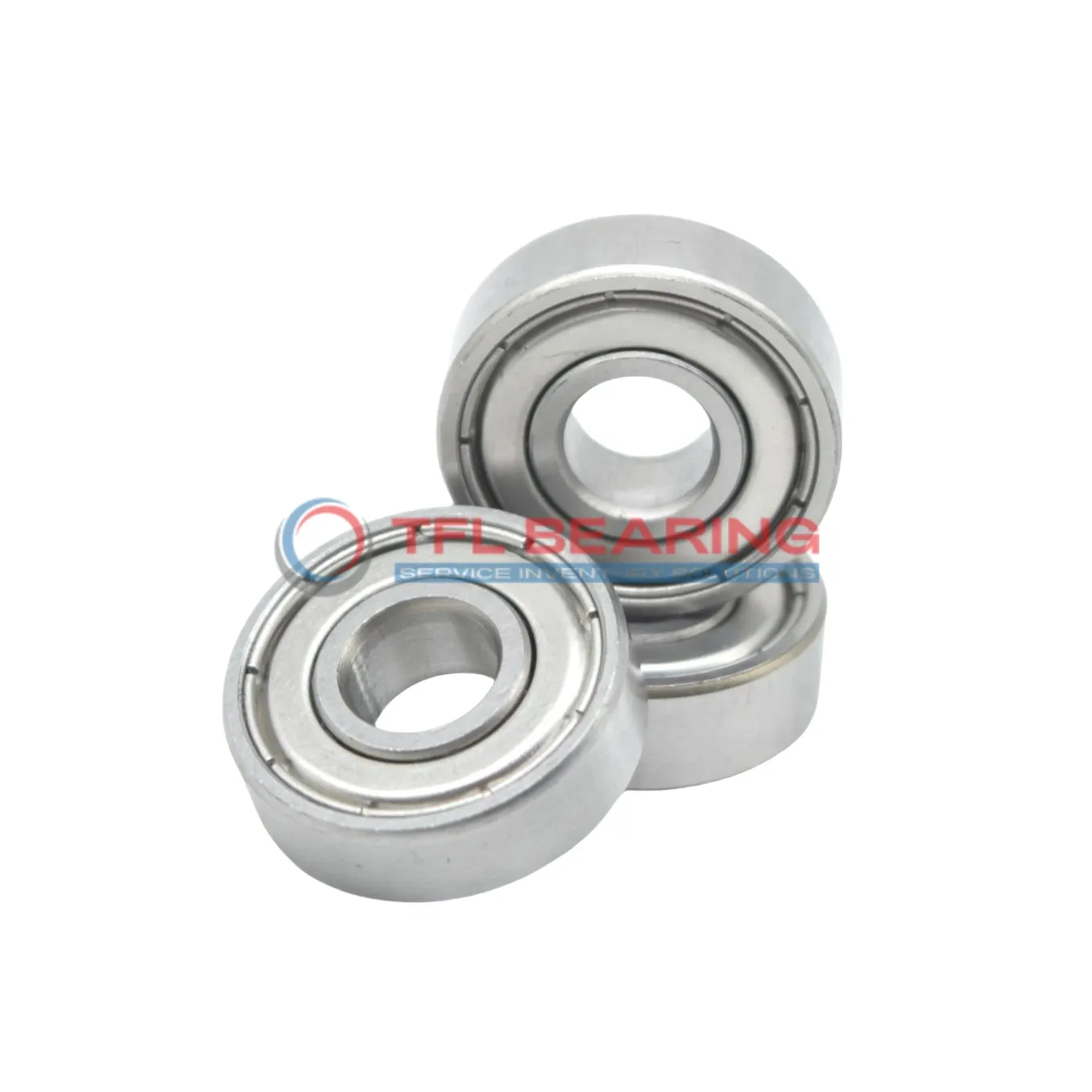

Single Row Deep Groove Ball Bearings 6312-2Z/C3GJN

Single Row Deep Groove Ball Bearings 6312-2Z/C3GJN

The 6312-2Z/C3GJN is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 18412 lbf and operates smoothly at speeds up to 5300 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1699g, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2Z/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
  • price（$） 31.302
Single Row Deep Groove Ball Bearings 6312-2Z/C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6312-2Z/C3GJN Bearing

6312-2Z/C3GJN Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 18,412 lbf, ensuring reliable performance in various applications.

The shielded design of 6312-2Z/C3GJN Bearing protects against contaminants, extending its service life.
With a maximum speed of 5,300 rpm, it balances durability and efficiency for smooth operation.

6312-2Z/C3GJN Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its C3 radial clearance provides optimal performance under varying load conditions.

The chrome steel cage in 6312-2Z/C3GJN Bearing ensures proper ball alignment, reducing wear and noise.
This design makes it a cost-effective choice for long-term use in industrial applications.

Application

Industrial Uses of 6312-2Z/C3GJN Bearing
6312-2Z/C3GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against dust and debris. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6312-2Z/C3GJN Bearing supports components such as alternators and fans, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6312-2Z/C3GJN Bearing provides reliable performance in robotic arms and conveyor belts. The shielded seals help maintain lubrication, reducing maintenance needs in high-speed operations.

What Makes 6312-2Z/C3GJN Bearing a Preferred Choice?
6312-2Z/C3GJN Bearing is ideal for household appliances like washing machines, where its durability ensures long-term performance. The chrome steel cage enhances stability under consistent radial loads.

In agricultural equipment, 6312-2Z/C3GJN Bearing handles heavy loads in machinery like harvesters. Its wide temperature range makes it suitable for outdoor use in varying climates.
