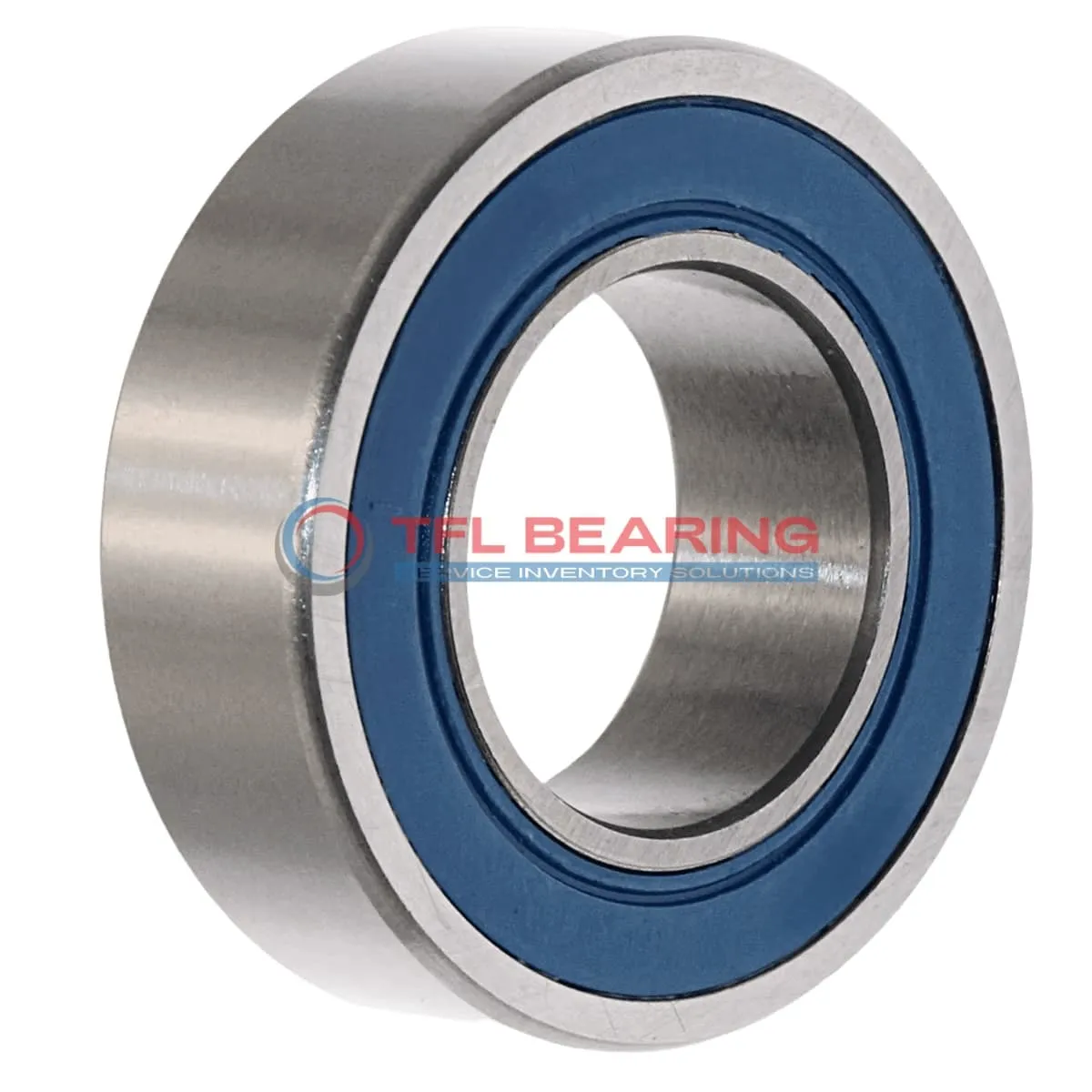

Single Row Deep Groove Ball Bearings 6310-2RS1/C3LTVT210

The 6310-2RS1/C3LTVT210 is a single-row deep groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, while the C3 radial clearance ensures reliable performance under varying temperatures.

This bearing is interchangeable with SKF models, offering a practical replacement option. It works well in applications like electric motors or pumps where radial loads are common.

Weighing 1050g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C.

The ABEC 1 tolerance ensures consistent performance, ideal for general industrial use. Its sealed construction also makes it suitable for dusty or humid environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6310-2RS1/C3LTVT210
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 27 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 13938 lbf
Static Radial Load 861 lbf
Max Speed 6000 rpm
Weight 1050 g

Single Row Deep Groove Ball Bearings 6310-2RS1/C3LTVT210 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6310-2RS1/C3LTVT210 Bearing

6310-2RS1/C3LTVT210 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 13938 lbf.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

The C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications up to 6,000 rpm.
With a temperature range of -30°C to 120°C, it performs reliably in diverse conditions.

The single-row deep groove design ensures low friction and quiet operation.
Its durable chrome steel cage maintains ball alignment, extending the bearing’s service life.

Application

Common Applications of 6310-2RS1/C3LTVT210 Bearing
6310-2RS1/C3LTVT210 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6310-2RS1/C3LTVT210 Bearing fits well in wheel hubs and alternators, thanks to its radial load capacity and durability. The chrome steel construction provides long-lasting performance in demanding environments.

For automation systems, 6310-2RS1/C3LTVT210 Bearing is a solid choice for robotic arms and conveyor belts, where smooth operation is key. Its sealed design reduces maintenance needs, making it ideal for high-use scenarios.

In household appliances like washing machines, 6310-2RS1/C3LTVT210 Bearing offers quiet and efficient performance. The metric sizing ensures compatibility with a range of European and Asian models.
