Stainless Steel Deep Groove Ball Bearings W 61809-2RS1

Stainless Steel Deep Groove Ball Bearings W 61809-2RS1

The W 61809-2RS1 is a compact stainless steel deep groove ball bearing, measuring 45mm by 58mm by 7mm. It handles radial loads up to 1111 lbf and spins smoothly at speeds up to 6700 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, suitable for food processing or marine applications.

Weighing just 0.037kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61809-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 58 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1111 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.037 kg

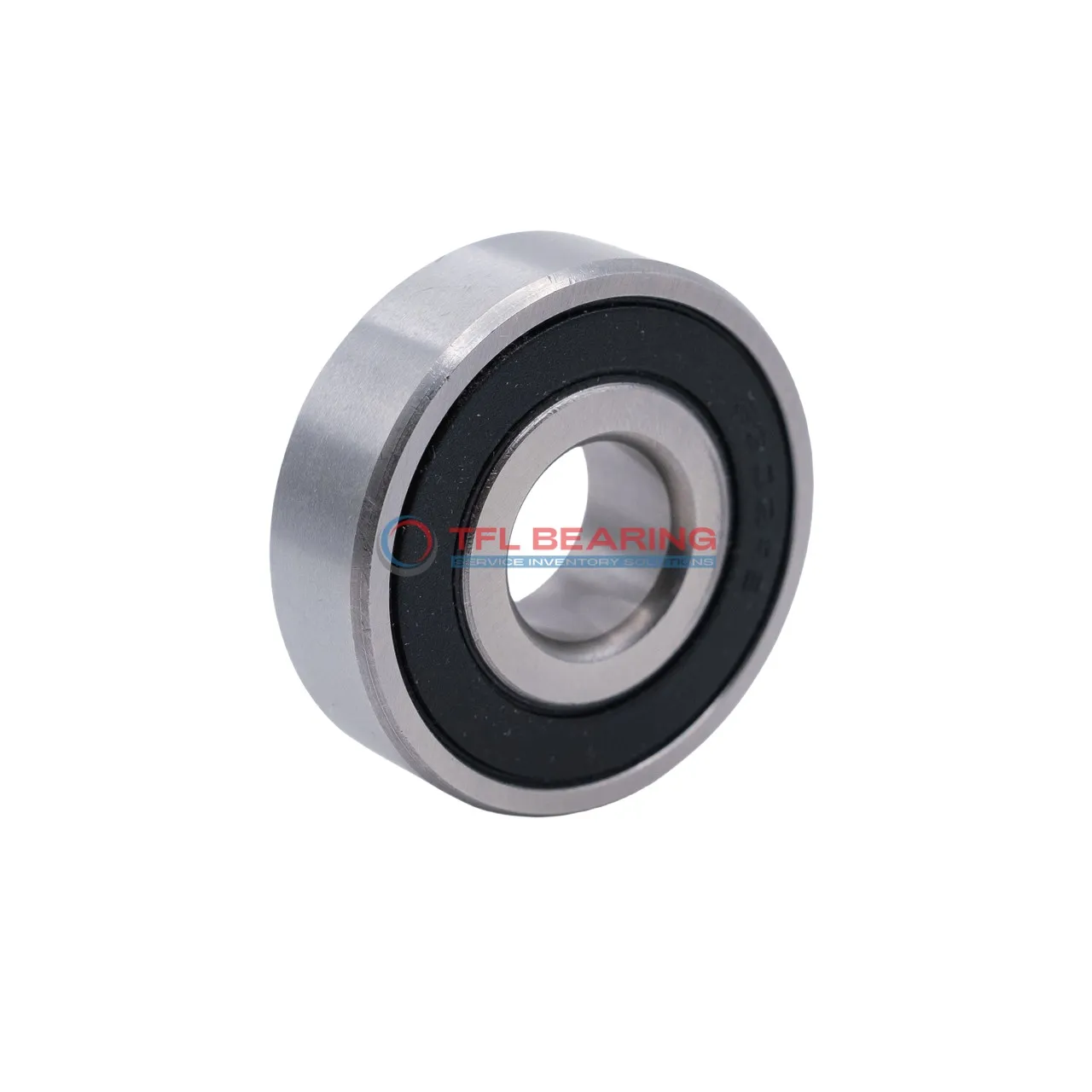

Stainless Steel Deep Groove Ball Bearings W 61809-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61809-2RS1 Bearing for Precision Tasks?

W 61809-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance.
Its sealed design keeps contaminants out, making it ideal for clean or humid environments.
The single-row construction provides reliable radial load support, with a dynamic load capacity of 1111 lbf.
With a maximum speed of 6,700 rpm, it offers smooth operation for precision applications.

Application

Common Applications of W 61809-2RS1 Bearing
W 61809-2RS1 Bearing is widely used in food processing equipment, thanks to its stainless steel construction that resists corrosion and meets hygiene standards. Its sealed design keeps contaminants out, ensuring smooth operation in wet or dusty environments.

In household appliances like washing machines, W 61809-2RS1 Bearing provides quiet and reliable performance. The compact size and radial load capacity make it ideal for space-constrained applications.

For small electric motors, W 61809-2RS1 Bearing offers consistent performance with minimal maintenance. The grease lubrication ensures long service life, even in continuous operation.

Automotive accessories like alternators and water pumps benefit from W 61809-2RS1 Bearing’s durability. The metric dimensions ensure easy integration into various vehicle systems.
