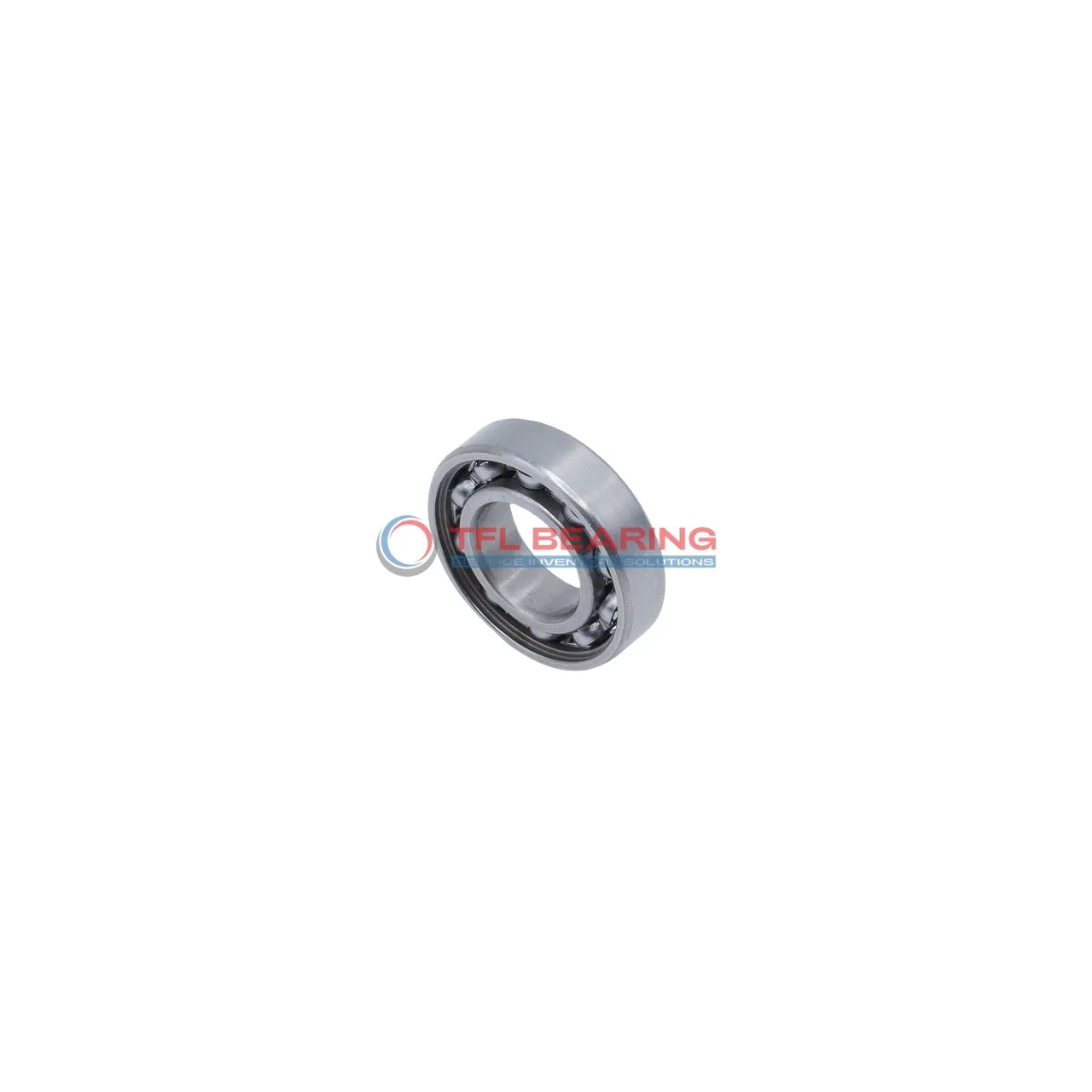

Single Row Deep Groove Ball Bearings 6309/C5

Single Row Deep Groove Ball Bearings 6309/C5

The 6309/C5 is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 811g, it offers a solid balance of strength and weight. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6309/C5
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g
  • price（$） 12.042
Single Row Deep Groove Ball Bearings 6309/C5 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6309/C5 Bearing

6309/C5 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11915 lbf, ensuring reliable performance in various applications.

The chrome steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 6,700 rpm, it balances durability and efficiency for smooth operation.

6309/C5 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Common Applications of 6309/C5 Bearing
In industrial settings, 6309/C5 Bearing works well in pumps and electric motors, handling radial loads with ease. Its open design simplifies lubrication, making maintenance straightforward for busy workshops.

Where Is 6309/C5 Bearing Used?
You’ll often spot 6309/C5 Bearing in conveyor systems, where its C5 clearance helps manage slight misalignments. The chrome steel construction ensures long-lasting performance even in dusty environments.

Built for Heavy-Duty Use: 6309/C5 Bearing
6309/C5 Bearing is a reliable pick for agricultural machinery, like harvesters, thanks to its sturdy build. The metric sizing fits seamlessly into most European-designed equipment.

Automotive vs Industrial: Applications of 6309/C5 Bearing
In cars, 6309/C5 Bearing supports alternators and fans, while in factories, it keeps gearboxes running smoothly. Its balanced load capacity makes it versatile across different settings.

Perfect Fit for Automation: 6309/C5 Bearing
6309/C5 Bearing shines in robotic arms, where precision and durability matter. The ABEC 1 tolerance ensures consistent performance without overcomplicating the design.
