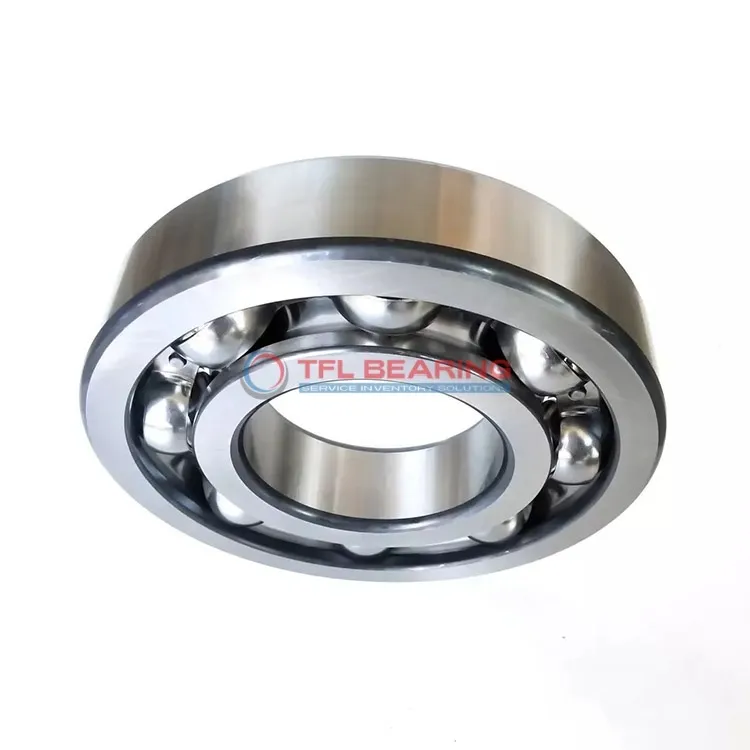

Single Row Deep Groove Ball Bearings 6308/C4W64

Single Row Deep Groove Ball Bearings 6308/C4W64

The 6308/C4W64 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 915 lbf and operates smoothly at speeds reaching 7500 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for applications requiring slight thermal expansion. This model is interchangeable with SKF bearings, making replacements straightforward.

Ideal for machinery like pumps or electric motors where radial loads are common. Weighing 620g, it balances strength and practicality. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308/C4W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
  • price（$） 16.695
Single Row Deep Groove Ball Bearings 6308/C4W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6308/C4W64 Bearing

6308/C4W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5395 lbf.
Its solid oil lubrication ensures smooth operation, reducing the need for frequent maintenance.

The C4 radial clearance allows for thermal expansion, making it suitable for varying temperatures.
With a maximum speed of 7,500 rpm, it delivers reliable performance in diverse applications.

6308/C4W64 Bearing’s open design simplifies installation, saving time and effort.
Its durable construction ensures long service life, even under continuous use.

Application

Common Applications of 6308/C4W64 Bearing
In industrial settings, 6308/C4W64 Bearing is widely used in electric motors and pumps due to its reliable radial load capacity and solid oil lubrication. The open design simplifies maintenance, making it suitable for continuous operation environments.

Where Is 6308/C4W64 Bearing Used?
You’ll often find 6308/C4W64 Bearing in automotive applications like alternators and wheel hubs, where its C4 clearance ensures smooth performance under varying temperatures. Its chrome steel construction also handles high-speed rotations effortlessly.

Built for Heavy-Duty Use: 6308/C4W64 Bearing
For agricultural machinery, 6308/C4W64 Bearing excels in gearboxes and harvesters, thanks to its robust design and resistance to wear. The metric sizing ensures compatibility with a range of equipment from different manufacturers.

Automotive vs Industrial: Applications of 6308/C4W64 Bearing
In automotive systems, 6308/C4W64 Bearing supports components like fans and clutches, while in industrial settings, it’s ideal for conveyor belts and compressors. Its versatility makes it a go-to choice for both sectors.

Perfect Fit for Automation: 6308/C4W64 Bearing
6308/C4W64 Bearing works well in robotic arms and assembly lines, where precision and durability are key. The solid oil lubrication reduces friction, ensuring long-lasting performance even in high-use scenarios.
