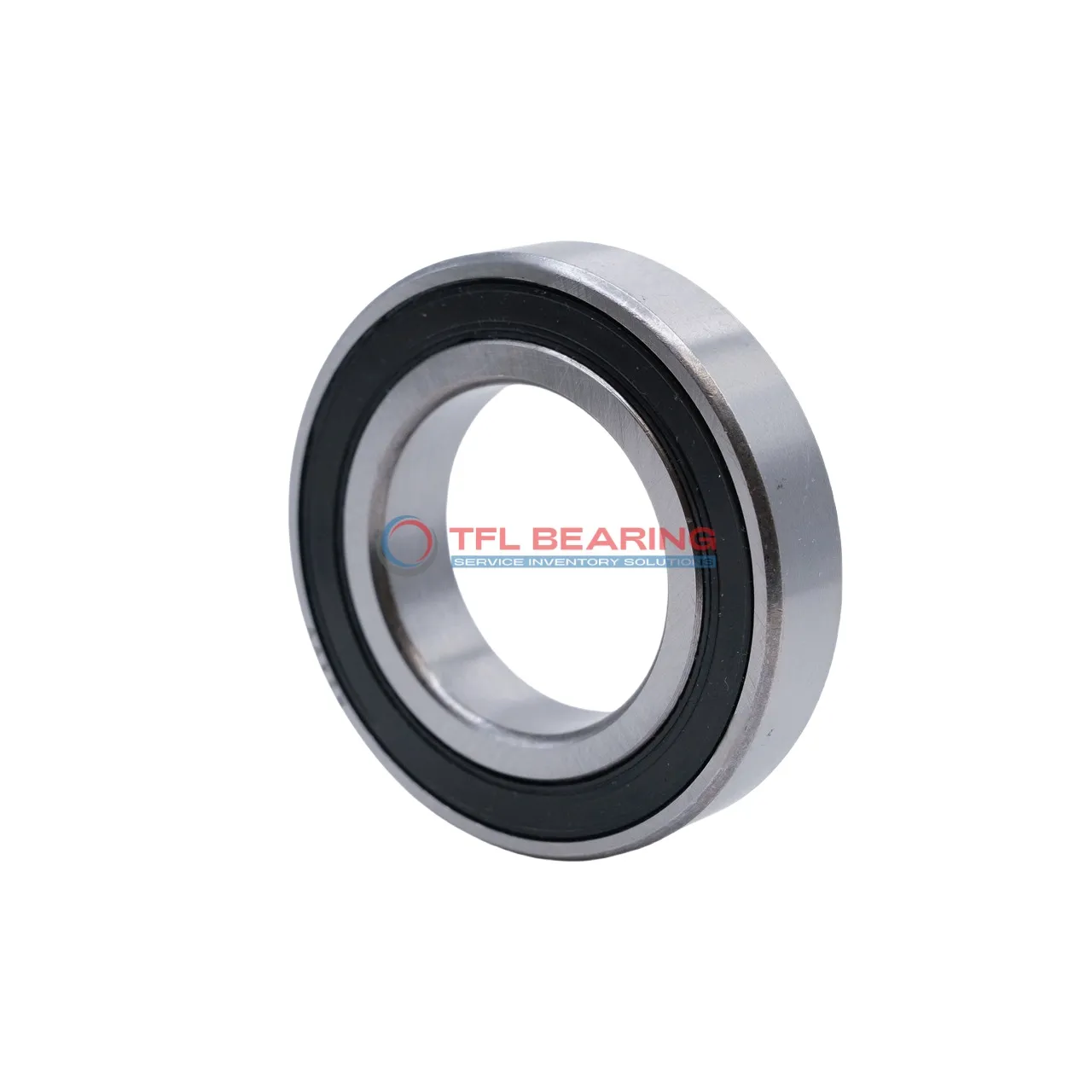

Single Row Deep Groove Ball Bearings 6307-2RS1/CNHS0VQ112

Single Row Deep Groove Ball Bearings 6307-2RS1/CNHS0VQ112

The 6307-2RS1 is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, made from sturdy chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage and balls ensure durability and long service life.

This bearing works well in temperatures from -30°C to 150°C, making it versatile for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 457g, it’s a robust choice for its size, compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307-2RS1/CNHS0VQ112
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
Single Row Deep Groove Ball Bearings 6307-2RS1/CNHS0VQ112 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6307-2RS1/CNHS0VQ112 Bearing

6307-2RS1/CNHS0VQ112 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 7509 lbf, making it suitable for various industrial applications.

The sealed design of 6307-2RS1/CNHS0VQ112 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 8,500 rpm, it ensures smooth operation in high-speed environments.

6307-2RS1/CNHS0VQ112 Bearing operates efficiently within a temperature range of -30°C to 150°C.
Its chrome steel cage maintains ball alignment, reducing friction and extending service life.

The ABEC 1 tolerance class ensures reliable precision for general applications.
This bearing is interchangeable with SKF models, providing flexibility in replacements.

Application

Common Applications of 6307-2RS1/CNHS0VQ112 Bearing
In industrial machinery, 6307-2RS1/CNHS0VQ112 Bearing is a reliable choice for radial load handling, often used in pumps and electric motors. Its sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 6307-2RS1/CNHS0VQ112 Bearing Used?
You’ll find 6307-2RS1/CNHS0VQ112 Bearing in automotive applications like alternators and wheel hubs, where its durability and sealed construction are key. The chrome steel components ensure it can handle everyday wear and tear.

Built for Heavy-Duty Use: 6307-2RS1/CNHS0VQ112 Bearing
For automation systems, 6307-2RS1/CNHS0VQ112 Bearing works well in conveyor belts and robotic arms, thanks to its smooth operation and radial load capacity. The ABEC 1 tolerance ensures consistent performance in repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6307-2RS1/CNHS0VQ112 Bearing
In household appliances like washing machines, 6307-2RS1/CNHS0VQ112 Bearing provides quiet and efficient performance. Its sealed design also makes it suitable for outdoor equipment exposed to varying weather conditions.
