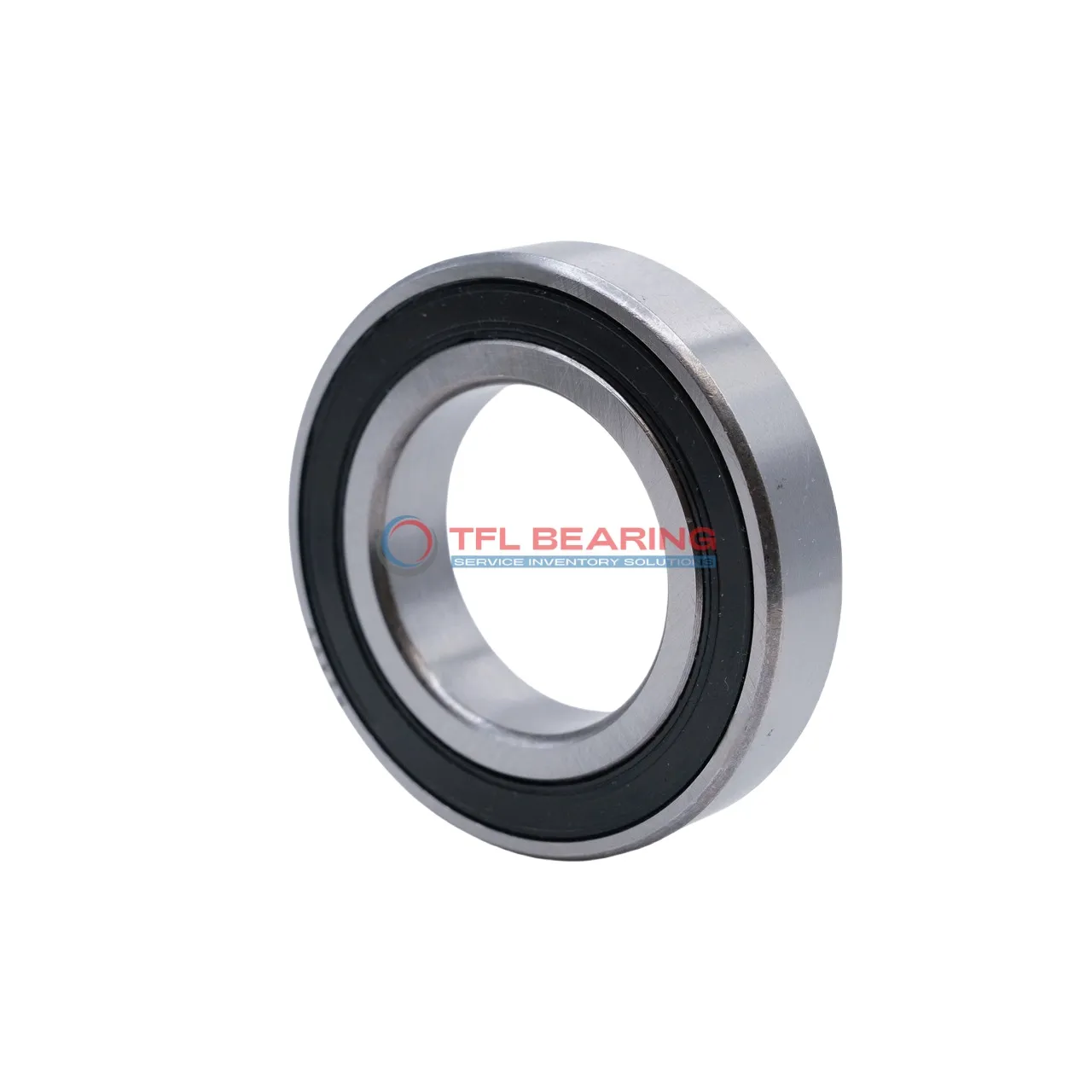

Single Row Deep Groove Ball Bearings 6307-2RS1/C4GJN8

Single Row Deep Groove Ball Bearings 6307-2RS1/C4GJN8

The 6307-2RS1/C4GJN8 is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel for durability. It supports radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Sealed on both sides, it keeps contaminants out and lubrication in, reducing maintenance needs. The chrome steel cage adds strength, while the C4 radial clearance ensures reliable performance under varying temperatures.

This bearing is interchangeable with SKF models, making replacements straightforward. It’s suitable for electric motors, pumps, or gearboxes where radial loads are common.

Weighing 457g, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307-2RS1/C4GJN8
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price（$） 9.468
Single Row Deep Groove Ball Bearings 6307-2RS1/C4GJN8 dimension drawing
Download DWG Download PDF

Features

How Does 6307-2RS1/C4GJN8 Bearing Reduce Friction?

6307-2RS1/C4GJN8 Bearing features a sealed design, preventing contaminants from entering and reducing friction.

Its chrome steel construction ensures smooth operation, even under high radial loads of up to 7509 lbf.

The single-row deep groove design enhances efficiency, making it suitable for various applications.

With a maximum speed of 8,500 rpm, it offers reliable performance without compromising on durability.

Application

Industrial Uses of 6307-2RS1/C4GJN8 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 6307-2RS1/C4GJN8 Bearing Used?
You’ll often find 6307-2RS1/C4GJN8 Bearing in automotive applications such as alternators and wheel hubs. Its radial load capacity makes it reliable for everyday driving conditions.

Perfect Fit for Automation: 6307-2RS1/C4GJN8 Bearing
In automated systems, 6307-2RS1/C4GJN8 Bearing works well in conveyor belts and robotic arms. The C4 clearance allows for smooth operation even under varying temperatures.

Light-Duty vs Heavy-Duty: Best Uses for 6307-2RS1/C4GJN8 Bearing
For light-duty tasks like household fans, 6307-2RS1/C4GJN8 Bearing offers quiet performance. In heavier applications like agricultural equipment, it handles radial loads with ease.

Medical vs Industrial: Where 6307-2RS1/C4GJN8 Bearing Excels
While not typically used in medical devices, 6307-2RS1/C4GJN8 Bearing shines in industrial settings like compressors. Its sealed design reduces maintenance needs in dusty environments.
