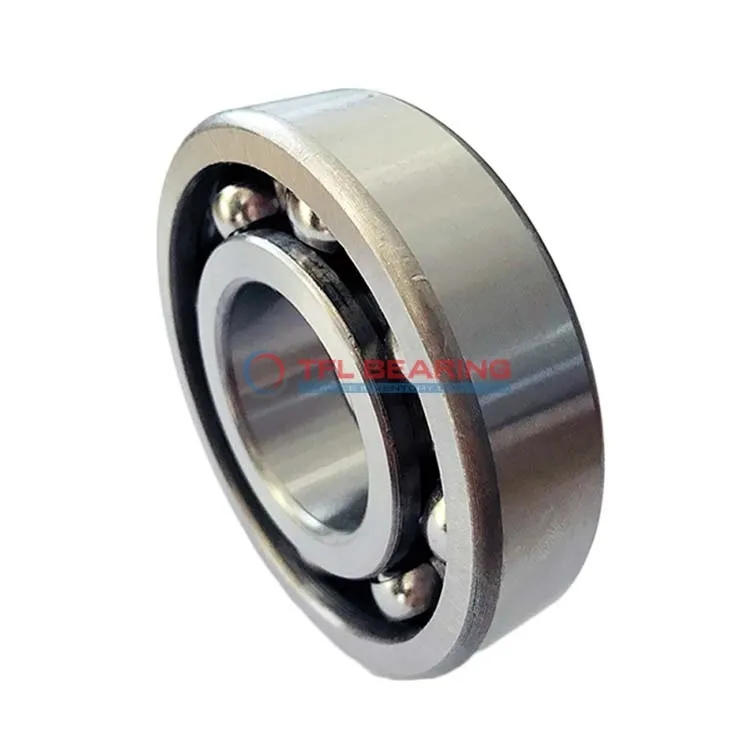

Single Row Deep Groove Ball Bearings 6305

Single Row Deep Groove Ball Bearings 6305

The 6305 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 232g, it’s a lightweight yet robust option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
  • price（$） 5.211
Single Row Deep Groove Ball Bearings 6305 dimension drawing
Download DWG Download PDF

Features

How Does 6305 Bearing Reduce Friction?

6305 Bearing features a deep groove design, which helps distribute loads evenly and reduces friction during operation.
The chrome steel construction ensures durability while maintaining smooth performance under radial loads.

With a dynamic radial load capacity of 4631 lbf, it handles demanding applications with ease.
The stainless steel cage keeps the balls aligned, minimising wear and extending the bearing’s life.

Its open design allows for easy lubrication, ensuring consistent performance over time.
The 6305 Bearing operates efficiently at speeds up to 11,000 rpm, making it suitable for various industrial uses.

Application

Industrial Uses of 6305 Bearing
The 6305 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity and durability are key. Its open design simplifies lubrication, making maintenance straightforward in demanding environments.

Where Is 6305 Bearing Used?
You’ll often spot the 6305 Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable performance under radial loads. The metric sizing ensures compatibility with a variety of vehicle designs.

Built for Versatility: 6305 Bearing
In automation systems, the 6305 Bearing supports smooth operation in conveyor belts and robotic arms. Its chrome steel construction ensures long-lasting performance even in high-speed scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 6305 Bearing
For light-duty tasks like household fans, the 6305 Bearing offers quiet and efficient operation. In heavier industrial settings, it handles radial loads with ease, proving its adaptability across different applications.

Medical vs Industrial: Where 6305 Bearing Excels
While the 6305 Bearing isn’t typically used in medical devices, it shines in industrial equipment like compressors and gearboxes. Its robust design and temperature tolerance make it a dependable choice for machinery.
