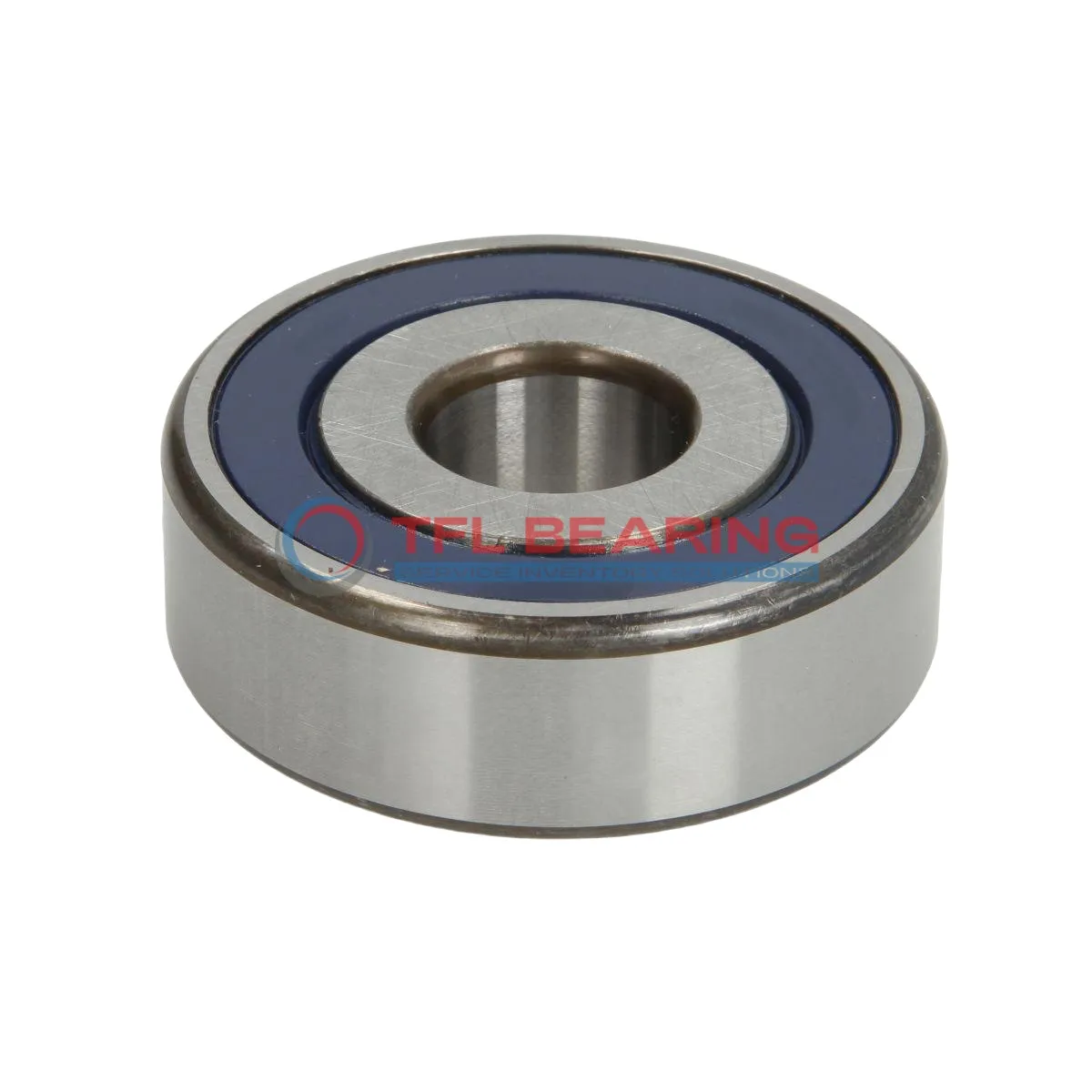

Single Row Deep Groove Ball Bearings 6305-2RS1/C3WT

Single Row Deep Groove Ball Bearings 6305-2RS1/C3WT

The 6305-2RS1/C3WT is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective replacement option. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing just 232g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
Single Row Deep Groove Ball Bearings 6305-2RS1/C3WT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305-2RS1/C3WT Bearing

6305-2RS1/C3WT Bearing is designed with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load rating of 4631 lbf ensures reliable performance in various applications.

The sealed design of 6305-2RS1/C3WT Bearing protects against dust and moisture, extending its service life.
It operates smoothly within a temperature range of -30°C to 120°C, making it versatile for different environments.

With a maximum speed of 11,000 rpm, 6305-2RS1/C3WT Bearing balances efficiency and durability.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Common Applications of 6305-2RS1/C3WT Bearing
This bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 clearance allows for thermal expansion, making it suitable for varying operating conditions.

In automotive applications, 6305-2RS1/C3WT Bearing fits well in wheel hubs and alternators, providing reliable radial load support. The chrome steel construction ensures durability even under frequent use.

For home appliances like washing machines, 6305-2RS1/C3WT Bearing offers smooth and quiet operation. Its sealed feature protects against dust and moisture, extending the lifespan of the appliance.

Automation systems benefit from 6305-2RS1/C3WT Bearing in robotic arms and conveyor belts, where precision and reliability are key. The metric sizing ensures compatibility with standard components.

Medical devices such as dental drills use 6305-2RS1/C3WT Bearing for its consistent performance and low maintenance. The sealed design is particularly useful in sterile environments.
