Single Row Deep Groove Ball Bearings 6000-2RSH/W64

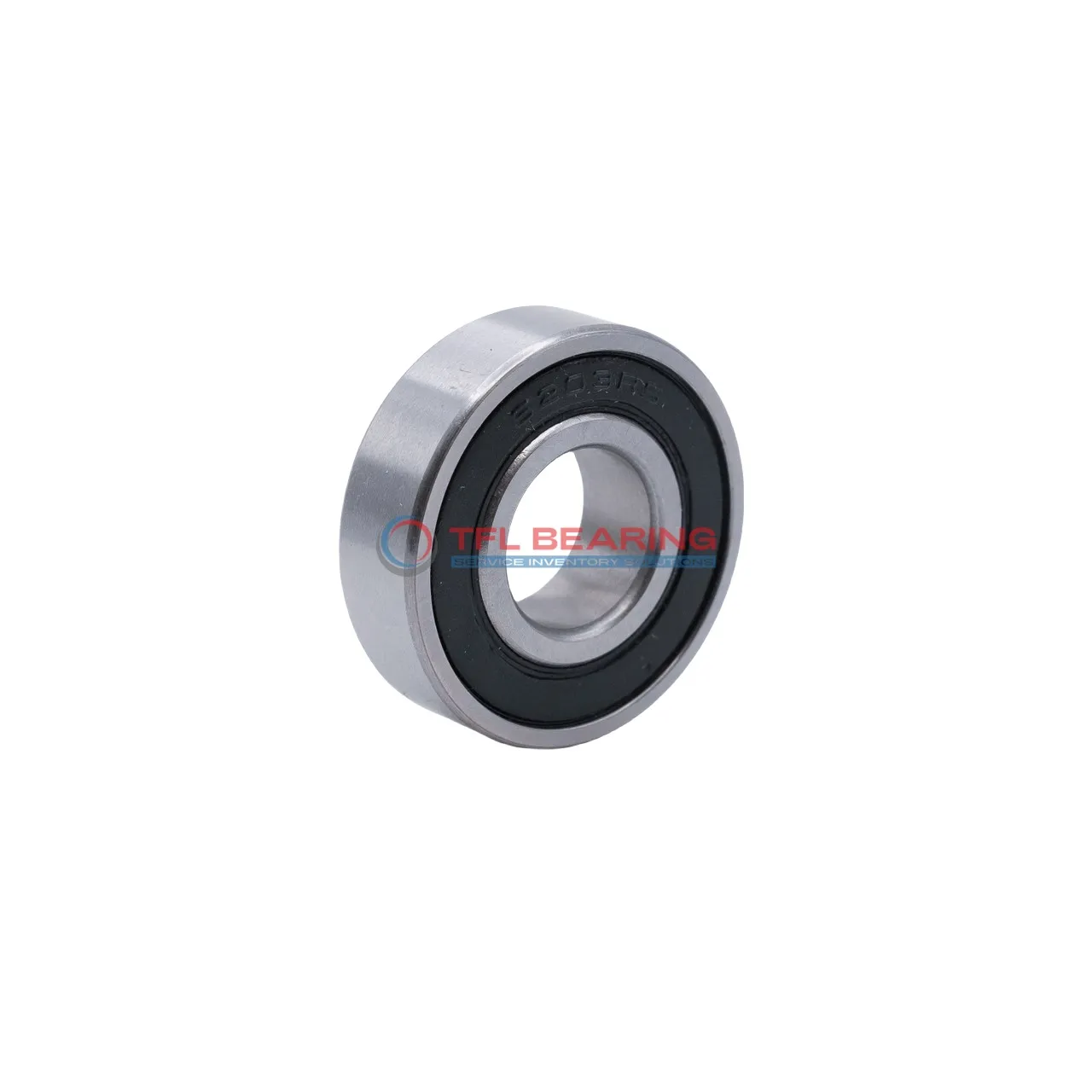

Single Row Deep Groove Ball Bearings 6000-2RSH/W64

The 6000-2RSH/W64 is a compact single-row deep groove ball bearing with a 10mm bore and 26mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1023 lbf and spins smoothly at speeds up to 31,000 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds strength and longevity, making it reliable for continuous use.

With a temperature range of -30°C to 120°C, this bearing suits various environments. It’s interchangeable with SKF models, offering a cost-effective alternative.

Ideal for small motors, pumps, or appliances where space is limited but performance matters. Compliant with RoHS and REACH standards for safe use. Weighing just 19g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RSH/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
  • price（$） 7.452
Single Row Deep Groove Ball Bearings 6000-2RSH/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6000-2RSH/W64 Bearing

6000-2RSH/W64 Bearing is designed for radial loads, with a dynamic radial load capacity of 1023 lbf.
Its sealed construction keeps out contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.
With a maximum speed of 31,000 rpm, it offers reliable performance for high-speed applications.

6000-2RSH/W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its compact size (10 mm×26 mm×8 mm) makes it suitable for space-constrained applications.

Application

Industrial Uses of 6000-2RSH/W64 Bearing
6000-2RSH/W64 Bearing is commonly used in small industrial motors and pumps, where its sealed design keeps contaminants out and extends service life. The solid oil lubrication ensures smooth operation even in dusty environments.

What Makes 6000-2RSH/W64 Bearing a Preferred Choice?
In automotive applications like alternators and small gearboxes, 6000-2RSH/W64 Bearing offers reliable radial load support. Its compact size and metric dimensions make it easy to integrate into various vehicle designs.

Perfect Fit for Automation: 6000-2RSH/W64 Bearing
This bearing works well in robotic joints and small conveyor systems, thanks to its low maintenance requirements and consistent performance. The chrome steel construction provides good wear resistance for long-term use.

Medical vs Industrial: Where 6000-2RSH/W64 Bearing Excels
While suitable for small medical devices like dental tools, 6000-2RSH/W64 Bearing truly shines in industrial settings where sealed bearings are needed. Its wide temperature range allows use in different operating conditions.

How Does 6000-2RSH/W64 Bearing Support High-Speed Operations?
With a maximum speed of 31,000 rpm, this bearing is ideal for small electric motors in appliances and power tools. The ABEC 1 tolerance ensures decent precision for most general applications.
