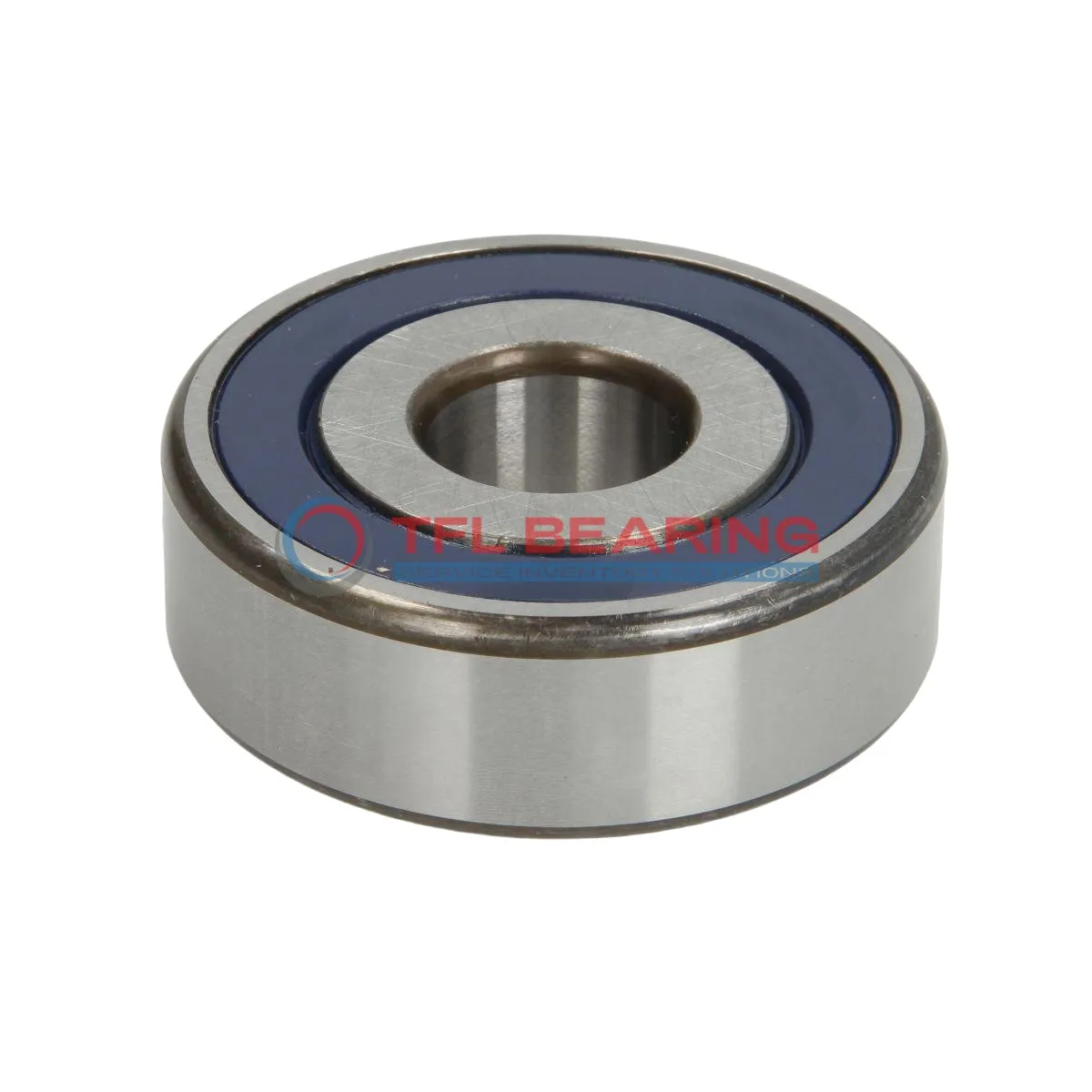

Single Row Deep Groove Ball Bearings 6305-2RS/C3 GJN

Single Row Deep Groove Ball Bearings 6305-2RS/C3 GJN

The 6305-2RS/C3 GJN is a sealed single row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Perfect for electric motors, pumps, or gearboxes where consistent performance is needed.

Weighing 232g, it’s a sturdy yet compact choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS/C3 GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
  • price（$） 5.022
Single Row Deep Groove Ball Bearings 6305-2RS/C3 GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305-2RS/C3 GJN Bearing

6305-2RS/C3 GJN Bearing is designed for radial loads, with a dynamic radial load capacity of 4631 lbf.

Its sealed construction protects against dust and moisture, ensuring reliable operation in various environments.

The chrome steel rings and balls provide durability, while the C3 clearance allows for thermal expansion.

With a maximum speed of 11,000 rpm, it offers a balance of performance and longevity.

Application

Common Applications of 6305-2RS/C3 GJN Bearing
The 6305-2RS/C3 GJN Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 radial clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6305-2RS/C3 GJN Bearing fits well in wheel hubs and alternators, thanks to its robust chrome steel construction. The sealed feature also makes it suitable for dusty or wet environments.

For household appliances like washing machines, 6305-2RS/C3 GJN Bearing offers quiet and smooth operation. Its durability and low maintenance needs make it a cost-effective choice for long-term use.

The 6305-2RS/C3 GJN Bearing is also found in small agricultural equipment, where its ability to handle radial loads is essential. The metric sizing ensures compatibility with a variety of machinery parts.
