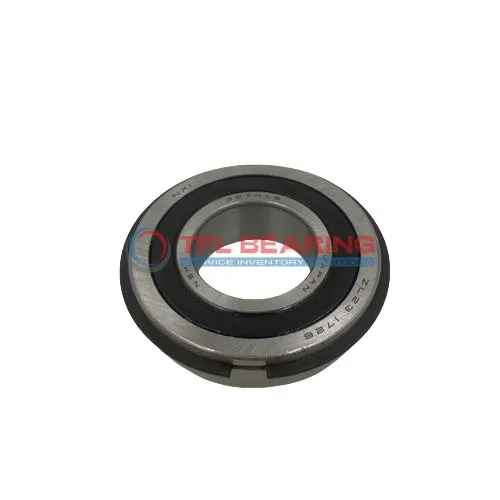

Snap Ring Groove Ball Bearings 6306-2RS1NR/C3

Snap Ring Groove Ball Bearings 6306-2RS1NR/C3

The 6306-2RS1NR/C3 is a sealed snap ring groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its sealed design keeps dirt out and grease in, while the snap ring ensures secure fitting. The C3 radial clearance allows for slight misalignment or thermal expansion.

This bearing suits moderate-speed applications like electric motors or conveyor systems. It performs reliably in temperatures from -30°C to 120°C.

Weighing 346g, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS1NR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 78.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9600 rpm
  • Weight 346 g
  • Price（$） 10.83
Snap Ring Groove Ball Bearings 6306-2RS1NR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6306-2RS1NR/C3 Bearing Reduce Friction?

6306-2RS1NR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design protects against contaminants, maintaining performance in various conditions.
With a dynamic radial load capacity of 6002 lbf, it handles demanding radial loads efficiently.
The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.

Application

Common Applications of 6306-2RS1NR/C3 Bearing
In industrial machinery, 6306-2RS1NR/C3 Bearing is widely used in conveyor systems and pumps, where its sealed design protects against dust and debris. The snap ring feature ensures secure mounting, reducing maintenance downtime.

Where Is 6306-2RS1NR/C3 Bearing Used?
You’ll often find 6306-2RS1NR/C3 Bearing in automotive applications like electric motors and gearboxes, thanks to its reliable radial load handling. Its C3 clearance also accommodates thermal expansion in high-speed scenarios.

Built for Heavy-Duty Use: 6306-2RS1NR/C3 Bearing
This bearing excels in agricultural equipment, such as tractors and harvesters, where its chrome steel construction withstands harsh conditions. The sealed design keeps contaminants out, extending service life.

Medical vs Industrial: Where 6306-2RS1NR/C3 Bearing Excels
While 6306-2RS1NR/C3 Bearing isn’t typical for medical devices, it’s ideal for industrial tools like compressors and generators. Its snap ring simplifies installation, saving time during assembly.

Perfect Fit for Automation: 6306-2RS1NR/C3 Bearing
In robotic arms and automated guided vehicles, 6306-2RS1NR/C3 Bearing offers smooth motion and low friction. The sealed design ensures consistent performance even in dusty environments.
