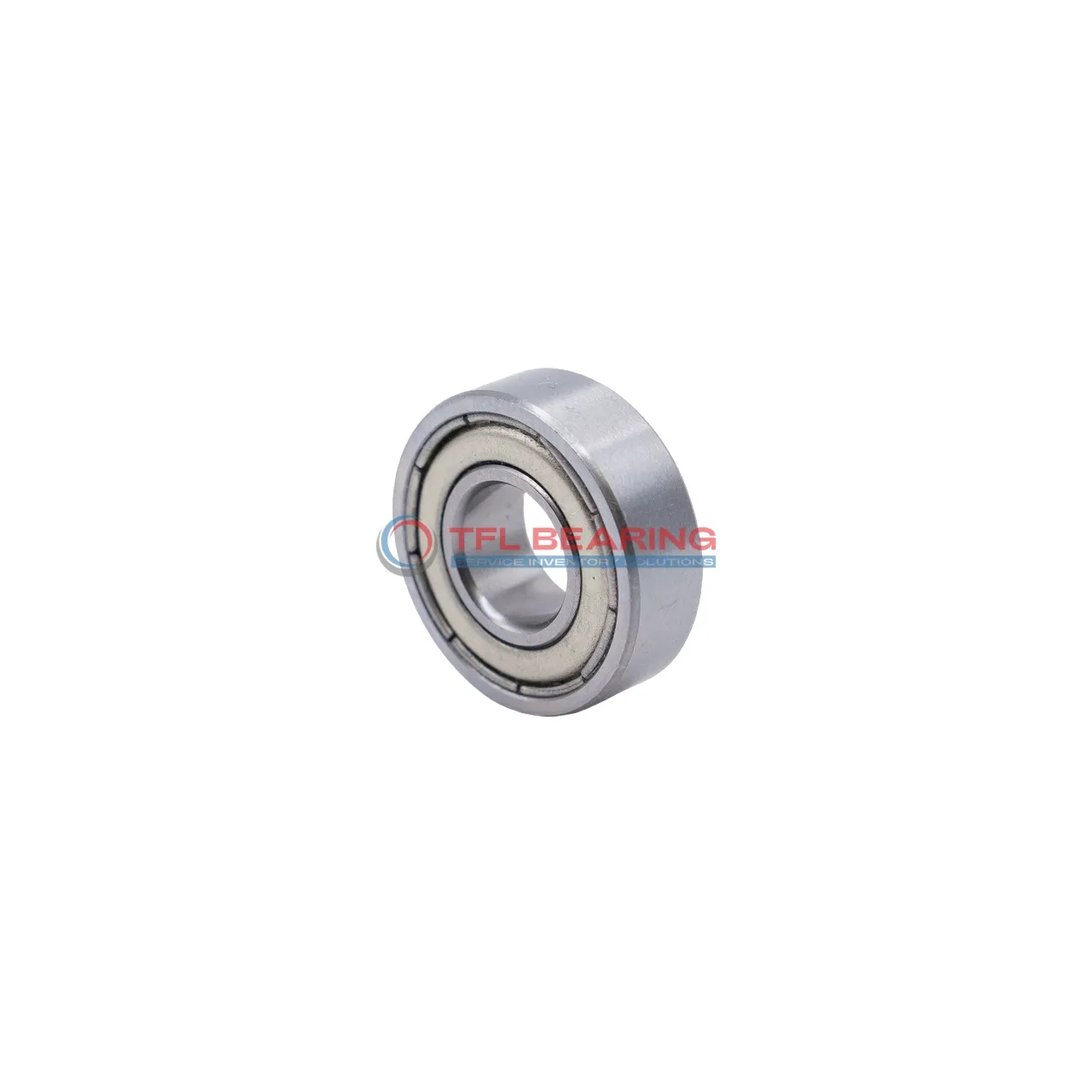

Single Row Deep Groove Ball Bearings 6304-Z/C4

Single Row Deep Groove Ball Bearings 6304-Z/C4

The 6304-Z/C4 is a single-row deep groove ball bearing with a 20mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3574 lbf and operates smoothly at speeds up to 14,000 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication. The chrome steel cage enhances durability, making it suitable for long-term use in various conditions.

This bearing fits well in applications like electric motors or pumps where radial loads are common. It works reliably in temperatures from -30°C to 120°C.

Weighing just 144g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for replacements, especially as it’s interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6304-Z/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 1765 lbf
  • Max Speed 14000 rpm
  • Weight 144 g
  • price（$） 4.032
Single Row Deep Groove Ball Bearings 6304-Z/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6304-Z/C4 Bearing

6304-Z/C4 Bearing is built with chrome steel rings and balls, offering reliable radial load handling.
Its dynamic radial load capacity reaches 3574 lbf, making it suitable for various applications.

The shielded design protects against contaminants, ensuring smoother operation.
With a maximum speed of 14,000 rpm, it balances performance and durability.

6304-Z/C4 Bearing operates efficiently in temperatures from -30°C to 120°C.
Its C4 radial clearance provides flexibility for different operating conditions.

Application

Industrial Uses of 6304-Z/C4 Bearing
The 6304-Z/C4 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

Where Is 6304-Z/C4 Bearing Used?
You’ll often find 6304-Z/C4 Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable radial load handling. The C4 clearance makes it suitable for higher temperature operations.

Built for Versatility: 6304-Z/C4 Bearing
This bearing works well in household appliances like washing machines, where smooth rotation is key. Its metric sizing ensures compatibility with a variety of European and Asian designs.

Automotive vs Industrial: Applications of 6304-Z/C4 Bearing
In automotive systems, 6304-Z/C4 Bearing supports components like gearboxes, while in industrial settings, it’s ideal for conveyor systems. The ABEC 1 tolerance offers a good balance of precision and cost.

Key Fields for 6304-Z/C4 Bearing
Medical devices like centrifuges benefit from 6304-Z/C4 Bearing’s consistent performance and low maintenance. The shielded design also helps in keeping the internal components clean.
