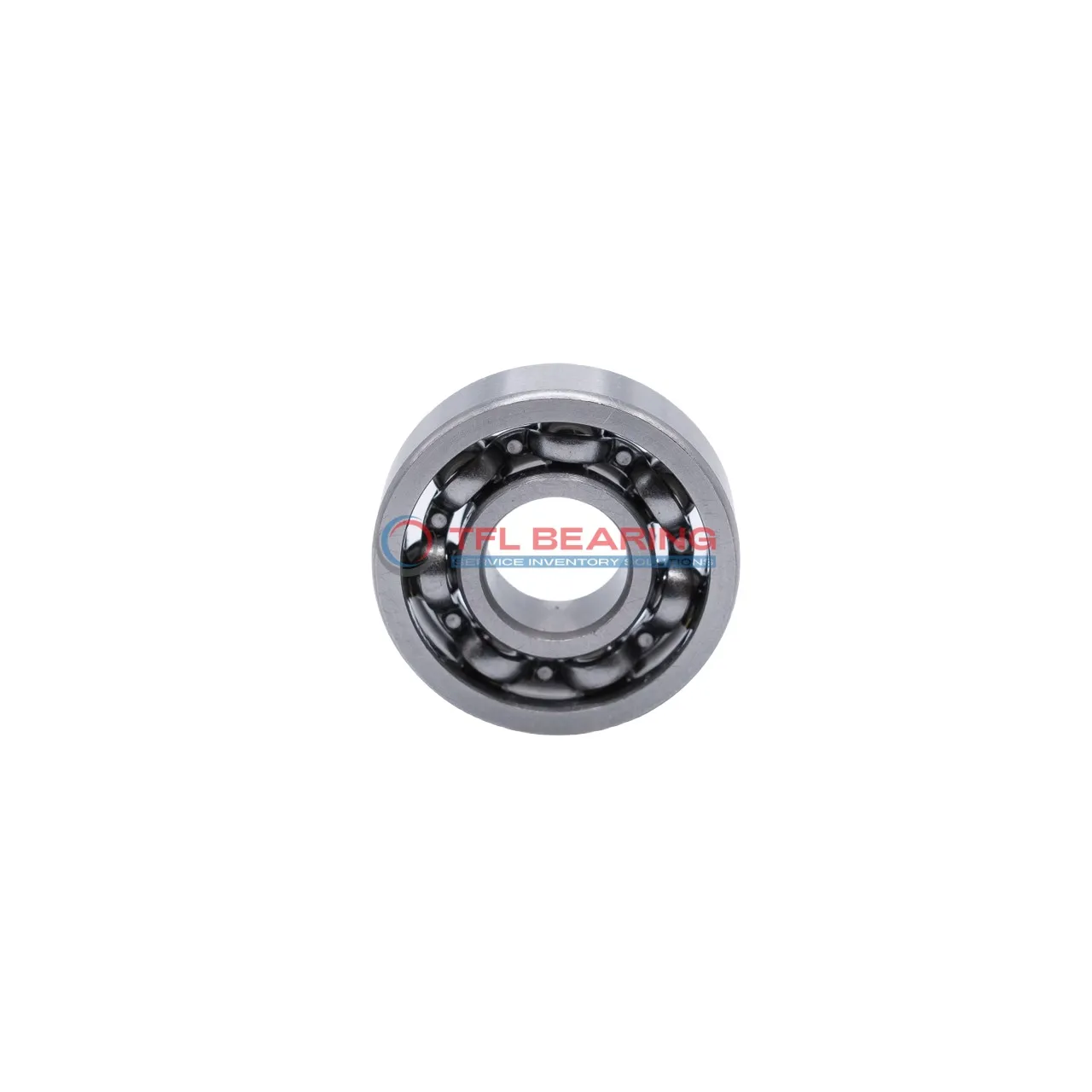

Single Row Deep Groove Ball Bearings 6302 TN9/C3

Single Row Deep Groove Ball Bearings 6302 TN9/C3

The 6302 TN9/C3 is a single-row deep groove ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17000 RPM.

Its open design and nylon cage reduce friction, making it efficient for various applications. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s suitable for electric motors, pumps, or small machinery where reliable radial load support is needed.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

The C3 radial clearance provides flexibility in high-speed or high-temperature environments. Easy to install and maintain, it’s a practical choice for engineers and repairers alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302 TN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
  • price（$） 2.502
Single Row Deep Groove Ball Bearings 6302 TN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6302 TN9/C3 Bearing

6302 TN9/C3 Bearing is built with chrome steel rings and balls, offering reliable radial load capacity up to 2563 lbf.

Its nylon cage ensures smooth operation and reduces friction, making it suitable for high-speed applications.

With a maximum speed of 17,000 rpm, it delivers efficient performance in various industrial settings.

The C3 radial clearance allows for thermal expansion, ensuring stability in temperatures from -30° to 120°C.

Application

Common Applications of 6302 TN9/C3 Bearing
In industrial settings, 6302 TN9/C3 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures smooth operation. The open design and C3 clearance make it suitable for applications with moderate thermal expansion.

Where Is 6302 TN9/C3 Bearing Used?
You’ll often find 6302 TN9/C3 Bearing in automotive components like alternators and water pumps, thanks to its reliable performance under radial loads. Its nylon cage reduces friction, making it a quiet option for vehicle systems.

Built for Versatility: 6302 TN9/C3 Bearing
For household appliances like washing machines, 6302 TN9/C3 Bearing offers durability and low maintenance. The chrome steel construction ensures it handles everyday use without wear issues.

Light-Duty vs Heavy-Duty: Best Uses for 6302 TN9/C3 Bearing
In light-duty applications like office equipment, 6302 TN9/C3 Bearing provides precise motion control. For heavier tasks, it’s also found in conveyor systems, where its C3 clearance accommodates slight misalignments.
