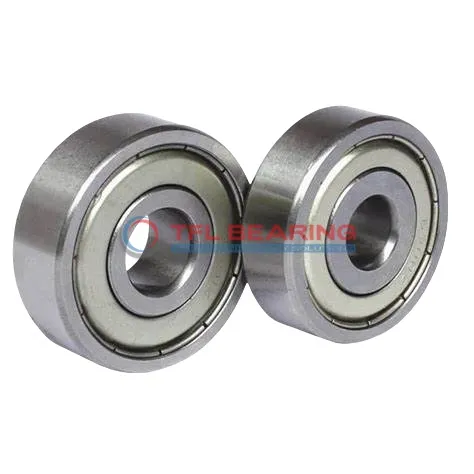

Single Row Deep Groove Ball Bearings 6302-2Z/C3GJN

The 6302-2Z/C3GJN is a single-row deep groove ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Shielded on both sides, it keeps dirt out while maintaining smooth operation. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors or small machinery where consistent radial load support is needed.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6302-2Z/C3GJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 15 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 42 mm
Outer Dia Tolerance -0.011mm to 0
Width 13 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2563 lbf
Static Radial Load 1225 lbf
Max Speed 17000 rpm
Weight 82 g
price（$） 2.601

Single Row Deep Groove Ball Bearings 6302-2Z/C3GJN dimension drawing

Download DWG Download PDF

Features

Performance Features of 6302-2Z/C3GJN Bearing

6302-2Z/C3GJN Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2563 lbf, making it suitable for various applications.
The shielded design helps protect against dust and debris, ensuring smoother operation.
With a maximum speed of 17,000 rpm, it delivers both durability and efficiency.

Application

Industrial Uses of 6302-2Z/C3GJN Bearing
6302-2Z/C3GJN Bearing is commonly used in conveyor systems and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6302-2Z/C3GJN Bearing Used?
You’ll often find 6302-2Z/C3GJN Bearing in household appliances like washing machines and fans, thanks to its reliable performance and quiet operation. Its chrome steel construction also makes it durable for long-term use.

Perfect Fit for Automation: 6302-2Z/C3GJN Bearing
6302-2Z/C3GJN Bearing works well in robotic arms and small machinery, where precision and low maintenance are key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Automotive vs Industrial: Applications of 6302-2Z/C3GJN Bearing
In cars, 6302-2Z/C3GJN Bearing fits well in alternators and small gearboxes, while in factories, it’s great for pumps and light-duty machinery. Its versatility makes it a handy choice across different settings.
