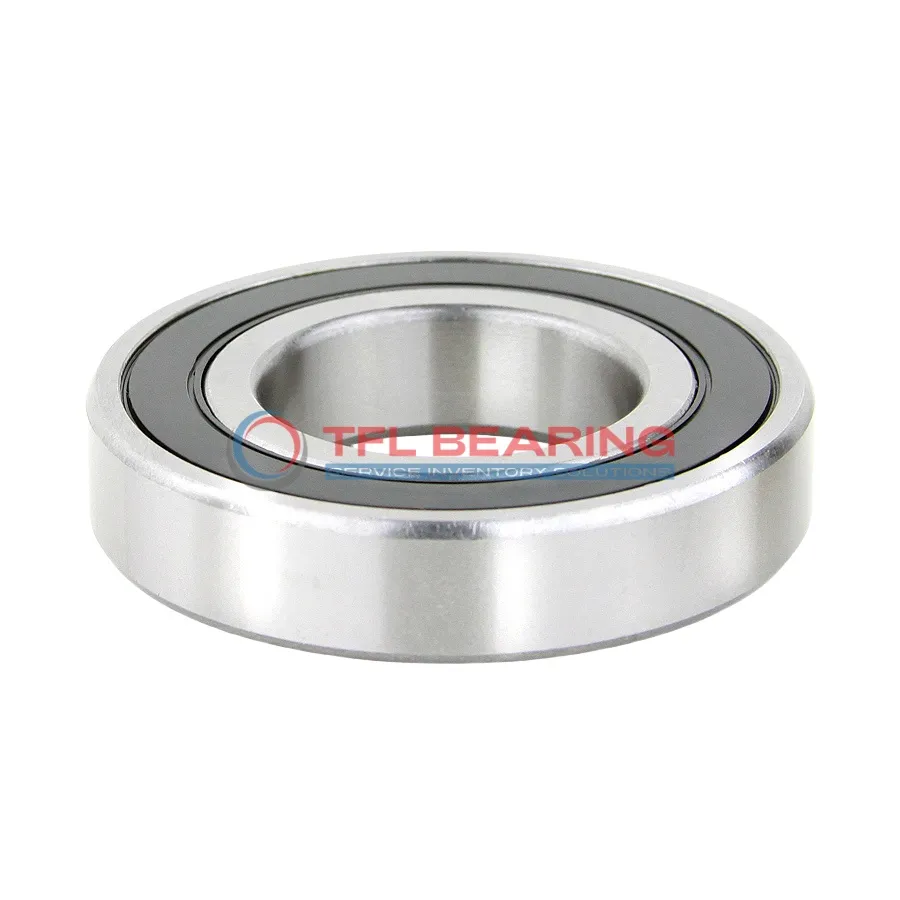

Single Row Deep Groove Ball Bearings 6302-2RS1/VM045

Single Row Deep Groove Ball Bearings 6302-2RS1/VM045

The 6302-2RS1/VM045 is a single-row deep groove ball bearing with a 15mm bore and 42mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 82g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-2RS1/VM045
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
Single Row Deep Groove Ball Bearings 6302-2RS1/VM045 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6302-2RS1/VM045 Bearing

6302-2RS1/VM045 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 2563 lbf, making it suitable for various applications.
The sealed design protects against dust and moisture, enhancing durability.
With a maximum speed of 17,000 rpm, it ensures smooth and efficient operation.

Application

Common Applications of 6302-2RS1/VM045 Bearing
This bearing is widely used in electric motors, thanks to its sealed design which keeps out dust and moisture. It’s a reliable choice for both small appliances and industrial motor applications.

In conveyor systems, 6302-2RS1/VM045 Bearing handles radial loads smoothly, ensuring consistent performance. Its chrome steel construction offers durability even in demanding environments.

For household appliances like washing machines, this bearing provides quiet and efficient operation. The sealed design helps extend its lifespan by protecting against contaminants.

Where Is 6302-2RS1/VM045 Bearing Used?
You’ll often find this bearing in automotive components such as alternators and water pumps. Its ability to handle moderate speeds makes it a versatile option.

The sealed construction also makes it suitable for agricultural machinery, where dust and debris are common. It’s a practical solution for equipment that operates in tough conditions.

Built for Versatility: 6302-2RS1/VM045 Bearing
This bearing works well in small industrial fans, offering a balance of load capacity and speed. Its compact size makes it ideal for space-constrained applications.

In power tools, 6302-2RS1/VM045 Bearing ensures smooth rotation under varying loads. The sealed design helps maintain performance over time, even with frequent use.
