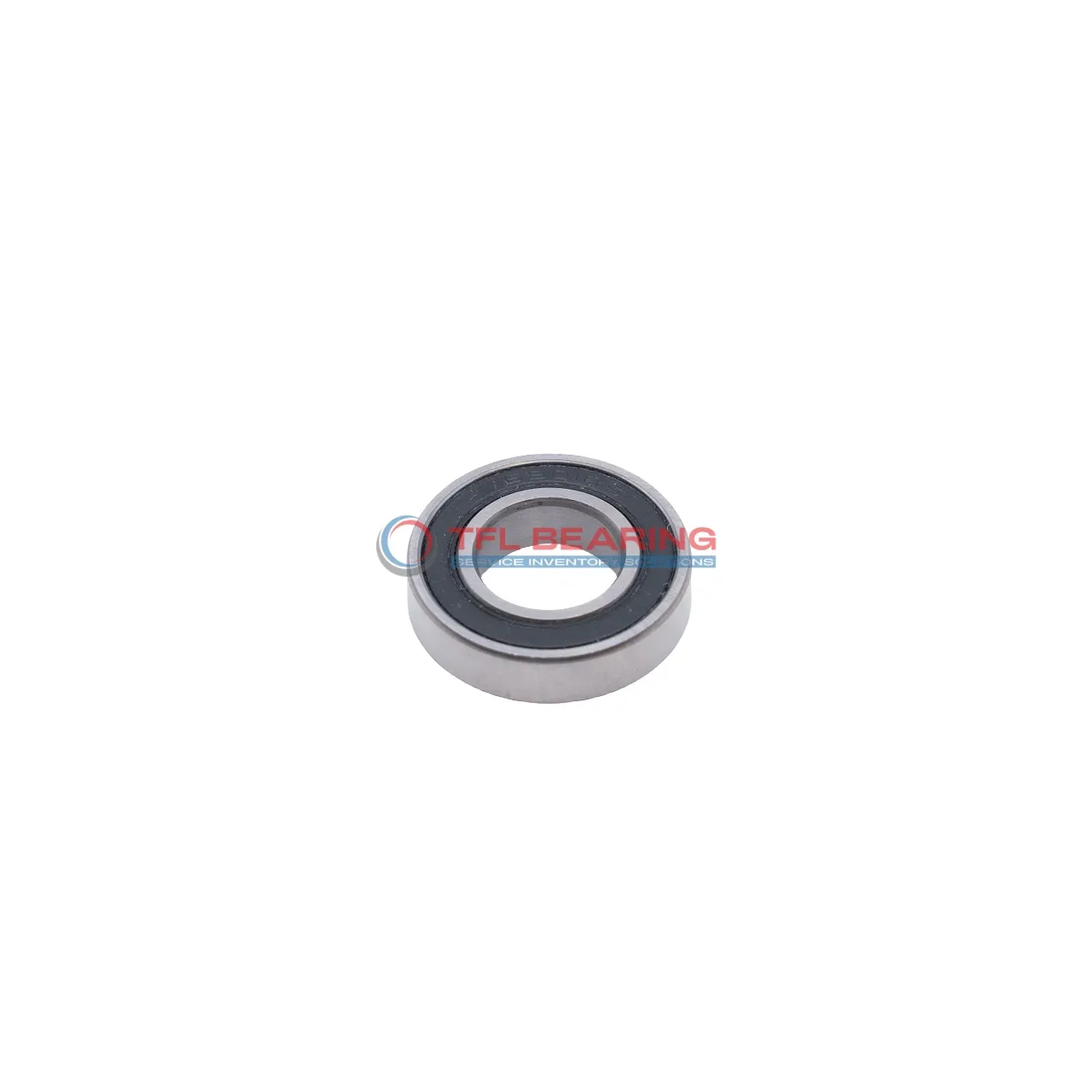

Single Row Deep Groove Ball Bearings 6301-2RSH/C3

Single Row Deep Groove Ball Bearings 6301-2RSH/C3

The 6301-2RSH/C3 is a compact single-row deep groove ball bearing, measuring 12mm by 37mm by 12mm, crafted from durable chrome steel. It handles radial loads up to 2181 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing just 60g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6301-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2181 lbf
  • Static Radial Load 944 lbf
  • Max Speed 20000 rpm
  • Weight 60 g
  • price（$） 3.339
Single Row Deep Groove Ball Bearings 6301-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6301-2RSH/C3 Bearing

6301-2RSH/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 2181 lbf, making it suitable for various applications.
The sealed design protects against dust and moisture, ensuring reliable operation.
With a maximum speed of 20,000 rpm, it delivers smooth and efficient performance.

Application

Common Applications of 6301-2RSH/C3 Bearing
In industrial machinery, 6301-2RSH/C3 Bearing is a reliable choice for radial load support, often seen in pumps and small electric motors. Its sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 6301-2RSH/C3 Bearing Used?
You’ll find 6301-2RSH/C3 Bearing in automotive applications like alternators and fans, where its C3 clearance accommodates thermal expansion. The chrome steel construction ensures durability even under continuous use.

Ideal for Precision: 6301-2RSH/C3 Bearing
This bearing works well in medical devices such as dental handpieces, thanks to its smooth operation and consistent performance. The sealed design also makes it suitable for sterile environments.

Automotive vs Industrial: Applications of 6301-2RSH/C3 Bearing
In cars, 6301-2RSH/C3 Bearing handles radial loads in components like water pumps, while in factories, it supports conveyor rollers. Its versatility and metric sizing make it a go-to for various settings.

Perfect Fit for Automation: 6301-2RSH/C3 Bearing
For robotic arms and small automation systems, 6301-2RSH/C3 Bearing offers quiet and efficient performance. The sealed design reduces maintenance needs, ideal for high-duty cycles.
