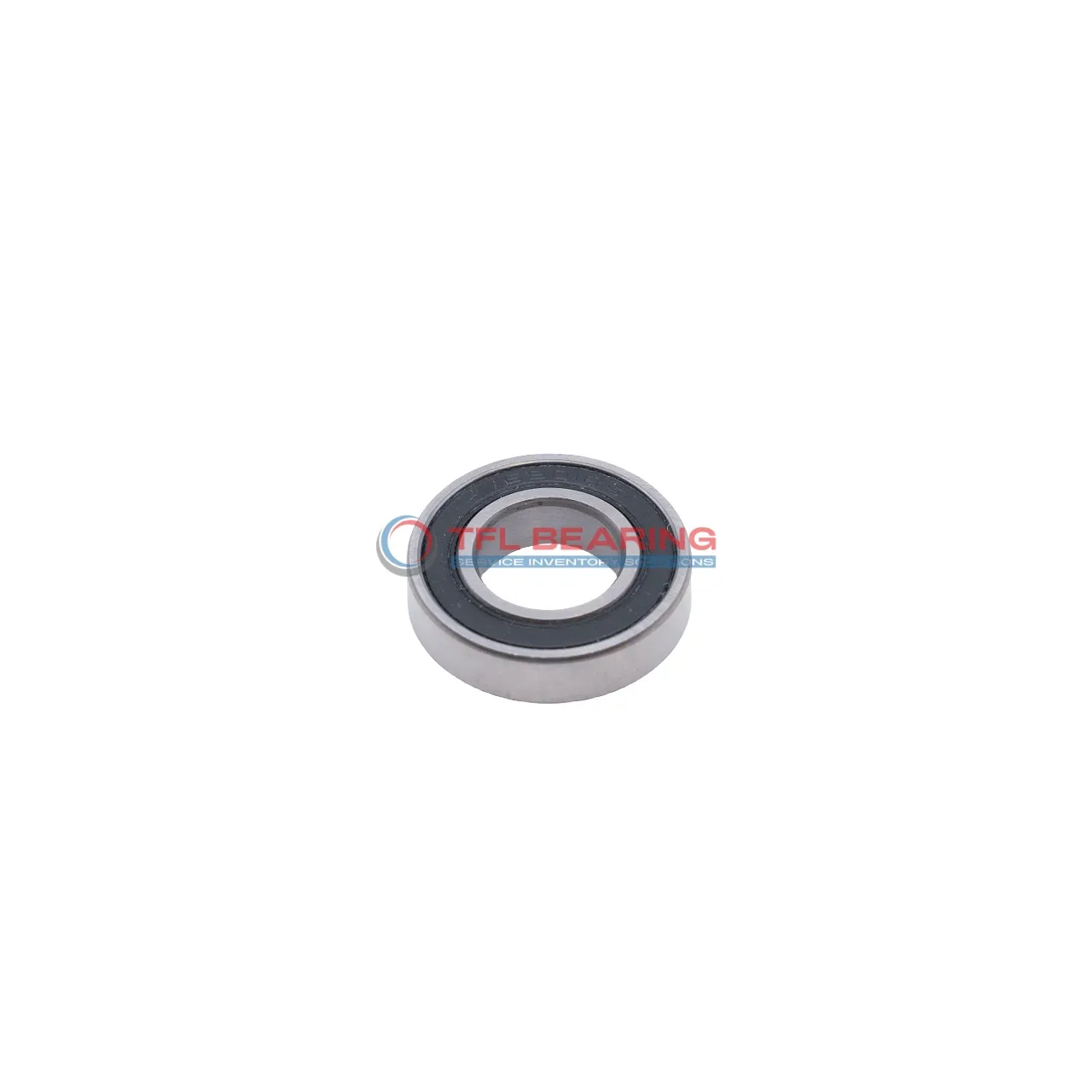

Single Row Deep Groove Ball Bearings 6301-2RS1/VM045

Single Row Deep Groove Ball Bearings 6301-2RS1/VM045

The 6301-2RS1/VM045 is a compact single-row deep groove ball bearing, measuring 12mm by 37mm by 12mm, crafted from durable chrome steel. It handles radial loads up to 2181 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds strength and longevity, suitable for various industrial uses.

This bearing works well in temperatures from -30°C to 120°C, fitting applications like electric motors or small machinery. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing just 60g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6301-2RS1/VM045
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2181 lbf
  • Static Radial Load 944 lbf
  • Max Speed 20000 rpm
  • Weight 60 g
Single Row Deep Groove Ball Bearings 6301-2RS1/VM045 dimension drawing
Download DWG Download PDF

Features

How Does 6301-2RS1/VM045 Bearing Reduce Friction?

6301-2RS1/VM045 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under radial loads up to 2181 lbf.
The single-row deep groove design enhances efficiency, making it suitable for high-speed applications.
With a maximum speed of 20,000 rpm, it delivers reliable performance in various conditions.

Application

Industrial Uses of 6301-2RS1/VM045 Bearing
The 6301-2RS1/VM045 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. Its chrome steel construction ensures durability even in demanding environments.

Where Is 6301-2RS1/VM045 Bearing Used?
You’ll often find the 6301-2RS1/VM045 Bearing in automotive applications such as alternators and small gearboxes. Its radial load capacity and sealed design make it a reliable choice for these components.

Built for Heavy-Duty Use: 6301-2RS1/VM045 Bearing
The 6301-2RS1/VM045 Bearing handles high speeds well, making it suitable for appliances like washing machines and fans. Its ABEC 1 tolerance ensures smooth operation in everyday devices.

Light-Duty vs Heavy-Duty: Best Uses for 6301-2RS1/VM045 Bearing
In light-duty applications like office printers, the 6301-2RS1/VM045 Bearing offers quiet performance. For heavier tasks, it’s also found in conveyor systems where reliability is key.
