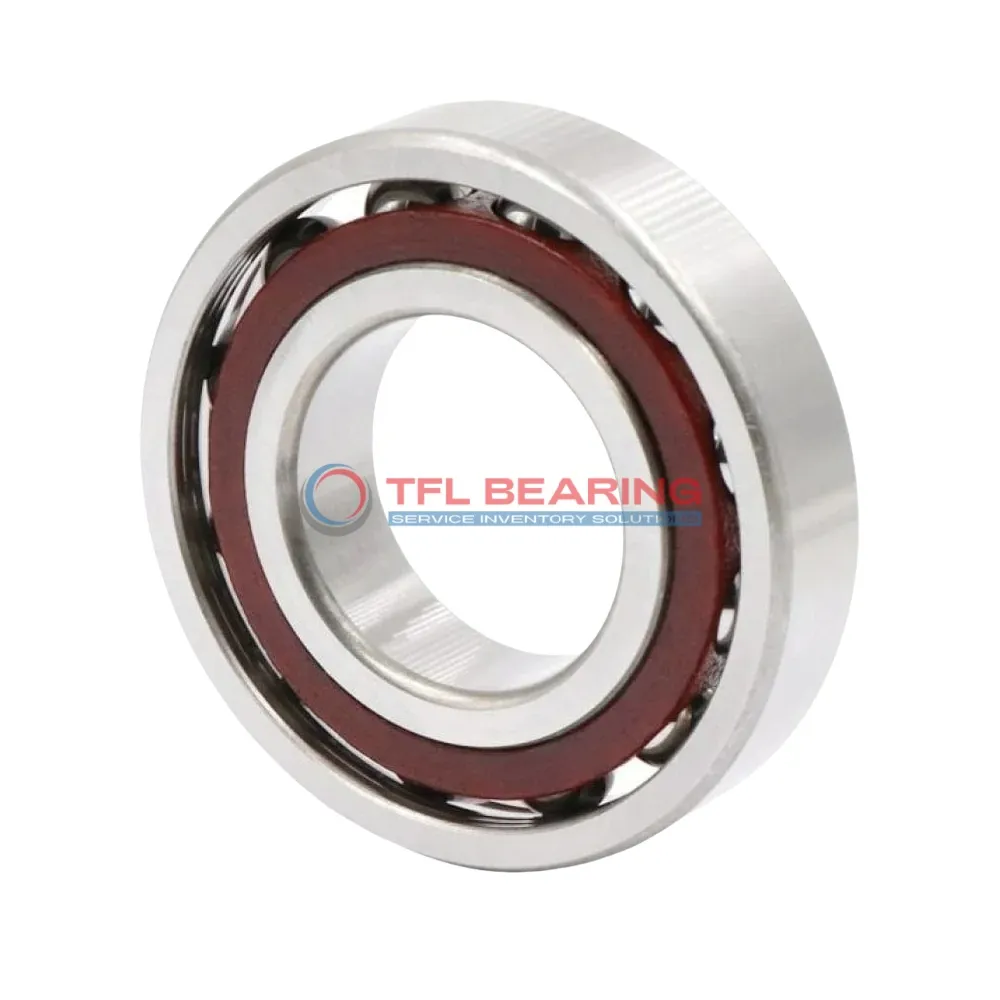

Super Precision Angular Contact Ball Bearings S7215 CDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7215 CDGA/HCP4A 75 mm × 130 mm × 25 mm Metric Sealed
Part number: S7215 CDGA/HCP4A
Super Precision Angular Contact Ball Bearings S7215 CDGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.004mm to 0
Width25 mm
Width Tolerance-0.2mm to 0
Ball Dia15.875 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load16,088 lbf
Static Radial Load13,950 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty17
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight1.06 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7215 CDGA/HCP4A is a super precision angular contact ball bearing with a 75mm bore and 130mm outer diameter, measuring 25mm in width. Made from chrome steel with ceramic balls, it offers smooth operation and durability.

With a 15° contact angle and extra-light preload, it handles radial loads up to 16088 lbf and spins at speeds up to 28,000 RPM. The sealed design keeps grease in place, reducing maintenance needs.

Its phenolic cage ensures quiet performance, while the P4A tolerance class guarantees high precision. Ideal for machine tools or high-speed spindles where accuracy is key.

Weighing 1.06kg, this bearing is suitable for paired arrangements like back-to-back or face-to-face setups. It works in temperatures from -30°C to 110°C, making it versatile for various industrial applications.

Features

Performance Features of S7215 CDGA/HCP4A Bearing

S7215 CDGA/HCP4A Bearing is designed with a 15° contact angle, offering precise angular contact performance.
Its chrome steel rings and ceramic balls ensure smooth operation under high-speed conditions.

The phenolic cage maintains ball alignment, reducing friction and enhancing durability.
With a dynamic radial load capacity of 16088 lbf, it handles demanding applications with ease.

S7215 CDGA/HCP4A Bearing operates efficiently at speeds up to 28,000 rpm.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long service life.

The bearing’s P4A tolerance class guarantees high precision and reliability.
It is suitable for temperatures ranging from -30°C to 110°C, making it versatile for various environments.

Application

Industrial Uses of S7215 CDGA/HCP4A Bearing
S7215 CDGA/HCP4A Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precise alignment, crucial for maintaining accuracy in CNC operations.

Where Is S7215 CDGA/HCP4A Bearing Used?
In aerospace applications, S7215 CDGA/HCP4A Bearing supports components like turbine shafts, thanks to its ability to handle both radial and angular loads. The sealed design also protects against contaminants in demanding environments.

Built for Heavy-Duty Use: S7215 CDGA/HCP4A Bearing
S7215 CDGA/HCP4A Bearing excels in robotics, particularly in articulated arms requiring smooth, low-friction movement. Its grease lubrication and high-speed capability make it ideal for repetitive, precision tasks.

Automotive vs Aerospace: Applications of S7215 CDGA/HCP4A Bearing
In automotive systems, S7215 CDGA/HCP4A Bearing is found in high-performance gearboxes, where its angular contact design manages thrust loads effectively. For aerospace, it’s trusted in landing gear mechanisms due to its reliability under stress.

Key Fields for S7215 CDGA/HCP4A Bearing
Medical imaging devices benefit from S7215 CDGA/HCP4A Bearing’s quiet operation and minimal vibration. The chrome steel rings and ceramic balls ensure long-term performance in sensitive diagnostic equipment.
