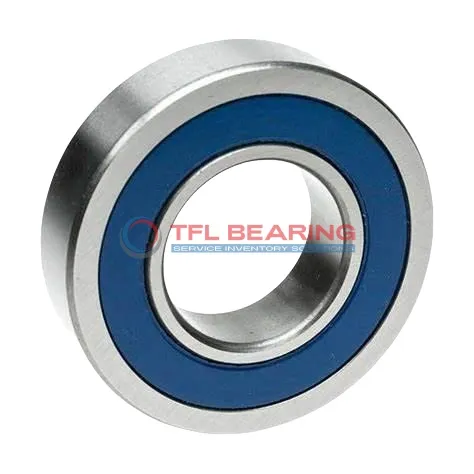

Single Row Deep Groove Ball Bearings 63006-2RS1

Single Row Deep Groove Ball Bearings 63006-2RS1

The 63006-2RS1 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2990 lbf and operates smoothly at speeds up to 8000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for electric motors or small machinery where radial load support is key.

Weighing just 0.17kg, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63006-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2990 lbf
  • Static Radial Load 1866 lbf
  • Max Speed 8000 rpm
  • Weight 0.17 kg
  • price（$） 9.738
Single Row Deep Groove Ball Bearings 63006-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 63006-2RS1 Bearing for Precision Tasks?

63006-2RS1 Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls ensure durability, even under radial loads up to 2990 lbf.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 8,000 rpm, it delivers reliable operation in various applications.

Designed for a temperature range of -30° to 120°C, 63006-2RS1 Bearing adapts to challenging environments.
Its P6 tolerance class guarantees precision, making it ideal for demanding tasks.

Application

Key Fields for 63006-2RS1 Bearing
63006-2RS1 Bearing is commonly used in industrial machinery, especially in electric motors and pumps where radial load support is essential. Its sealed design helps keep contaminants out, extending service life in dusty environments.
In automotive applications, 63006-2RS1 Bearing fits well in alternators and small gearboxes, providing smooth rotation with minimal maintenance. The grease lubrication ensures consistent performance across a wide temperature range.
For household appliances like washing machines, 63006-2RS1 Bearing offers quiet operation and reliability. The chrome steel construction handles daily wear while maintaining efficiency.

How Does 63006-2RS1 Bearing Improve Performance?
63006-2RS1 Bearing enhances conveyor systems by reducing friction in roller assemblies, thanks to its deep groove design. The stainless steel cage adds durability for continuous operation.
In power tools, 63006-2RS1 Bearing supports high-speed rotation without overheating. The P6 tolerance class ensures precise alignment for consistent results.

Built for Versatility: 63006-2RS1 Bearing
63006-2RS1 Bearing works well in agricultural equipment, handling moderate radial loads in harvesters. Its sealed construction protects against moisture and debris.
For small robotics, 63006-2RS1 Bearing provides compact radial support in joint mechanisms. The metric sizing makes it easy to integrate into various designs.

Industrial vs Automotive: Applications of 63006-2RS1 Bearing
In factory settings, 63006-2RS1 Bearing is ideal for spindle drives requiring precision. The CN clearance balances speed and load capacity effectively.
For car components like water pumps, 63006-2RS1 Bearing withstands engine heat while maintaining smooth rotation. The grease lubrication stays effective even at 120°C.
