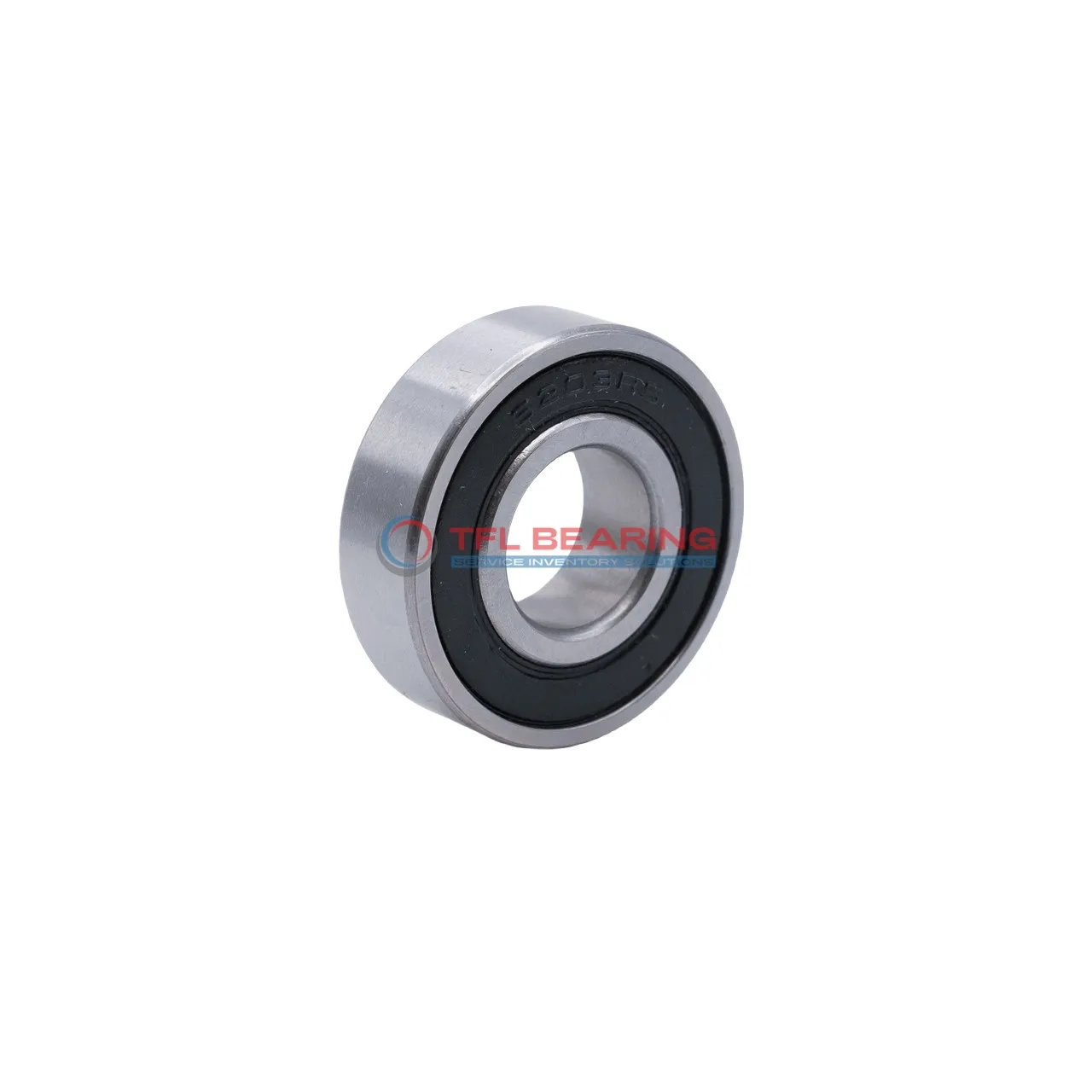

Single Row Deep Groove Ball Bearings 63000-2RS1

Single Row Deep Groove Ball Bearings 63000-2RS1

The 63000-2RS1 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter. Made from chrome steel, it’s built to handle radial loads up to 1039 lbf and speeds of 19,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring smooth operation even under stress.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small machinery or electric motors where space is limited but performance is key. Weighing just 0.02kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63000-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1039 lbf
  • Static Radial Load 441 lbf
  • Max Speed 19000 rpm
  • Weight 0.02 kg
  • price（$） 7.119
Single Row Deep Groove Ball Bearings 63000-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 63000-2RS1 Bearing for Precision Tasks?

63000-2RS1 Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide reliable radial load capacity up to 1039 lbf.

The stainless steel cage ensures smooth operation, even at high speeds of 19,000 rpm.
With a temperature range of -30° to 120°C, it adapts to various working conditions.

Grease lubrication reduces maintenance needs, making it a practical choice for long-term use.
The P6 tolerance class guarantees precision, ideal for applications requiring accurate performance.

Application

Common Applications of 63000-2RS1 Bearing
63000-2RS1 Bearing works well in small electric motors, such as those used in household appliances or power tools. Its sealed design keeps grease in and dirt out, making it reliable for everyday use.

In conveyor systems, 63000-2RS1 Bearing handles radial loads smoothly, ensuring consistent movement of goods. The chrome steel construction provides durability even in dusty or humid environments.

For office equipment like printers, 63000-2RS1 Bearing offers quiet operation and long service life. The P6 tolerance class ensures precise performance for delicate mechanisms.

Where Is 63000-2RS1 Bearing Used?
You’ll often find 63000-2RS1 Bearing in cooling fans, where its grease lubrication reduces maintenance needs. The compact size fits neatly into tight spaces without sacrificing performance.

In automotive accessories like alternators, 63000-2RS1 Bearing withstands constant rotation at moderate speeds. The sealed design protects against contaminants from road conditions.

Built for Versatility: 63000-2RS1 Bearing
63000-2RS1 Bearing suits light industrial machinery, such as packaging equipment, due to its balanced load capacity. The stainless steel cage resists corrosion in varied working conditions.

For DIY power tools, 63000-2RS1 Bearing provides smooth operation under intermittent loads. Its metric sizing ensures easy replacement in most European-made devices.

Light-Duty vs Heavy-Duty: Best Uses for 63000-2RS1 Bearing
In light-duty applications like small pumps, 63000-2RS1 Bearing delivers reliable performance with minimal noise. The temperature range accommodates most indoor environments.

For heavier tasks in agricultural machinery, 63000-2RS1 Bearing’s dynamic load rating handles moderate stresses. The sealed construction is particularly useful in outdoor settings.
