Single Row Deep Groove Ball Bearings 6301-RS1/MTVK284

The 6301-RS1 is a compact single-row deep groove ball bearing, measuring 12mm in bore and 37mm in outer diameter, with a width of 12mm. Made from durable chrome steel, it handles radial loads up to 2181 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance and long-lasting. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for applications like electric motors, pumps, or small machinery where radial loads are common.

Weighing just 60g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6301-RS1/MTVK284
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 37 mm
Outer Dia Tolerance -0.011mm to 0
Width 12 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2181 lbf
Static Radial Load 944 lbf
Max Speed 20000 rpm
Weight 60 g

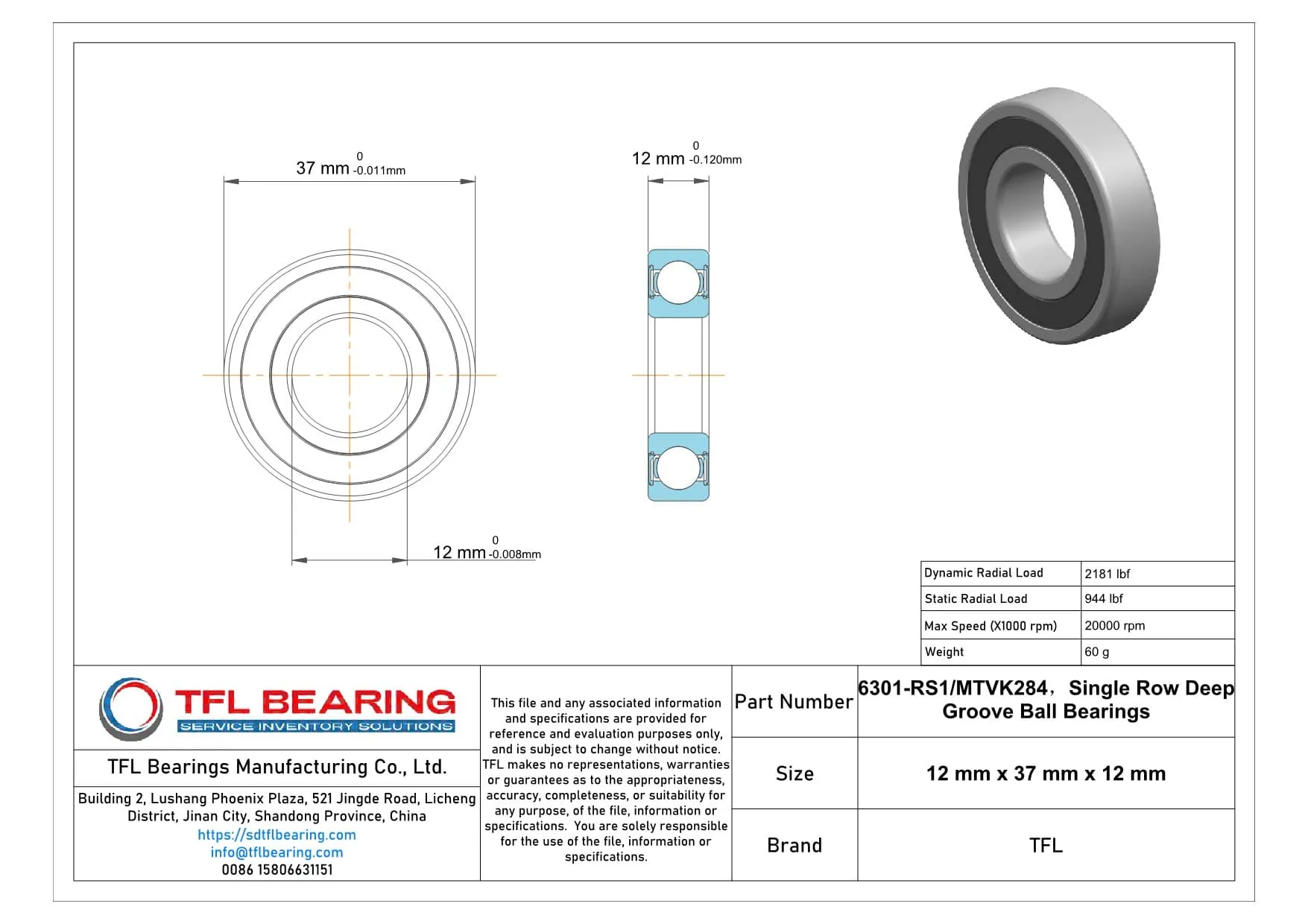

Single Row Deep Groove Ball Bearings 6301-RS1/MTVK284 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6301-RS1/MTVK284 Bearing

6301-RS1/MTVK284 Bearing is designed for radial loads, with a dynamic radial load capacity of 2181 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the ABEC 1 tolerance class ensures reliable performance.
With a maximum speed of 20,000 rpm, it is suitable for high-speed applications.

Application

Common Applications of 6301-RS1/MTVK284 Bearing
In industrial machinery, 6301-RS1/MTVK284 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 6301-RS1/MTVK284 Bearing Used?
You’ll often find 6301-RS1/MTVK284 Bearing in automotive applications like alternators and small gearboxes, thanks to its reliable radial load handling. Its compact size makes it ideal for tight spaces.

Built for Heavy-Duty Use: 6301-RS1/MTVK284 Bearing
For household appliances like washing machines, 6301-RS1/MTVK284 Bearing provides smooth operation with minimal maintenance. The sealed design also helps extend its lifespan in dusty conditions.

Automotive vs Industrial: Applications of 6301-RS1/MTVK284 Bearing
In industrial fans, 6301-RS1/MTVK284 Bearing handles moderate radial loads efficiently, while in automotive systems, it supports components like water pumps. Its versatility makes it a go-to choice for various applications.
