Self Aligning Ball Bearings 2214E-2RS

Self Aligning Ball Bearings 2214E-2RS

The 2214E-2RS is a self-aligning ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9945 lbf and operates smoothly at speeds up to 6700 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.5kg, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2214E-2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 88 mm
  • Internal Diameter On Outer Ring 109 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 9945 lbf
  • Static Radial Load 3825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 1.5 kg
  • Price（$） 151.7

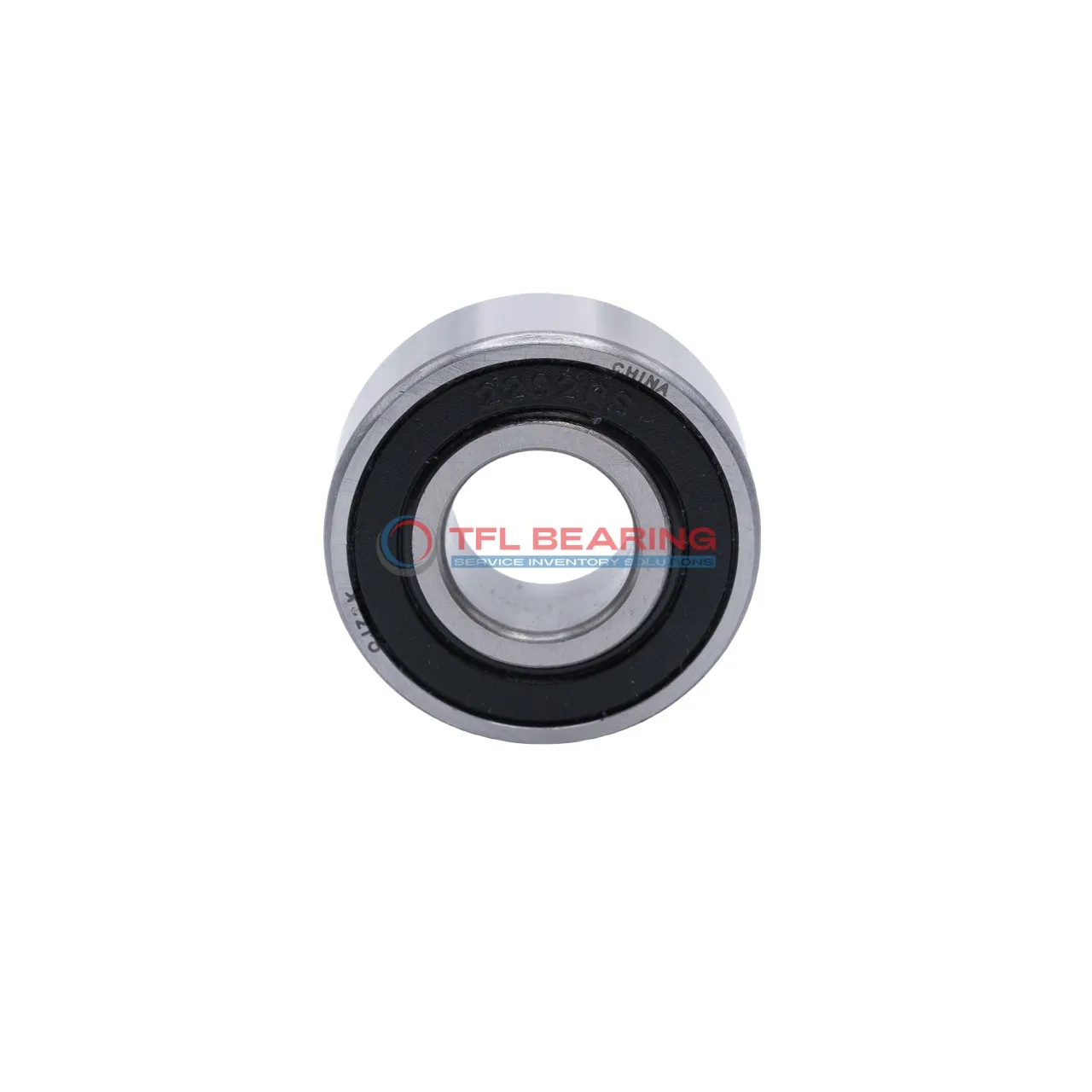

Self Aligning Ball Bearings 2214E-2RS dimension drawing
Download DWG Download PDF

Features

Why Choose 2214E-2RS Bearing for Precision Tasks?

2214E-2RS Bearing features a double-row design, offering excellent radial load capacity up to 9945 lbf.

Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains alignment for smooth operation.

With a maximum speed of 6,700 rpm, it is suitable for high-performance applications.

The bearing operates efficiently in temperatures ranging from -30° to 110°C, making it versatile for various environments.

Application

Industrial Uses of 2214E-2RS Bearing
2214E-2RS Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps handle radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes 2214E-2RS Bearing a Preferred Choice?
In automotive applications, 2214E-2RS Bearing fits well in wheel hubs and transmissions, offering reliable performance under varying loads. Its metric sizing makes it compatible with a range of vehicle models.

Perfect Fit for Automation: 2214E-2RS Bearing
For robotic arms and automated production lines, 2214E-2RS Bearing provides smooth operation thanks to its self-aligning feature. The stainless steel cage adds extra resistance to wear and tear.

Medical vs Industrial: Where 2214E-2RS Bearing Excels
While 2214E-2RS Bearing is robust enough for industrial equipment, it also finds use in medical devices like imaging systems. Its consistent performance and low maintenance make it versatile across sectors.
