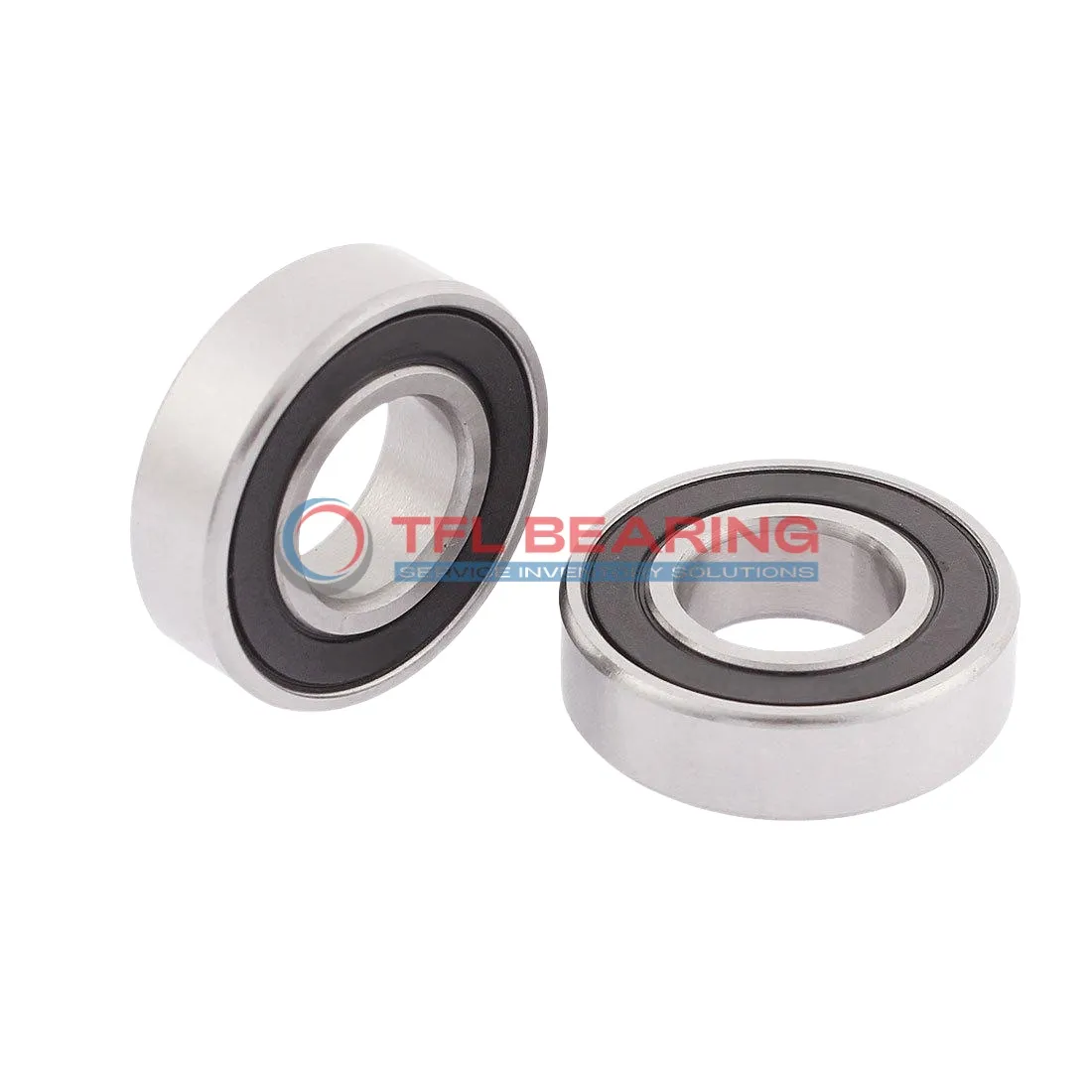

Single Row Deep Groove Ball Bearings 630/8-2RS1

Single Row Deep Groove Ball Bearings 630/8-2RS1

The 630/8-2RS1 is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 11mm. Made from chrome steel with stainless steel cage, it offers reliable performance for radial loads up to 776 lbf.

Its sealed design keeps grease in and contaminants out, making it low-maintenance. With a maximum speed of 22,000 RPM, it spins smoothly in various applications.

The P6 tolerance ensures precise operation, while the CN radial clearance provides a good balance between fit and performance. It works in temperatures from -30°C to 120°C.

Ideal for small motors, power tools, or appliances where space is limited. Weighing just 16 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 630/8-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 776 lbf
  • Static Radial Load 308 lbf
  • Max Speed 22000 rpm
  • Weight 0.016 kg
  • price（$） 4.338
Single Row Deep Groove Ball Bearings 630/8-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 630/8-2RS1 Bearing Reduce Friction?

630/8-2RS1 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation and reduced friction.
The stainless steel cage maintains proper ball alignment, enhancing efficiency and longevity.
With a dynamic radial load capacity of 776 lbf, it handles radial loads effectively while maintaining low noise levels.
Its maximum speed of 22,000 rpm makes it suitable for high-speed applications.

Application

Common Applications of 630/8-2RS1 Bearing
In industrial settings, 630/8-2RS1 Bearing is commonly used in small electric motors and pumps, where its sealed design keeps contaminants out and extends service life. The grease lubrication ensures smooth operation even in dusty environments.

Where Is 630/8-2RS1 Bearing Used?
You’ll often find 630/8-2RS1 Bearing in household appliances like washing machines and fans, thanks to its compact size and reliable radial load handling. The chrome steel construction provides durability for everyday use.

Perfect Fit for Automation: 630/8-2RS1 Bearing
For automated systems, 630/8-2RS1 Bearing works well in conveyor rollers and small robotic arms, where precision and low maintenance are key. Its P6 tolerance class ensures consistent performance in repetitive tasks.

Medical vs Industrial: Where 630/8-2RS1 Bearing Excels
In medical devices like dental handpieces, 630/8-2RS1 Bearing offers quiet operation and reliability. Industrial applications, such as small gearboxes, benefit from its ability to handle moderate radial loads with ease.
