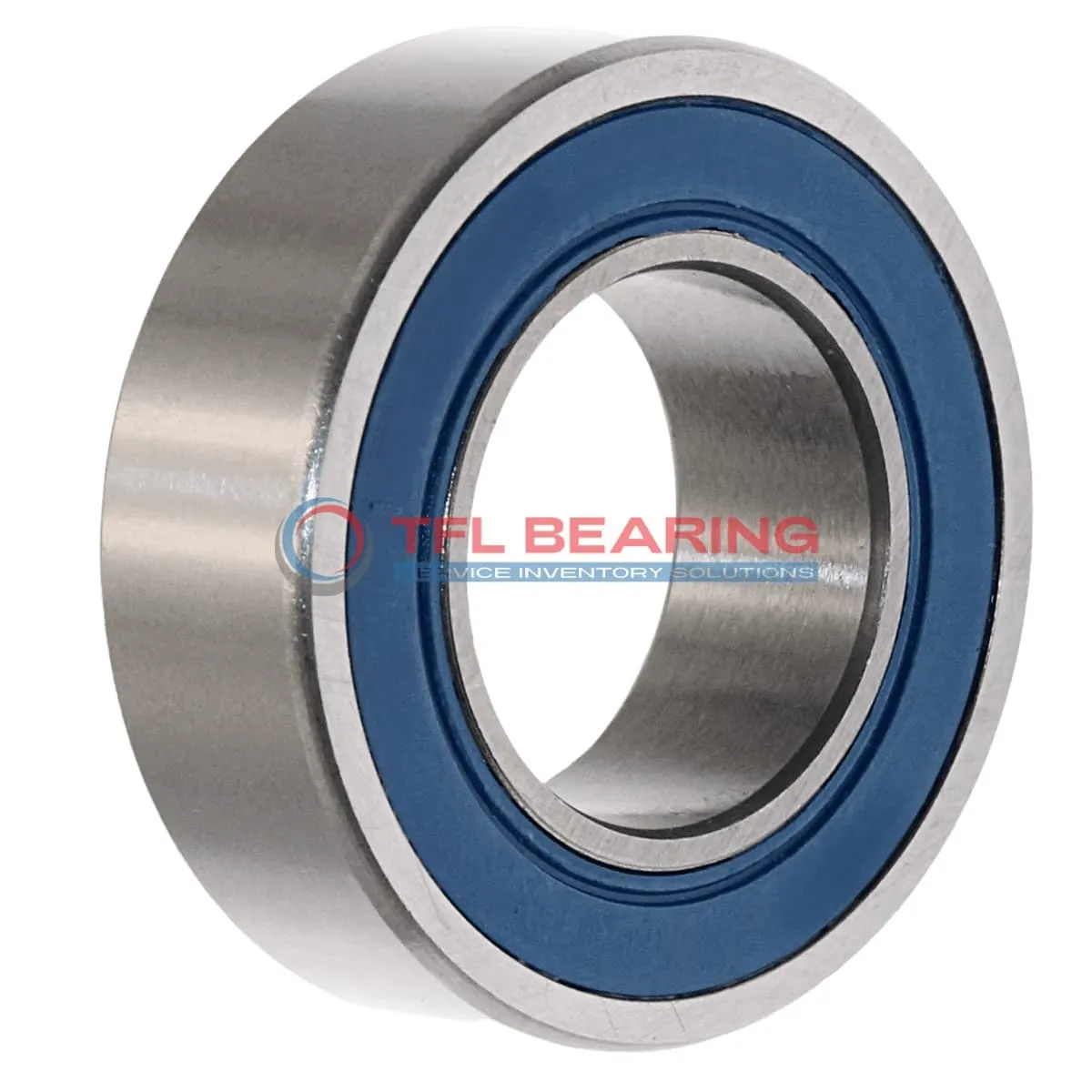

Single Row Deep Groove Ball Bearings 6210-2RSJEM

Single Row Deep Groove Ball Bearings 6210-2RSJEM

The 6210-2RSJEM is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The chrome steel cage adds durability, making it reliable for continuous use.

This bearing suits a wide temperature range, from -30°C to 120°C, and meets RoHS and REACH standards. It’s interchangeable with SKF models, offering a cost-effective alternative.

Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common. Weighing 463g, it’s a robust yet lightweight choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Max Speed 7100 rpm
  • Weight 463 g
  • price（$） 11.592
Single Row Deep Groove Ball Bearings 6210-2RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6210-2RSJEM Bearing for Precision Tasks?

6210-2RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 7891 lbf, it handles demanding conditions effortlessly.
The bearing operates smoothly within a temperature range of -30°C to 120°C, making it versatile for various environments.

Its ABEC 1 tolerance class guarantees reliable precision in industrial applications.
The sealed design also reduces maintenance needs, saving time and operational costs.

Application

Industrial Uses of 6210-2RSJEM Bearing
6210-2RSJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability even in demanding environments.

Where Is 6210-2RSJEM Bearing Used?
You’ll often find 6210-2RSJEM Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable radial load handling. Its metric sizing makes it a versatile fit for various vehicle models.

Built for Heavy-Duty Use: 6210-2RSJEM Bearing
6210-2RSJEM Bearing works well in agricultural equipment, handling the rough conditions of tractors and harvesters. The sealed design protects against dust and moisture, extending its lifespan.

Automotive vs Industrial: Applications of 6210-2RSJEM Bearing
In cars, 6210-2RSJEM Bearing supports smooth rotation in components like fans and pulleys. For factories, it’s a go-to choice for conveyor systems due to its consistent performance under radial loads.

Perfect Fit for Automation: 6210-2RSJEM Bearing
6210-2RSJEM Bearing is ideal for robotic arms and assembly line equipment, where precision and reliability are key. The sealed design reduces maintenance needs, keeping operations running smoothly.
