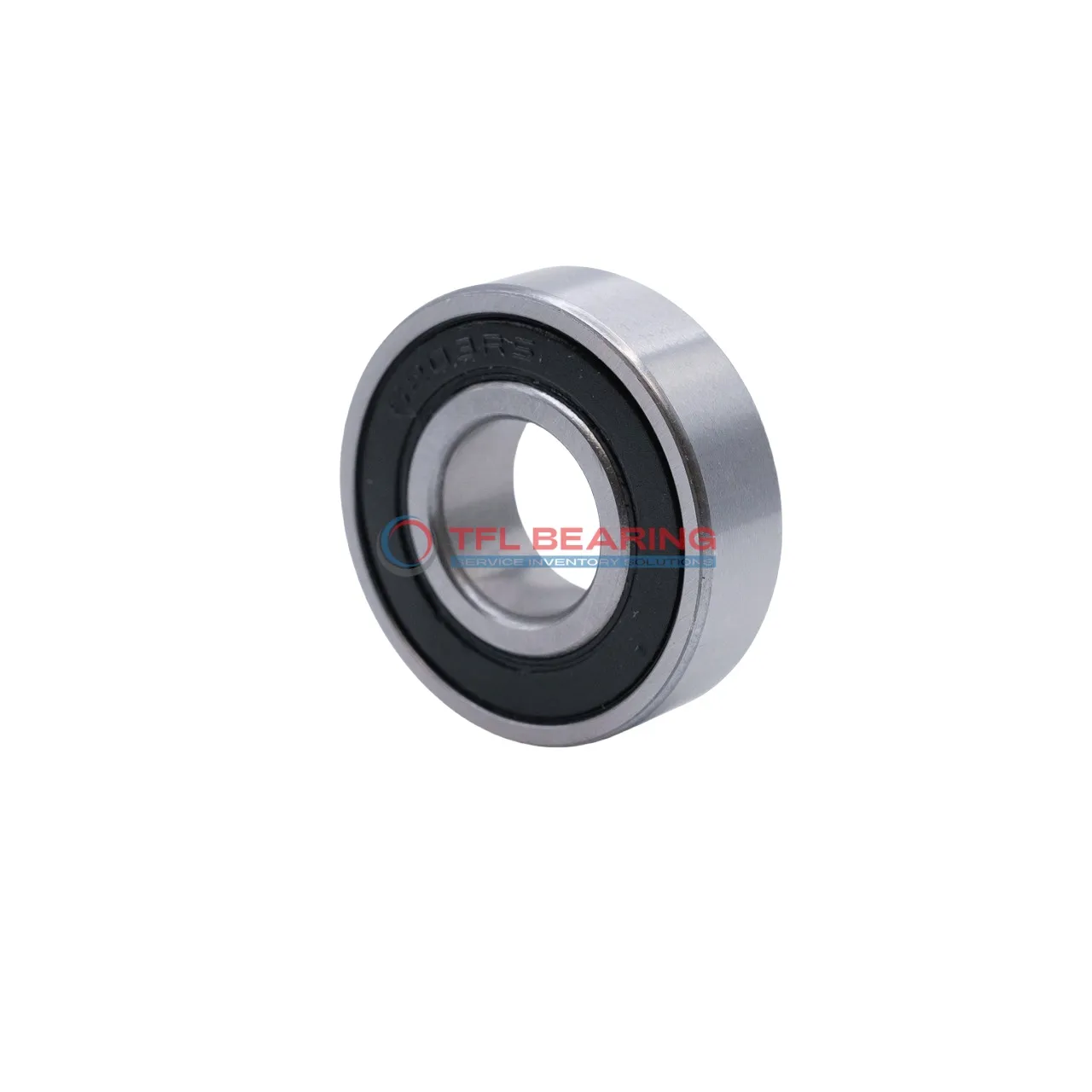

Single Row Deep Groove Ball Bearings 628-2RS1

Single Row Deep Groove Ball Bearings 628-2RS1

The 628-2RS1 is a compact single-row deep groove ball bearing, measuring 8mm by 24mm by 8mm, crafted from sturdy chrome steel. It handles radial loads up to 877 lbf and spins smoothly at speeds up to 19,000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Ideal for small machinery or appliances where space is limited but performance is key. Compliant with RoHS and REACH standards, it’s a safe and practical option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 628-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 877 lbf
  • Static Radial Load 373 lbf
  • Max Speed 19000 rpm
  • Weight 0.017 kg
Single Row Deep Groove Ball Bearings 628-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 628-2RS1 Bearing Reduce Friction?

628-2RS1 Bearing features a sealed design with grease lubrication, ensuring smooth operation and reduced friction.
The chrome steel rings and balls provide durability, while the stainless steel cage maintains proper alignment.

With a dynamic radial load capacity of 877 lbf, it handles demanding radial loads efficiently.
Its maximum speed of 19,000 rpm makes it suitable for high-speed applications.

The temperature range of -30° to 120°C ensures reliable performance in various conditions.
This bearing is ideal for applications requiring low maintenance and long service life.

Application

Common Applications of 628-2RS1 Bearing
The 628-2RS1 Bearing is widely used in small electric motors, thanks to its compact size and sealed design which keeps out dust and moisture.
It’s a reliable choice for household appliances like washing machines, where smooth rotation and low maintenance are key.

Industrial Uses of 628-2RS1 Bearing
In conveyor systems, the 628-2RS1 Bearing handles radial loads efficiently, ensuring consistent performance in production lines.
Its chrome steel construction also makes it suitable for light industrial machinery that requires durability without excessive weight.

Where Is 628-2RS1 Bearing Used?
You’ll often find the 628-2RS1 Bearing in office equipment such as printers, where its quiet operation and grease lubrication reduce noise.
It’s also handy in power tools, providing steady support for rotating parts under moderate loads.

Built for Versatility: 628-2RS1 Bearing
The 628-2RS1 Bearing works well in automotive accessories like cooling fans, thanks to its temperature resistance and sealed protection.
Its metric sizing makes it easy to replace in a variety of European and Asian machinery designs.

Light-Duty vs Heavy-Duty: Best Uses for 628-2RS1 Bearing
For light-duty applications, the 628-2RS1 Bearing is ideal in small pumps or garden tools where space is limited.
In more demanding settings, it can still perform well in low-speed industrial fans or conveyor rollers with proper maintenance.
