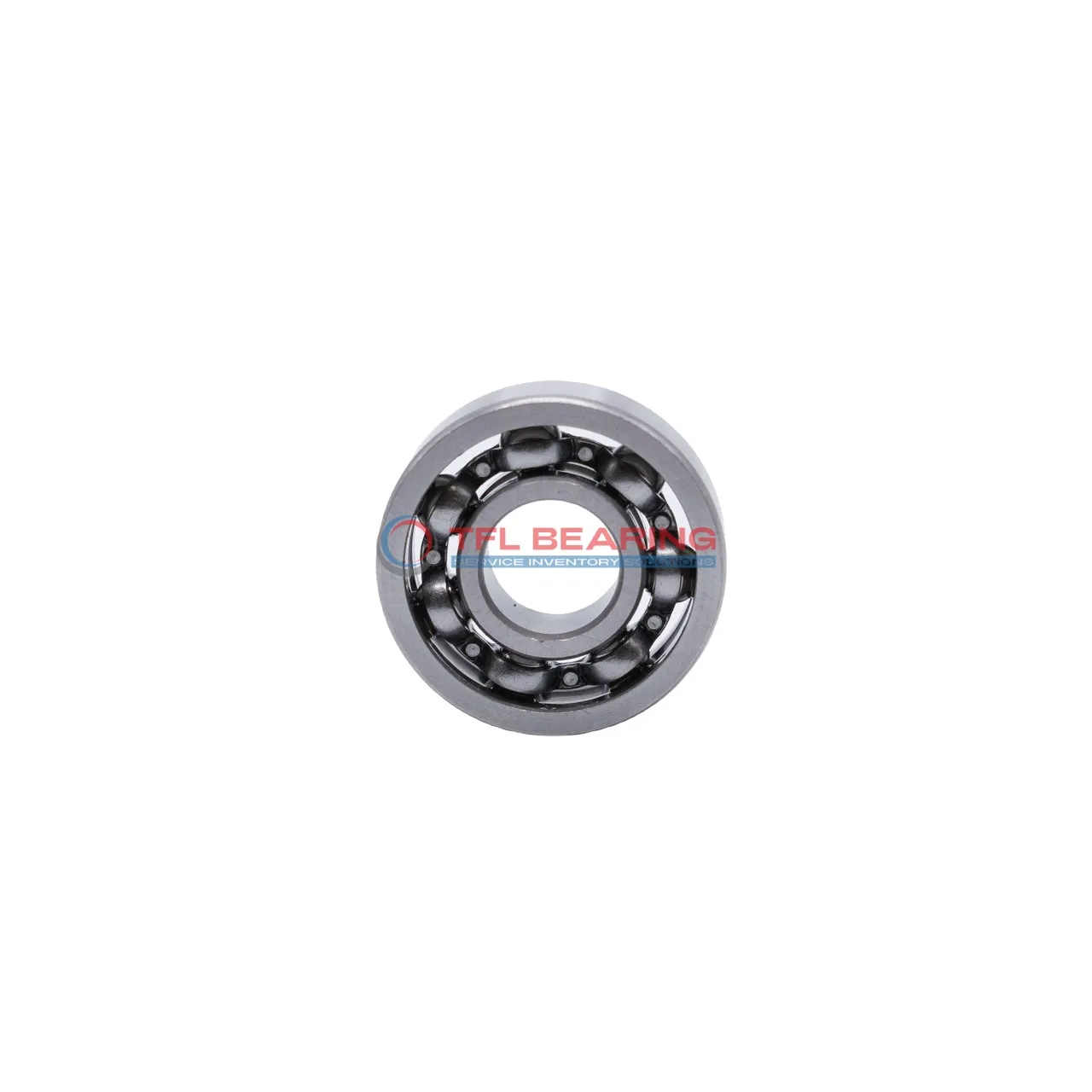

Single Row Deep Groove Ball Bearings 627 TN9

Single Row Deep Groove Ball Bearings 627 TN9

The 627 TN9 is a compact single-row deep groove ball bearing with a 7mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 629 lbf and spins efficiently at speeds up to 30,000 RPM.

Its open design and nylon cage ensure smooth operation, while the ABEC 1 tolerance offers reliable precision. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for small motors or appliances where space is limited but performance is key.

Weighing just 12.7g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 627 TN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 248 lbf
  • Max Speed 30000 rpm
  • Weight 12.7 g
Single Row Deep Groove Ball Bearings 627 TN9 dimension drawing
Download DWG Download PDF

Features

Performance Features of 627 TN9 Bearing

627 TN9 Bearing is crafted with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 629 lbf, making it suitable for various applications.

The nylon cage in 627 TN9 Bearing ensures smooth operation and reduces friction.
With a maximum speed of 30,000 rpm, it delivers efficient performance in high-speed scenarios.

627 TN9 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its open design allows for easy lubrication and maintenance, enhancing longevity.

Application

Industrial Uses of 627 TN9 Bearing
627 TN9 Bearing is commonly used in small industrial equipment like electric motors and pumps, where its compact size and radial load capacity are beneficial. The open design allows for easy lubrication, extending its service life in continuous operation.

Where Is 627 TN9 Bearing Used?
You’ll often find 627 TN9 Bearing in automotive applications such as alternators and small gearboxes, thanks to its reliable performance and compatibility with metric systems. Its nylon cage reduces noise, making it ideal for quieter operations.

Perfect Fit for Automation: 627 TN9 Bearing
In robotics and automation, 627 TN9 Bearing works well in small joints and conveyor systems due to its lightweight and high-speed capability. The chrome steel construction ensures durability even in demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 627 TN9 Bearing
For light-duty tasks like household appliances or office printers, 627 TN9 Bearing offers smooth and efficient performance. Its ABEC 1 tolerance makes it suitable for applications where precision isn’t critical but reliability is key.
