Self Aligning Ball Bearings 2314 P/6

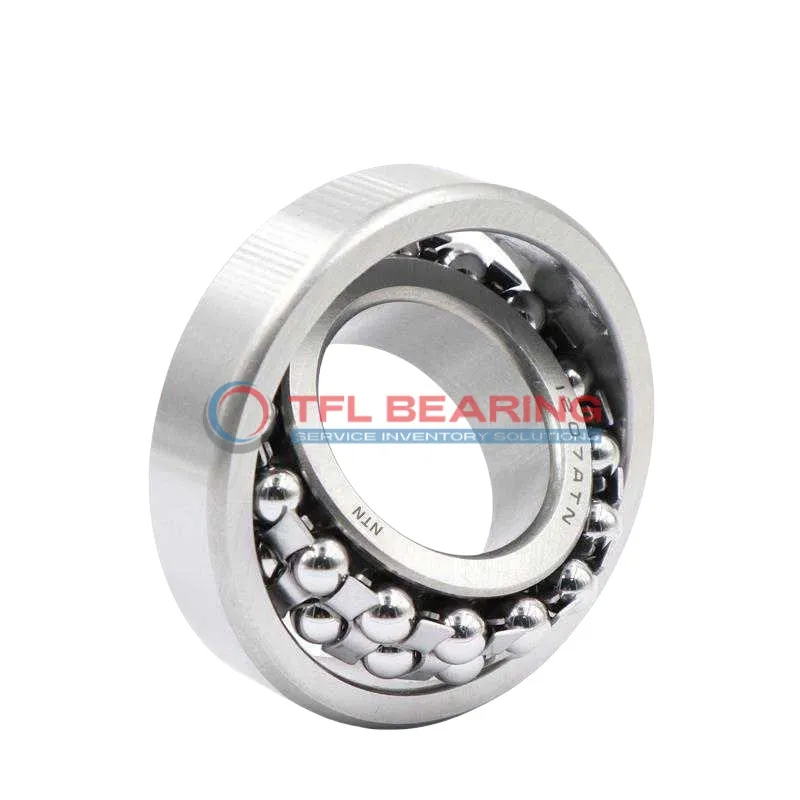

Self Aligning Ball Bearings 2314 P/6

The 2314 P/6 is a self-aligning ball bearing with a 70mm bore and 150mm outer diameter, designed for radial loads. Its double-row construction and chrome steel components ensure durability and smooth operation under heavy use.

It handles dynamic radial loads up to 24975 lbf and spins efficiently at speeds up to 6000 RPM. The open design allows for easy lubrication, while the stainless steel cage enhances longevity.

This bearing is interchangeable with SKF models, making it a versatile choice for replacements. Ideal for industrial machinery or equipment where misalignment might occur, thanks to its self-aligning feature.

Weighing 3.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it operates reliably in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2314 P/6
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 92 mm
  • Internal Diameter On Outer Ring 128.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 24975 lbf
  • Static Radial Load 8438 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 3.9 kg
  • Price（$） 217.3
Self Aligning Ball Bearings 2314 P/6 dimension drawing
Download DWG Download PDF

Features

Why Choose 2314 P/6 Bearing for Precision Tasks?

2314 P/6 Bearing features a double-row design, offering high radial load capacity up to 24,975 lbf.
Its chrome steel construction ensures durability and smooth operation in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
With a maximum speed of 6,000 rpm, it provides reliable performance for precision tasks.

2314 P/6 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 2314 P/6 Bearing
2314 P/6 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for demanding environments.

In automotive applications, 2314 P/6 Bearing can be found in components like wheel hubs and transmissions, where durability and smooth operation are key. Its metric dimensions make it a versatile choice for various vehicle models.

For automation equipment, 2314 P/6 Bearing supports robotic arms and assembly lines, providing stability and reducing maintenance needs. The chrome steel construction enhances its longevity in high-use scenarios.

Medical devices like diagnostic scanners benefit from 2314 P/6 Bearing’s precision and low friction. The stainless steel cage adds an extra layer of reliability for critical applications.
