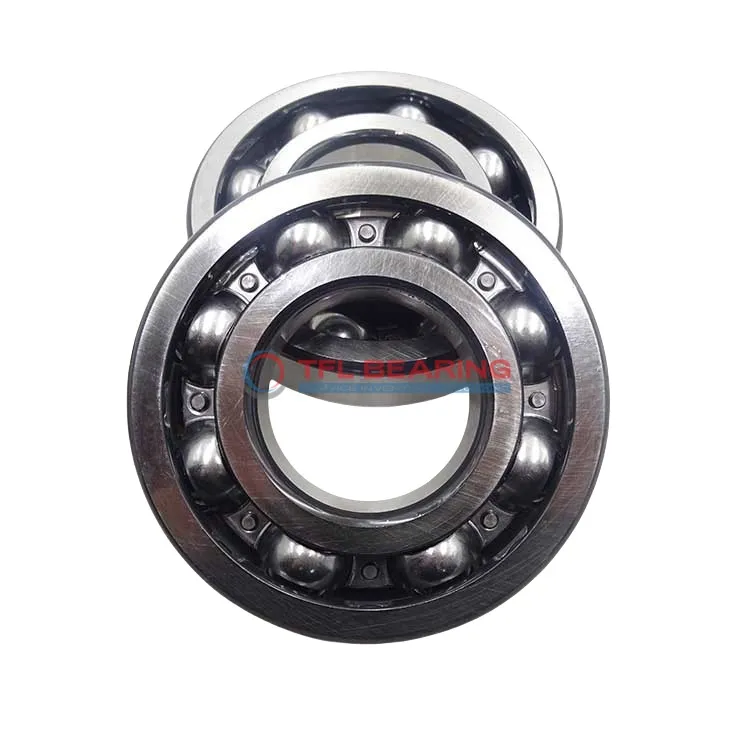

Single Row Deep Groove Ball Bearings 6238/C4

Single Row Deep Groove Ball Bearings 6238/C4

The 6238/C4 is a single-row deep groove ball bearing with a 190mm bore and 340mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 57326 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances longevity. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it accommodates slight misalignments and thermal expansion. Ideal for heavy-duty applications like industrial pumps or electric motors where radial loads dominate.

Weighing 19.3kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6238/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 55 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 57326 lbf
  • Static Radial Load 62947 lbf
  • Max Speed 2400 rpm
  • Weight 19300 g
Single Row Deep Groove Ball Bearings 6238/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6238/C4 Bearing

6238/C4 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 57,326 lbf, making it suitable for heavy-duty applications.

The open design of 6238/C4 Bearing allows for easy lubrication and maintenance.
With a maximum speed of 2,400 rpm, it provides reliable performance in various conditions.

6238/C4 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its chrome steel cage ensures proper ball alignment, reducing wear and extending service life.

The C4 radial clearance in 6238/C4 Bearing accommodates thermal expansion during operation.
This design feature helps maintain smooth performance even under varying temperatures.

Application

Industrial Uses of 6238/C4 Bearing
The 6238/C4 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently.
Its open seal type makes it easy to lubricate, ensuring long service life in demanding environments.

Where Is 6238/C4 Bearing Used?
You’ll often find the 6238/C4 Bearing in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction.
The C4 clearance allows for thermal expansion, making it suitable for applications with varying temperatures.

Built for Heavy-Duty Use: 6238/C4 Bearing
This bearing excels in construction equipment, where its high dynamic radial load capacity ensures reliable performance.
The metric sizing and ABEC 1 tolerance make it a versatile choice for various industrial applications.

Automotive vs Industrial: Applications of 6238/C4 Bearing
In automotive applications, the 6238/C4 Bearing supports components like wheel hubs, while in industrial settings, it’s ideal for gearboxes.
Its chrome steel cage enhances durability, making it a dependable option for both sectors.

Practical Applications of 6238/C4 Bearing
The 6238/C4 Bearing is a go-to for wind turbines, where its ability to handle radial loads and temperature fluctuations is crucial.
Its open design simplifies maintenance, reducing downtime in remote installations.
