Stainless Steel Deep Groove Ball Bearings W 6208-2RS1

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1

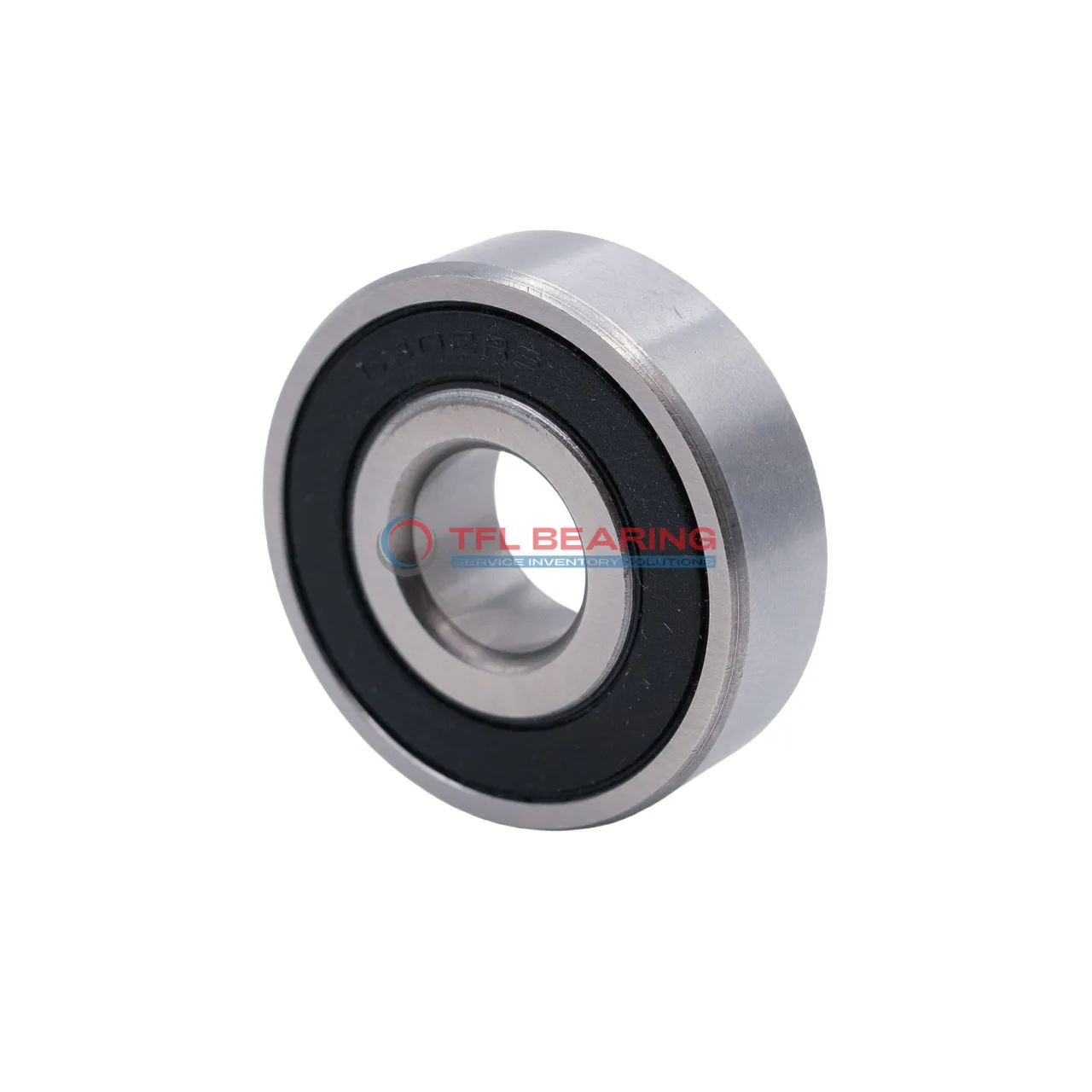

The W 6208-2RS1 is a stainless steel deep groove ball bearing with a 40mm bore and 80mm outer diameter, measuring 18mm wide. Its sealed design keeps grease in and dirt out, making it low-maintenance.

This bearing handles radial loads up to 5643 lbf and runs smoothly at speeds up to 5600 RPM. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

Its compact size and P0 tolerance ensure reliable performance in tight spaces. The grease lubrication works well in temperatures from -30°C to 120°C.

A practical choice for food processing equipment or marine applications where rust resistance matters. Weighing 0.36kg, it’s robust yet easy to handle. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6208-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5643 lbf
  • Static Radial Load 3957 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.36 kg
  • Price（$） 38.07
Stainless Steel Deep Groove Ball Bearings W 6208-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6208-2RS1 Bearing for Precision Tasks?

W 6208-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, making it ideal for environments where cleanliness is crucial.
With a dynamic radial load capacity of 5643 lbf, it handles demanding applications with ease.
The bearing operates smoothly at speeds up to 5,600 rpm, providing reliable performance in various conditions.

Application

Industrial Uses of W 6208-2RS1 Bearing
W 6208-2RS1 Bearing is commonly used in industrial machinery, such as pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction ensures durability in harsh environments.

In automotive applications, W 6208-2RS1 Bearing fits well in electric motors and wheel hubs, providing reliable radial load support. Its grease lubrication reduces maintenance needs, making it a practical choice for long-term use.

For medical devices, W 6208-2RS1 Bearing’s smooth operation is ideal for precision equipment like centrifuges. The stainless steel materials also resist corrosion, which is essential in sterile environments.

In home appliances, W 6208-2RS1 Bearing works efficiently in washing machines and fans, where quiet performance matters. The sealed design keeps dust and moisture from affecting its lifespan.
