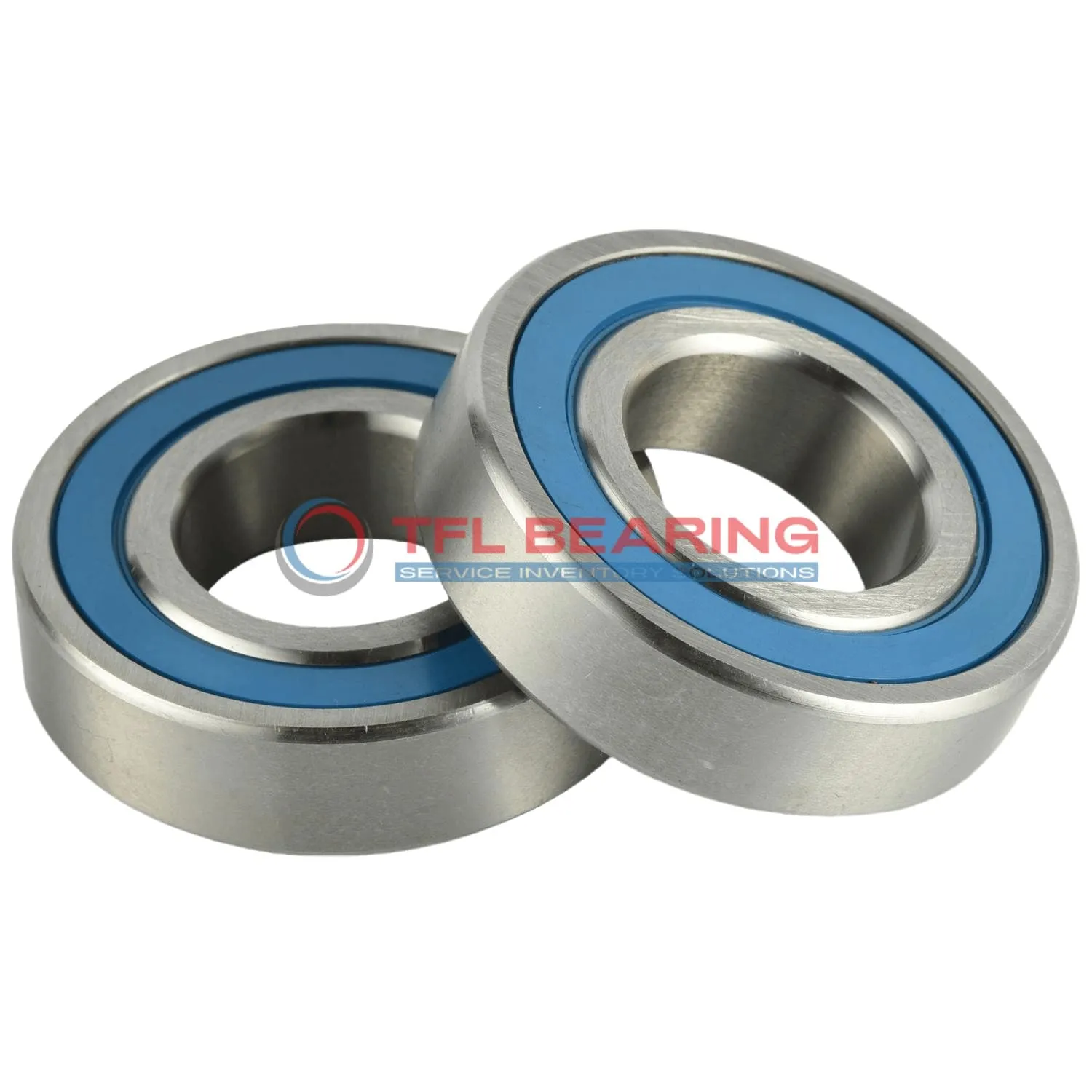

Single Row Deep Groove Ball Bearings 62306-2RS1/C3

Single Row Deep Groove Ball Bearings 62306-2RS1/C3

The 62306-2RS1/C3 is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. Its sealed design keeps out dust and dirt, making it low-maintenance for long-term use.

This bearing handles radial loads smoothly and operates well in temperatures from -30°C to 120°C. The C3 radial clearance ensures reliable performance under varying conditions.

Its chrome steel cage adds durability, while the sealed construction protects against contaminants. Ideal for electric motors, pumps, or industrial gearboxes where consistent performance is key.

Weighing 0.498kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62306-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Weight 0.498 kg
Single Row Deep Groove Ball Bearings 62306-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 62306-2RS1/C3 Bearing for Precision Tasks?

62306-2RS1/C3 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.
With a temperature range of -30°C to 120°C, it performs reliably in diverse environments.

The single-row deep groove design provides smooth operation, ideal for precision machinery.
Its metric sizing (30 mm×72 mm×27 mm) ensures compatibility with standard equipment.

Application

Industrial Uses of 62306-2RS1/C3 Bearing
62306-2RS1/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

What Makes 62306-2RS1/C3 Bearing a Preferred Choice?
In automotive applications, 62306-2RS1/C3 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its C3 clearance allows for slight thermal expansion, making it versatile for various engine conditions.

Perfect Fit for Automation: 62306-2RS1/C3 Bearing
For automated systems, 62306-2RS1/C3 Bearing works smoothly in conveyor belts and robotic arms, thanks to its consistent performance. The sealed design reduces maintenance needs, which is ideal for continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 62306-2RS1/C3 Bearing
In light-duty applications like household appliances, 62306-2RS1/C3 Bearing ensures quiet and efficient operation. For heavier tasks, it handles moderate loads in industrial fans and gearboxes without compromising performance.
