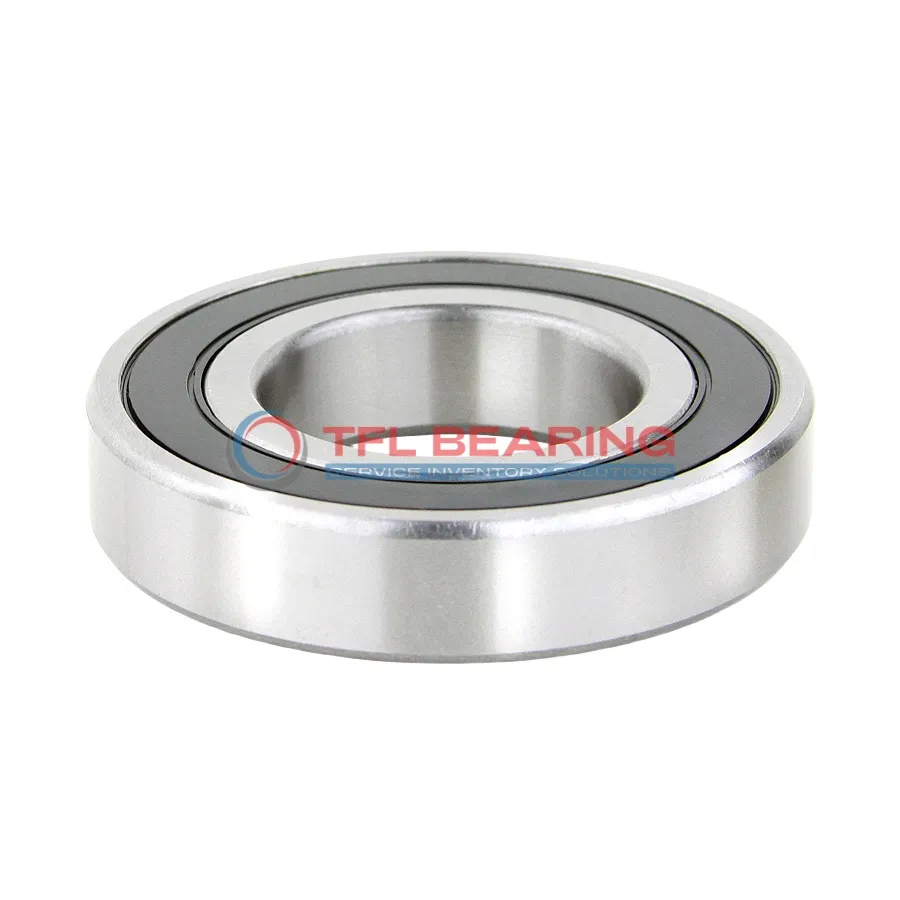

Single Row Deep Groove Ball Bearings 62302-2RS1/C3MT33

Single Row Deep Groove Ball Bearings 62302-2RS1/C3MT33

The 62302-2RS1/C3MT33 is a single-row deep groove ball bearing with a compact size of 15mm by 42mm by 17mm, crafted from durable chrome steel. It handles radial loads up to 2563 lbf and operates smoothly at speeds up to 12,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.11kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62302-2RS1/C3MT33
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1214 lbf
  • Max Speed 12000 rpm
  • Weight 0.11 kg
  • price（$） 8.865
Single Row Deep Groove Ball Bearings 62302-2RS1/C3MT33 dimension drawing
Download DWG Download PDF

Features

Performance Features of 62302-2RS1/C3MT33 Bearing

62302-2RS1/C3MT33 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 2563 lbf, making it suitable for various applications.

The sealed design of 62302-2RS1/C3MT33 Bearing protects against dust and moisture, enhancing durability.
It operates smoothly in temperatures ranging from -30°C to 120°C, ensuring reliable performance.

With a maximum speed of 12,000 rpm, 62302-2RS1/C3MT33 Bearing balances efficiency and longevity.
The C3 radial clearance provides optimal performance under varying operational conditions.

Application

Common Applications of 62302-2RS1/C3MT33 Bearing
In industrial machinery, 62302-2RS1/C3MT33 Bearing is commonly used in pumps and electric motors, where its sealed design keeps contaminants out. The C3 radial clearance ensures smooth operation even under varying temperatures.

Where Is 62302-2RS1/C3MT33 Bearing Used?
You’ll often find 62302-2RS1/C3MT33 Bearing in automotive applications like alternators and small gearboxes. Its chrome steel construction provides durability, while the sealed design reduces maintenance needs.

Ideal for Precision: 62302-2RS1/C3MT33 Bearing
62302-2RS1/C3MT33 Bearing works well in medical devices like dental handpieces, thanks to its reliable performance and low noise. The ABEC 1 tolerance ensures consistent operation in sensitive equipment.

Light-Duty vs Heavy-Duty: Best Uses for 62302-2RS1/C3MT33 Bearing
For light-duty tasks, 62302-2RS1/C3MT33 Bearing is great in household appliances like washing machines. In heavier industrial settings, it handles radial loads in conveyor systems with ease.

Practical Applications of 62302-2RS1/C3MT33 Bearing
62302-2RS1/C3MT33 Bearing fits nicely into small robotics, such as robotic arms in assembly lines. The sealed design and chrome steel components make it a dependable choice for continuous use.
