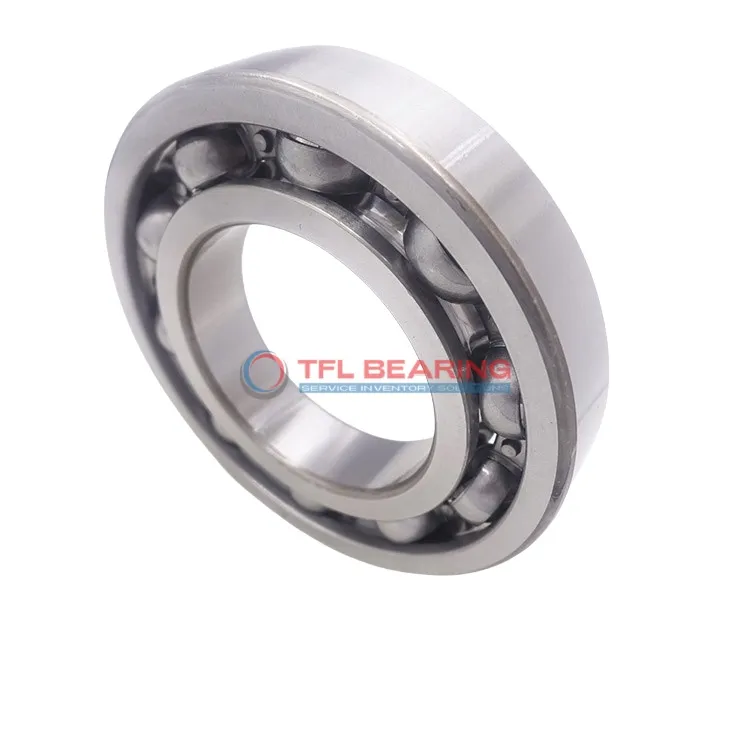

Single Row Deep Groove Ball Bearings 6230

Single Row Deep Groove Ball Bearings 6230

The 6230 is a single-row deep groove ball bearing with a 150mm bore and 270mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 39117 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the P6 tolerance class ensures precise performance. The bearing functions reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are prevalent.

Weighing 10.1kg, it offers durability for demanding applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6230
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 270 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 45 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 39117 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 3200 rpm
  • Weight 10100 g
  • price（$） 301.14
Single Row Deep Groove Ball Bearings 6230 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6230 Bearing

6230 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 39117 lbf, making it suitable for demanding industrial applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 3,200 rpm, it balances performance and durability in various conditions.

6230 Bearing operates reliably in temperatures ranging from -30°C to 120°C.
Its compliant design meets RoHS and REACH standards, ensuring environmental safety.

Application

Industrial Uses of 6230 Bearing
6230 Bearing is commonly used in industrial machinery, such as large pumps and gearboxes, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6230 Bearing Used?
In automotive applications, 6230 Bearing supports heavy-duty components like axle systems, providing smooth rotation under high radial loads. Its metric dimensions make it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: 6230 Bearing
For automation systems, 6230 Bearing’s chrome steel construction offers durability in robotic arms and conveyor belts. The P6 tolerance class ensures precise operation in high-speed environments.

Medical vs Industrial: Where 6230 Bearing Excels
In medical imaging devices, 6230 Bearing’s consistent performance and temperature resistance make it suitable for precision equipment. Its static radial load capacity also benefits industrial presses and heavy machinery.
