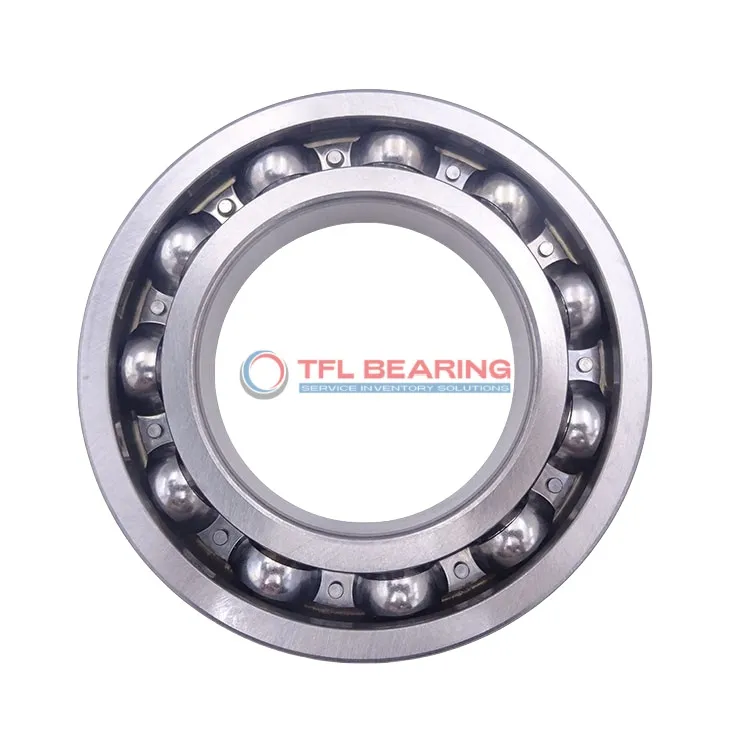

Single Row Deep Groove Ball Bearings 6224

Single Row Deep Groove Ball Bearings 6224

The 6224 is a single-row deep groove ball bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32822 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for machinery like pumps or electric motors where radial loads are common.

Weighing 5270g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6224
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 32822 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4000 rpm
  • Weight 5270 g
  • price（$） 84.42
Single Row Deep Groove Ball Bearings 6224 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6224 Bearing

6224 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 32,822 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The P6 tolerance class of 6224 Bearing provides precise performance for demanding applications.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in various conditions.

6224 Bearing operates reliably in temperatures ranging from -30° to 120°C.
Its open design simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of 6224 Bearing
The 6224 Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its radial load capacity ensures smooth operation. Its open design allows for easy lubrication, extending service life in demanding conditions.

What Makes 6224 Bearing a Preferred Choice?
In automotive applications, 6224 Bearing fits well in wheel hubs and transmission systems due to its balanced load handling. The P6 tolerance class provides the precision needed for consistent performance.

Built for Heavy-Duty Use: 6224 Bearing
For automation equipment, 6224 Bearing’s chrome steel construction offers reliability in robotic arms and conveyor systems. Its metric sizing makes it versatile for various European and Asian machinery standards.

Medical vs Industrial: Where 6224 Bearing Excels
While not typically used in medical devices, 6224 Bearing shines in industrial settings like compressors and gearboxes. Its static radial load capacity makes it suitable for equipment requiring long-term stability.
