Single Row Deep Groove Ball Bearings 6222 JEM

Single Row Deep Groove Ball Bearings 6222 JEM

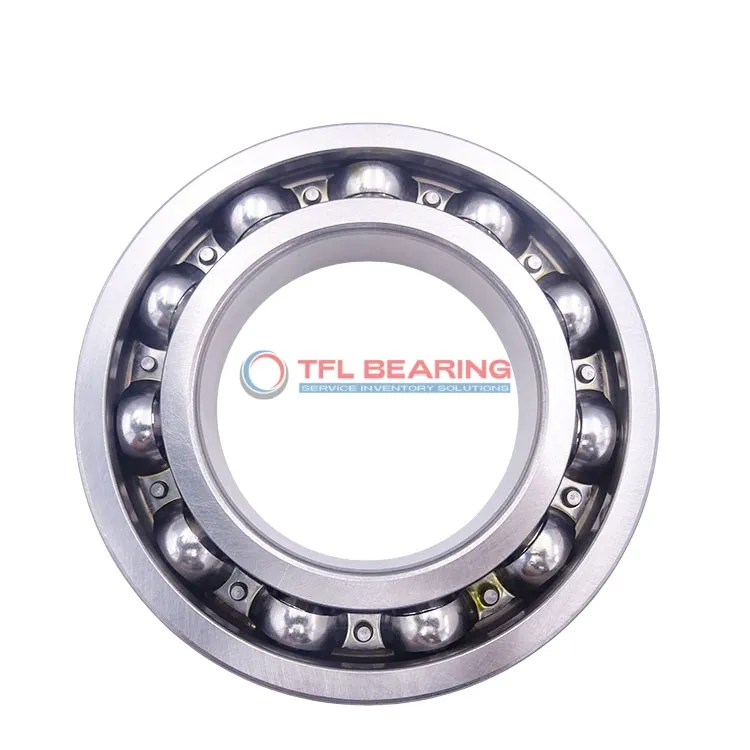

The 6222 JEM is a single-row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design allows for easy lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4450g, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4300 rpm
  • Weight 4450 g
  • price（$） 73.26
Single Row Deep Groove Ball Bearings 6222 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6222 JEM Bearing

6222 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33946 lbf, ensuring reliable performance in various applications.

The chrome steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,300 rpm, it delivers a balance of durability and efficiency.

6222 JEM Bearing operates smoothly in temperatures from -30°C to 120°C.
Its open design allows for easy lubrication and maintenance.

The ABEC 1 tolerance class ensures consistent performance.
This makes 6222 JEM Bearing a practical choice for industrial use.

Application

Industrial Uses of 6222 JEM Bearing
The 6222 JEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for high-speed applications.

Where Is 6222 JEM Bearing Used?
In automotive applications, 6222 JEM Bearing can be found in wheel hubs and transmissions, providing smooth rotation under heavy loads. The chrome steel construction offers durability, even in demanding conditions.

Perfect Fit for Automation: 6222 JEM Bearing
For automated systems, 6222 JEM Bearing works well in conveyor belts and robotic arms, thanks to its consistent performance. The ABEC 1 tolerance ensures precision in repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6222 JEM Bearing
In light-duty applications like household appliances, 6222 JEM Bearing offers quiet operation and longevity. For heavier tasks, such as industrial gearboxes, it handles radial loads with ease.
