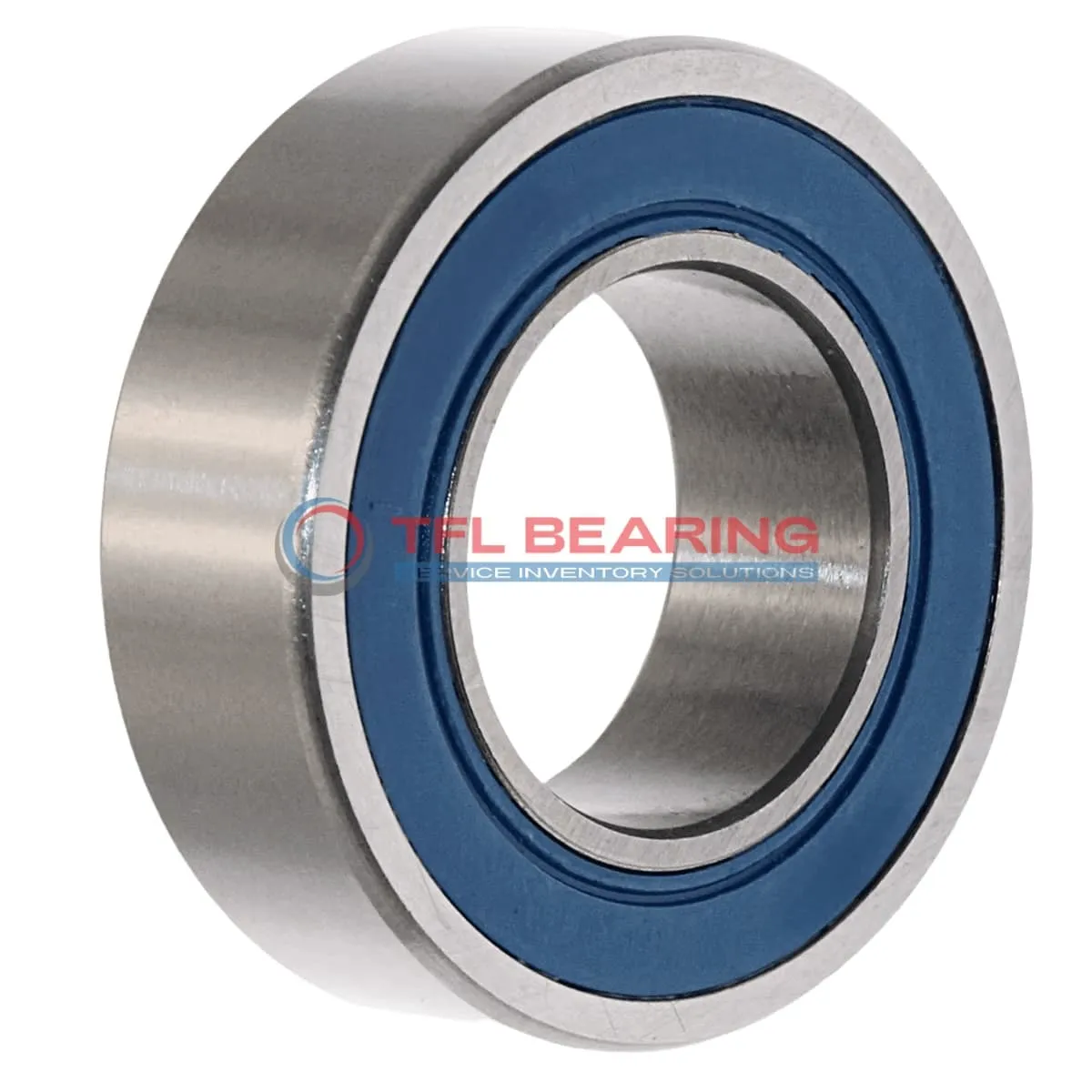

Single Row Deep Groove Ball Bearings 62210-2RS1

Single Row Deep Groove Ball Bearings 62210-2RS1

The 62210-2RS1 is a sealed single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7891 lbf and operates smoothly at speeds up to 4800 RPM.

Its sealed design keeps grease in and contaminants out, reducing maintenance needs. The stainless steel cage adds durability, making it suitable for long-term use in various conditions.

This bearing works well in temperatures from -30°C to 120°C, fitting applications like electric motors or pumps. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 0.54kg, it balances strength and compactness. Compliant with RoHS and REACH standards, it’s a safe choice for industrial and mechanical uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62210-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5216 lbf
  • Max Speed 4800 rpm
  • Weight 0.54 kg
  • price（$） 25.182
Single Row Deep Groove Ball Bearings 62210-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 62210-2RS1 Bearing

62210-2RS1 Bearing is designed with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed construction protects against dust and moisture, making it suitable for various environments.

The stainless steel cage maintains ball alignment, reducing friction and noise during operation.
With a dynamic radial load capacity of 7891 lbf, it handles heavy loads efficiently.

62210-2RS1 Bearing operates smoothly within a temperature range of -30° to 120°C.
Its grease lubrication ensures long-lasting performance with minimal maintenance.

The P6 tolerance class provides precision, making it ideal for applications requiring high accuracy.
With a maximum speed of 4,800 rpm, it balances speed and reliability.

Application

Where Is 62210-2RS1 Bearing Used?
In industrial settings, 62210-2RS1 Bearing is commonly found in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Automotive applications like alternators and water pumps benefit from 62210-2RS1 Bearing’s reliable radial load capacity. Its grease lubrication provides smooth operation over extended periods without frequent maintenance.

For household appliances such as washing machines, 62210-2RS1 Bearing offers quiet performance and long service life. The sealed feature is particularly useful in preventing dust and moisture from affecting its operation.
