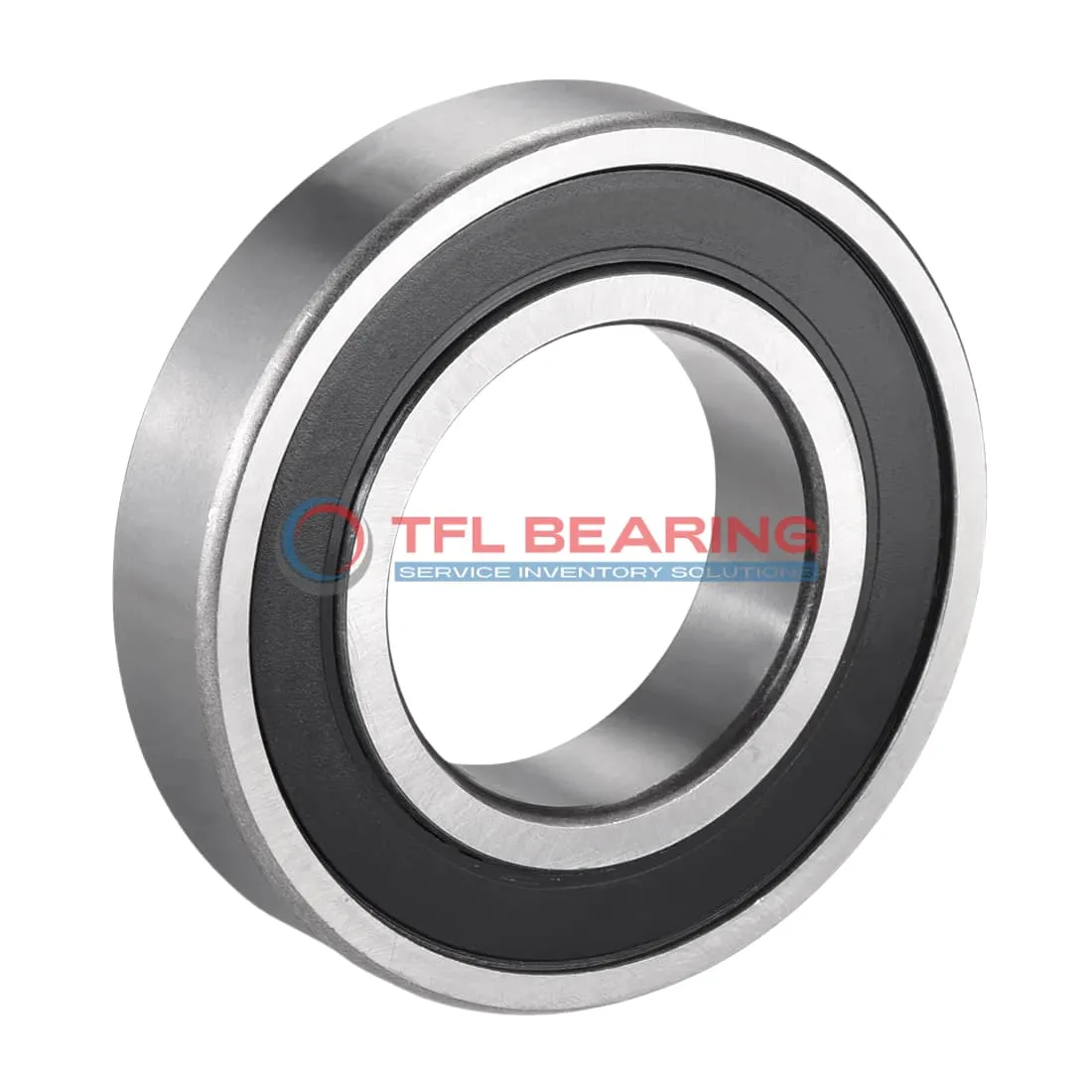

Single Row Deep Groove Ball Bearings 6220-2RS1/W64

Single Row Deep Groove Ball Bearings 6220-2RS1/W64

The 6220-2RS1/W64 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, built from sturdy chrome steel for long-lasting use. It handles radial loads up to 27427 lbf and runs smoothly at speeds up to 3600 RPM.

Sealed on both sides, this bearing keeps dirt out and solid oil lubrication in, reducing maintenance needs. Its chrome steel cage adds durability, making it a reliable choice for heavy-duty applications.

With a temperature range of -30°C to 120°C, it performs well in various environments. The bearing is interchangeable with SKF models, offering a cost-effective alternative.

Weighing 3120g, it’s robust yet manageable for its size. Ideal for industrial machinery, pumps, or electric motors where radial load support is key. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
  • price（$） 96.264
Single Row Deep Groove Ball Bearings 6220-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6220-2RS1/W64 Bearing Reduce Friction?

6220-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial load applications.

Its dynamic radial load capacity of 27427 lbf allows for reliable performance under heavy loads.
The bearing operates efficiently within a temperature range of -30°C to 120°C, adapting to various environments.

With a maximum speed of 3,600 rpm, it balances performance and longevity.
The ABEC 1 tolerance class ensures consistent precision in its operation.

Application

Common Applications of 6220-2RS1/W64 Bearing
The 6220-2RS1/W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design keeps contaminants out. Its solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 6220-2RS1/W64 Bearing fits well in wheel hubs and alternators, thanks to its radial load capacity. The chrome steel construction provides durability under constant vibration and stress.

For automation systems, 6220-2RS1/W64 Bearing works smoothly in robotic arms and conveyor belts. Its ABEC 1 tolerance offers reliable precision for repetitive movements without frequent maintenance.

In household appliances like washing machines, 6220-2RS1/W64 Bearing handles moderate loads quietly. The temperature range makes it suitable for both hot and cold operating conditions.
