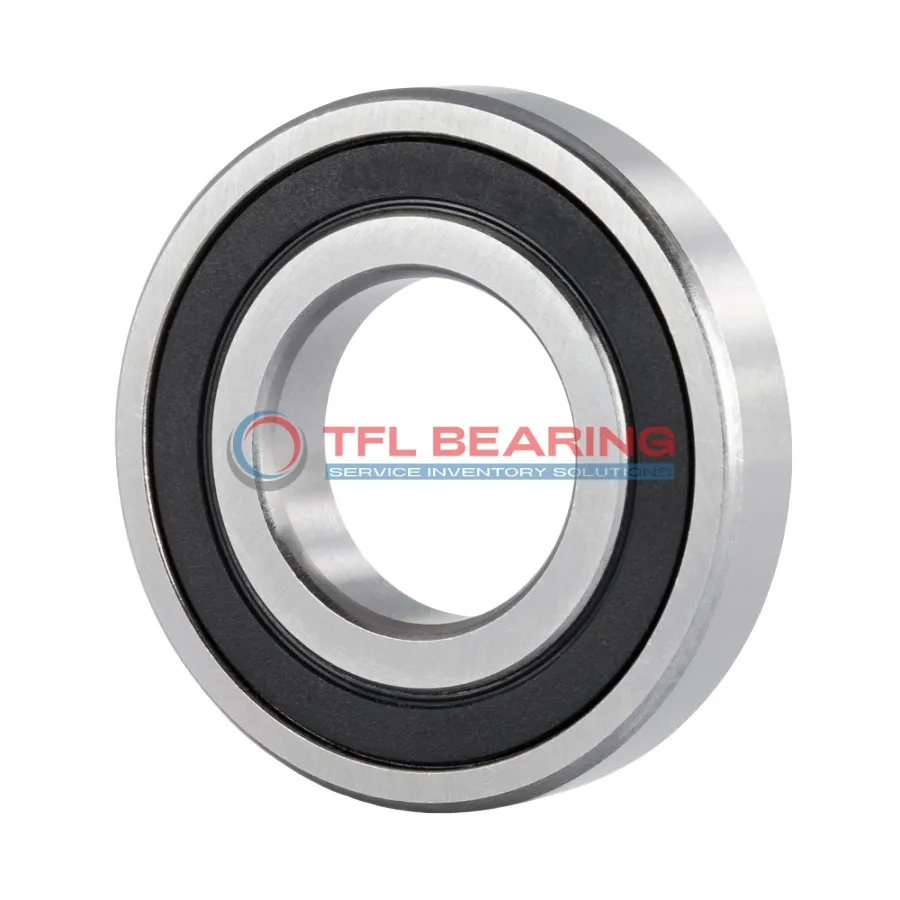

Single Row Deep Groove Ball Bearings 6009-2RSJEM

Single Row Deep Groove Ball Bearings 6009-2RSJEM

The 6009-2RSJEM is a single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4721 lbf and operates smoothly at speeds up to 9200 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing just 245g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g
  • price（$） 10.071
Single Row Deep Groove Ball Bearings 6009-2RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009-2RSJEM Bearing

6009-2RSJEM Bearing is designed for radial loads, with a dynamic radial load capacity of 4721 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the ABEC 1 tolerance ensures reliable performance.
With a maximum speed of 9,200 rpm, it balances efficiency and longevity.

6009-2RSJEM Bearing operates in temperatures from -30°C to 120°C, making it versatile for different applications.
Its compact size (45 mm×75 mm×16 mm) allows for easy integration into various machinery.

Application

Common Applications of 6009-2RSJEM Bearing
6009-2RSJEM Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6009-2RSJEM Bearing fits well in components such as alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it compatible with various vehicle models.

For home appliances, 6009-2RSJEM Bearing is a solid choice for washing machines and fans, offering smooth operation and low maintenance. The sealed design also extends its lifespan in everyday use.

How Does 6009-2RSJEM Bearing Support High-Speed Operations?
6009-2RSJEM Bearing handles high-speed rotations efficiently, making it suitable for power tools and small machinery. The ABEC 1 tolerance ensures consistent performance without excessive vibration.

In robotics, 6009-2RSJEM Bearing works well in joint mechanisms, where precision and reliability are key. The sealed design protects against contaminants, ensuring long-term functionality.

Built for Versatility: 6009-2RSJEM Bearing
6009-2RSJEM Bearing adapts easily to different settings, from industrial gearboxes to household appliances. Its balanced design supports both radial and light axial loads.

The temperature range of -30°C to 120°C allows 6009-2RSJEM Bearing to perform reliably in various climates. This makes it a dependable option for outdoor equipment as well.

Light-Duty vs Heavy-Duty: Best Uses for 6009-2RSJEM Bearing
For light-duty tasks, 6009-2RSJEM Bearing excels in office printers and small fans, where quiet operation is important. The sealed design reduces the need for frequent maintenance.

In heavier applications like agricultural machinery, 6009-2RSJEM Bearing provides steady performance despite rough conditions. The chrome steel components resist wear over time.
