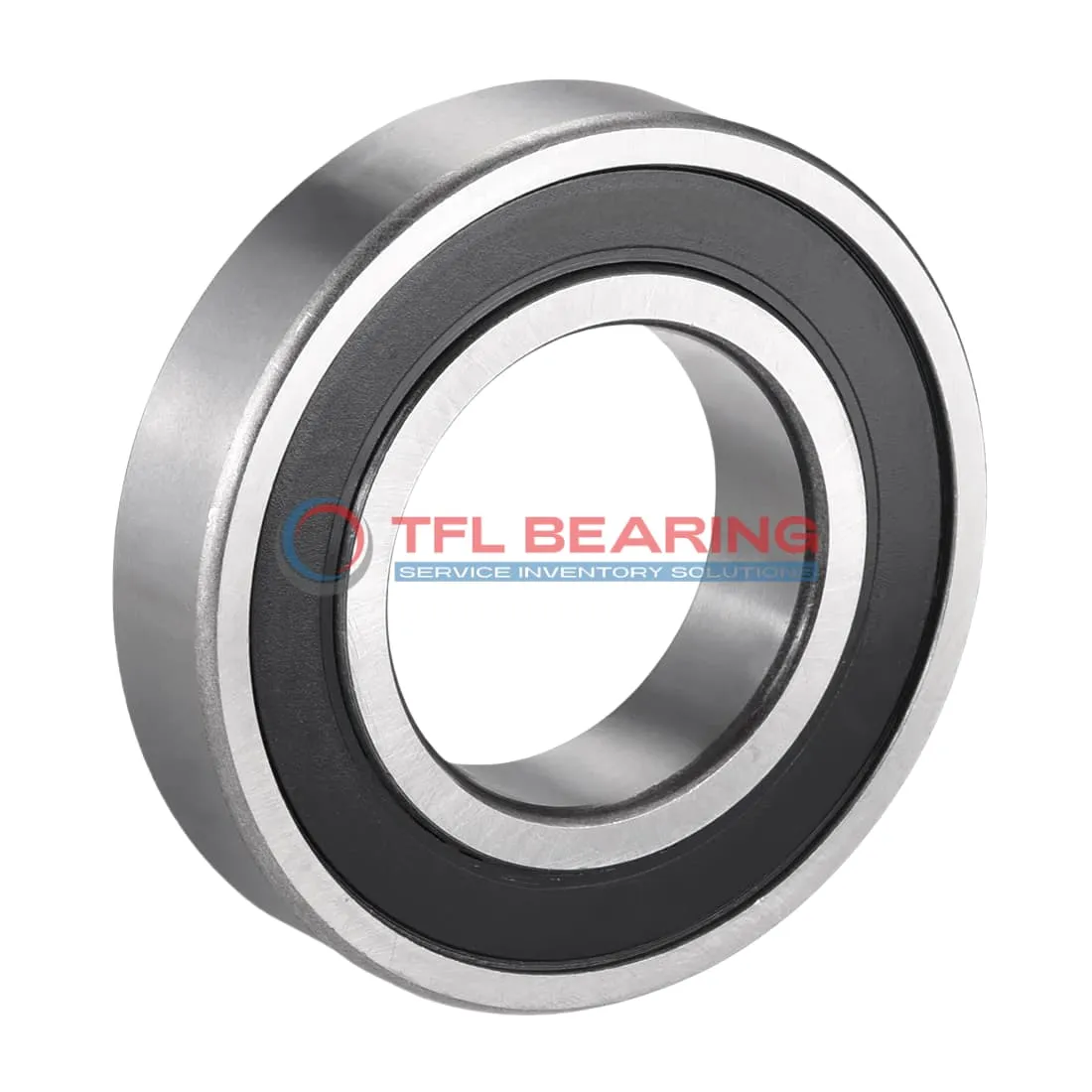

Single Row Deep Groove Ball Bearings 6220-2RS1/C3

Single Row Deep Groove Ball Bearings 6220-2RS1/C3

The 6220-2RS1/C3 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 clearance allows for slight thermal expansion, ensuring reliable performance in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for industrial machinery, pumps, or electric motors where radial loads are common.

Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
  • price（$） 59.535
Single Row Deep Groove Ball Bearings 6220-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6220-2RS1/C3 Bearing

6220-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 27427 lbf.
Its sealed design protects against dust and moisture, ensuring reliable operation in various environments.

The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature applications up to 120°C.
With a maximum speed of 3,600 rpm, it balances performance and durability in demanding conditions.

6220-2RS1/C3 Bearing’s single-row deep groove design ensures smooth rotation and efficient load distribution.
The chrome steel cage enhances stability, reducing wear and extending the bearing’s service life.

This bearing meets ABEC 1 and ISO P0 tolerance standards, providing consistent performance.
Its sealed construction minimises maintenance needs, making it a cost-effective choice for industrial applications.

Application

Industrial Uses of 6220-2RS1/C3 Bearing
The 6220-2RS1/C3 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 clearance allows for slight thermal expansion, making it suitable for variable operating conditions.

Where Is 6220-2RS1/C3 Bearing Used?
You’ll often find the 6220-2RS1/C3 Bearing in automotive applications like wheel hubs and transmissions, thanks to its radial load capacity and durability. The chrome steel construction ensures long-lasting performance even under heavy use.

Perfect Fit for Automation: 6220-2RS1/C3 Bearing
In automated systems, the 6220-2RS1/C3 Bearing works well in conveyor belts and robotic arms, providing smooth rotation. Its sealed design reduces maintenance needs, which is ideal for high-use environments.

Medical vs Industrial: Where 6220-2RS1/C3 Bearing Excels
While the 6220-2RS1/C3 Bearing is robust enough for industrial gear, it’s also reliable in medical devices like centrifuges. The temperature range of -30° to 120°C ensures consistent performance in various settings.

Light-Duty vs Heavy-Duty: Best Uses for 6220-2RS1/C3 Bearing
For light-duty applications like household appliances, the 6220-2RS1/C3 Bearing offers quiet operation. In heavy-duty scenarios, such as construction equipment, it handles radial loads with ease.
