Single Row Deep Groove Ball Bearings 6218 2S1 HC5C3GJN

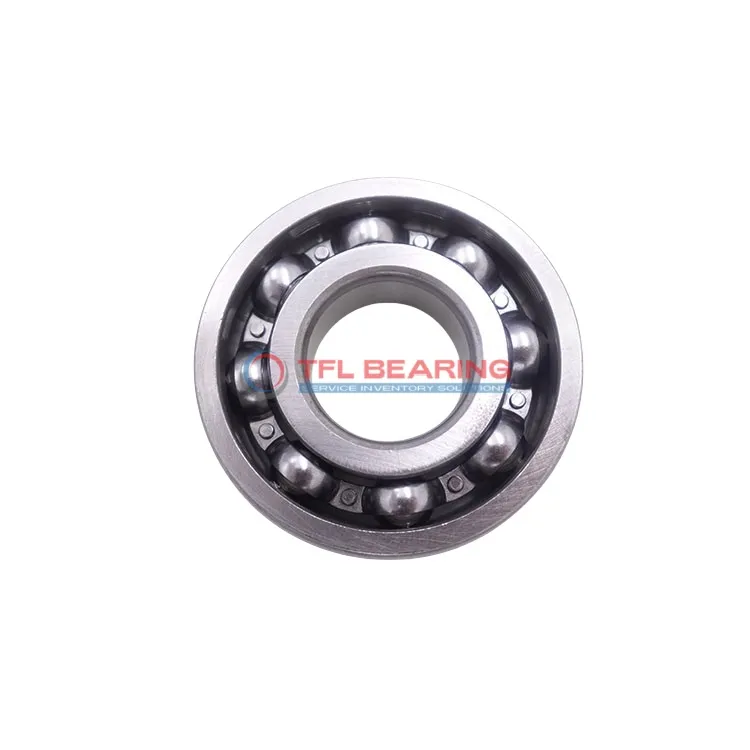

Single Row Deep Groove Ball Bearings 6218 2S1 HC5C3GJN

The 6218 2S1 HC5C3GJN is a single-row deep groove ball bearing with a 90mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21604 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and silicon nitride balls reduce friction, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C3 radial clearance, it’s suited for applications where slight expansion is expected. Ideal for industrial machinery or electric motors requiring robust radial load support.

Weighing 2150g, it’s a solid choice for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6218 2S1 HC5C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 30 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 21604 lbf
  • Static Radial Load 16074 lbf
  • Max Speed 4000 rpm
  • Weight 2150 g
Single Row Deep Groove Ball Bearings 6218 2S1 HC5C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6218 2S1 HC5C3GJN Bearing

6218 2S1 HC5C3GJN Bearing is built with chrome steel rings and silicon nitride balls, offering strong radial load capacity.
Its dynamic radial load reaches 21604 lbf, making it suitable for heavy-duty applications.

The C3 radial clearance ensures smooth operation even under varying temperature conditions.
With a maximum speed of 4,000 rpm, it balances performance and durability.

6218 2S1 HC5C3GJN Bearing operates in temperatures from -30°C to 200°C, adapting to diverse environments.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of 6218 2S1 HC5C3GJN Bearing
6218 2S1 HC5C3GJN Bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently.
The open seal type allows for easy lubrication, making it suitable for high-temperature environments up to 200°C.

What Makes 6218 2S1 HC5C3GJN Bearing a Preferred Choice?
In automotive applications, 6218 2S1 HC5C3GJN Bearing is often found in wheel hubs and transmissions due to its durable chrome steel construction.
The C3 radial clearance ensures smooth operation even under varying load conditions.

Perfect Fit for Automation: 6218 2S1 HC5C3GJN Bearing
6218 2S1 HC5C3GJN Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key.
Its silicon nitride balls reduce friction, enhancing performance in high-speed scenarios.

Medical vs Industrial: Where 6218 2S1 HC5C3GJN Bearing Excels
In medical devices like centrifuges, 6218 2S1 HC5C3GJN Bearing offers quiet and stable operation.
For industrial gearboxes, its high dynamic radial load capacity ensures long service life.

Where to Use 6218 2S1 HC5C3GJN Bearing
6218 2S1 HC5C3GJN Bearing is ideal for electric motors and fans, thanks to its balanced design and temperature resistance.
The metric dimensions make it easy to integrate into various European and Asian equipment.
