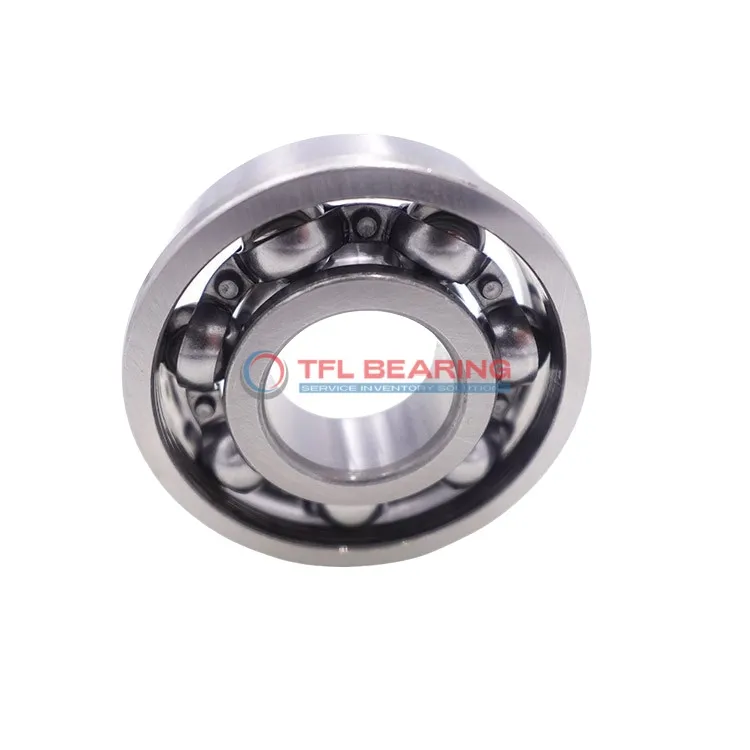

Single Row Deep Groove Ball Bearings 6217/W64

Single Row Deep Groove Ball Bearings 6217/W64

The 6217/W64 is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 18884 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial load handling is key.

Weighing 1740g, it’s a robust option for industrial use. Compliant with RoHS and REACH standards, it’s safe and environmentally friendly.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6217/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18884 lbf
  • Static Radial Load 13916 lbf
  • Max Speed 4300 rpm
  • Weight 1740 g
  • price（$） 51.705
Single Row Deep Groove Ball Bearings 6217/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6217/W64 Bearing

6217/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 18884 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces maintenance needs while extending the bearing’s service life.
With a maximum speed of 4,300 rpm, it balances efficiency and durability.

6217/W64 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies installation and maintenance, saving time and effort.

Application

Industrial Uses of 6217/W64 Bearing
The 6217/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. Its solid oil lubrication ensures long service life with minimal maintenance.

Where Is 6217/W64 Bearing Used?
You’ll often find the 6217/W64 Bearing in automotive applications such as wheel hubs and alternators, thanks to its reliable performance under varying speeds. The chrome steel construction also makes it resistant to wear in demanding conditions.

Perfect Fit for Automation: 6217/W64 Bearing
In robotic arms and conveyor systems, the 6217/W64 Bearing provides smooth rotation and consistent performance. Its open design allows for easy inspection and re-lubrication when needed.

Light-Duty vs Heavy-Duty: Best Uses for 6217/W64 Bearing
For light-duty applications like household appliances, the 6217/W64 Bearing offers quiet operation and durability. In heavier industrial settings, it handles radial loads without compromising on efficiency.
