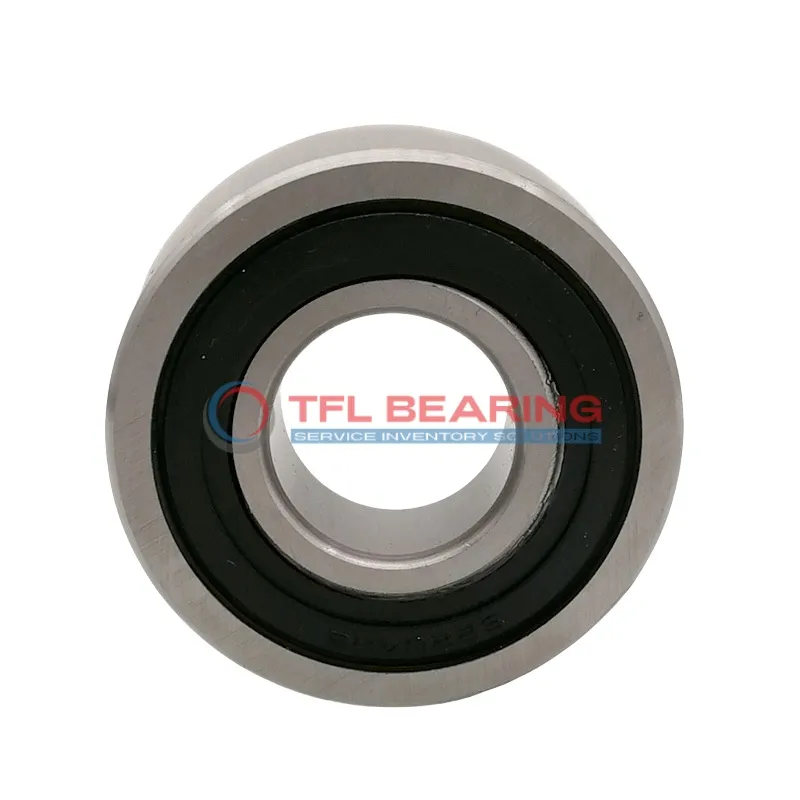

Self Aligning Ball Bearings 2309E-K 2RS C/3

Self Aligning Ball Bearings 2309E-K 2RS C/3

The 2309E-K 2RS C/3 is a self-aligning ball bearing with a 45mm tapered bore and 100mm outer diameter, designed for radial loads. Made from chrome steel, it handles up to 8775 lbf and runs smoothly at 4300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, making maintenance easier. The nylon cage reduces friction for quieter operation.

This bearing suits applications where misalignment might occur, like conveyor systems or agricultural machinery. It works in temperatures from -30°C to 110°C.

Weighing 1.3kg, it’s a sturdy choice for heavy-duty use. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309E-K 2RS C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
  • Price（$） 105.1
Self Aligning Ball Bearings 2309E-K 2RS C/3 dimension drawing
Download DWG Download PDF

Features

How Does 2309E-K 2RS C/3 Bearing Handle Radial Loads?

2309E-K 2RS C/3 Bearing features a double-row design, providing excellent radial load capacity up to 8775 lbf.
The chrome steel rings and balls ensure durability and smooth operation under various conditions.

Its sealed construction keeps contaminants out, making it suitable for dusty or humid environments.
The nylon cage reduces friction and noise, enhancing performance in precision applications.

With a maximum speed of 4,300 rpm, it balances efficiency and reliability.
The tapered bore design simplifies installation, saving time and effort during setup.

2309E-K 2RS C/3 Bearing operates within a wide temperature range, from -30° to 110°C.
This makes it versatile for use in different industrial settings.

Application

Industrial Uses of 2309E-K 2RS C/3 Bearing
2309E-K 2RS C/3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep out dust and debris, extending its lifespan in harsh environments.

In automotive applications, 2309E-K 2RS C/3 Bearing works well in wheel hubs and transmissions, handling radial loads with ease. Its tapered bore ensures a secure fit, reducing slippage during high-speed operation.

For robotics, 2309E-K 2RS C/3 Bearing provides smooth movement in articulated arms, thanks to its double-row construction. The nylon cage reduces friction, making it a quiet option for precision tasks.

In household appliances like washing machines, 2309E-K 2RS C/3 Bearing offers reliable performance under constant vibration. The lubricated design ensures it runs smoothly even after years of use.
