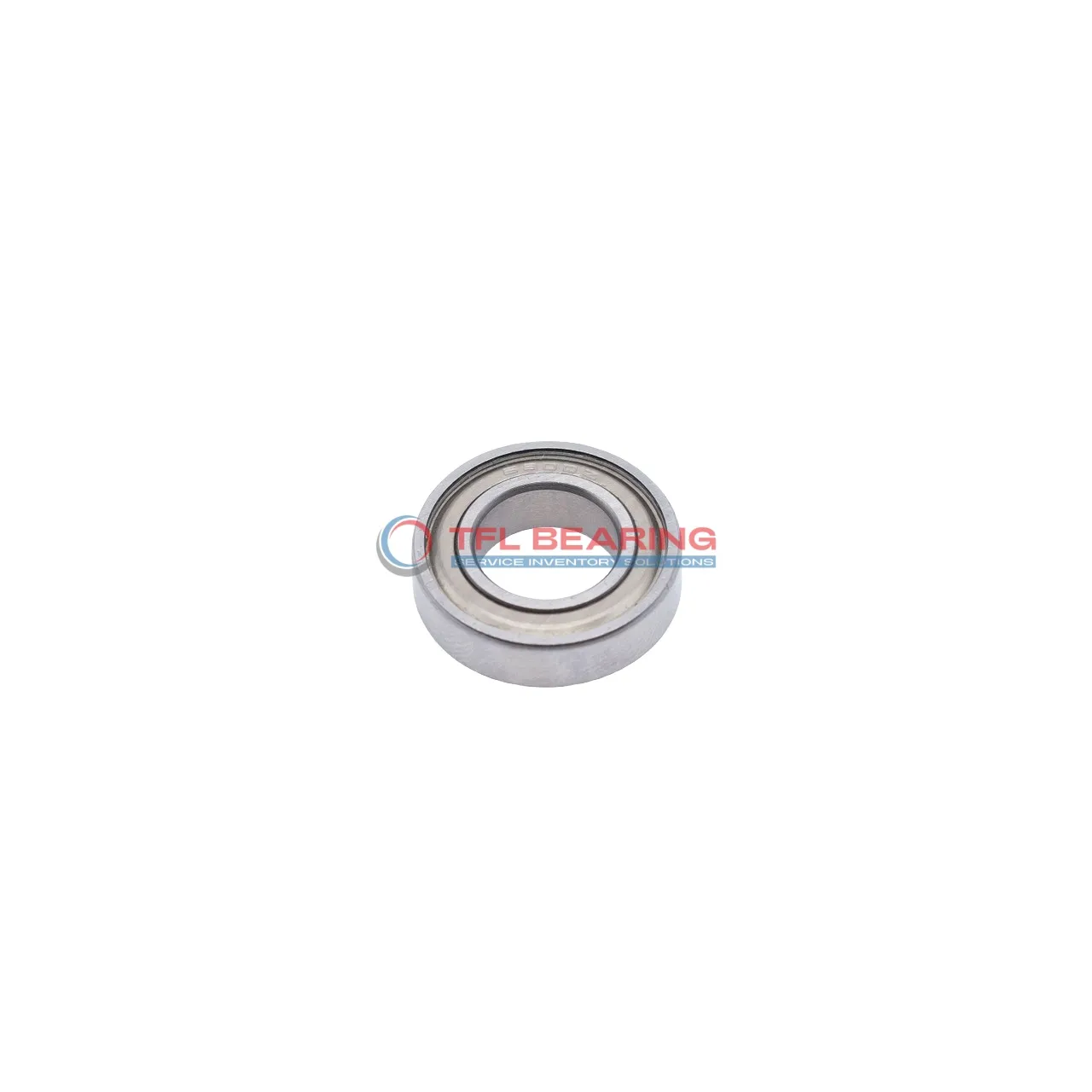

Single Row Deep Groove Ball Bearings 6213-2Z/C3HT

Single Row Deep Groove Ball Bearings 6213-2Z/C3HT

The 6213-2Z/C3HT is a single-row deep groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 12859 lbf and operates smoothly at speeds up to 5300 RPM.

Shielded on both sides, it keeps out dust and debris while maintaining smooth rotation. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 979g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213-2Z/C3HT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 12859 lbf
  • Static Radial Load 9015 lbf
  • Max Speed 5300 rpm
  • Weight 979 g
Single Row Deep Groove Ball Bearings 6213-2Z/C3HT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6213-2Z/C3HT Bearing

6213-2Z/C3HT Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 12859 lbf, ensuring steady performance in various applications.

The shielded design of 6213-2Z/C3HT Bearing protects against dust and contaminants, enhancing durability.
With a maximum speed of 5,300 rpm, it balances efficiency and reliability.

6213-2Z/C3HT Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for diverse conditions.

Application

Industrial Uses of 6213-2Z/C3HT Bearing
6213-2Z/C3HT Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

What Makes 6213-2Z/C3HT Bearing a Preferred Choice?
In automotive applications, 6213-2Z/C3HT Bearing fits well in alternators and wheel hubs, thanks to its balanced radial load capacity. The chrome steel construction offers durability for long-term use.

Perfect Fit for Automation: 6213-2Z/C3HT Bearing
For automated systems, 6213-2Z/C3HT Bearing works smoothly in conveyor belts and robotic arms. Its metric sizing makes it easy to integrate into various European-designed equipment.

Medical vs Industrial: Where 6213-2Z/C3HT Bearing Excels
While 6213-2Z/C3HT Bearing is sturdy enough for industrial gear, it’s also precise enough for medical devices like centrifuges. The temperature range ensures stability in different environments.
