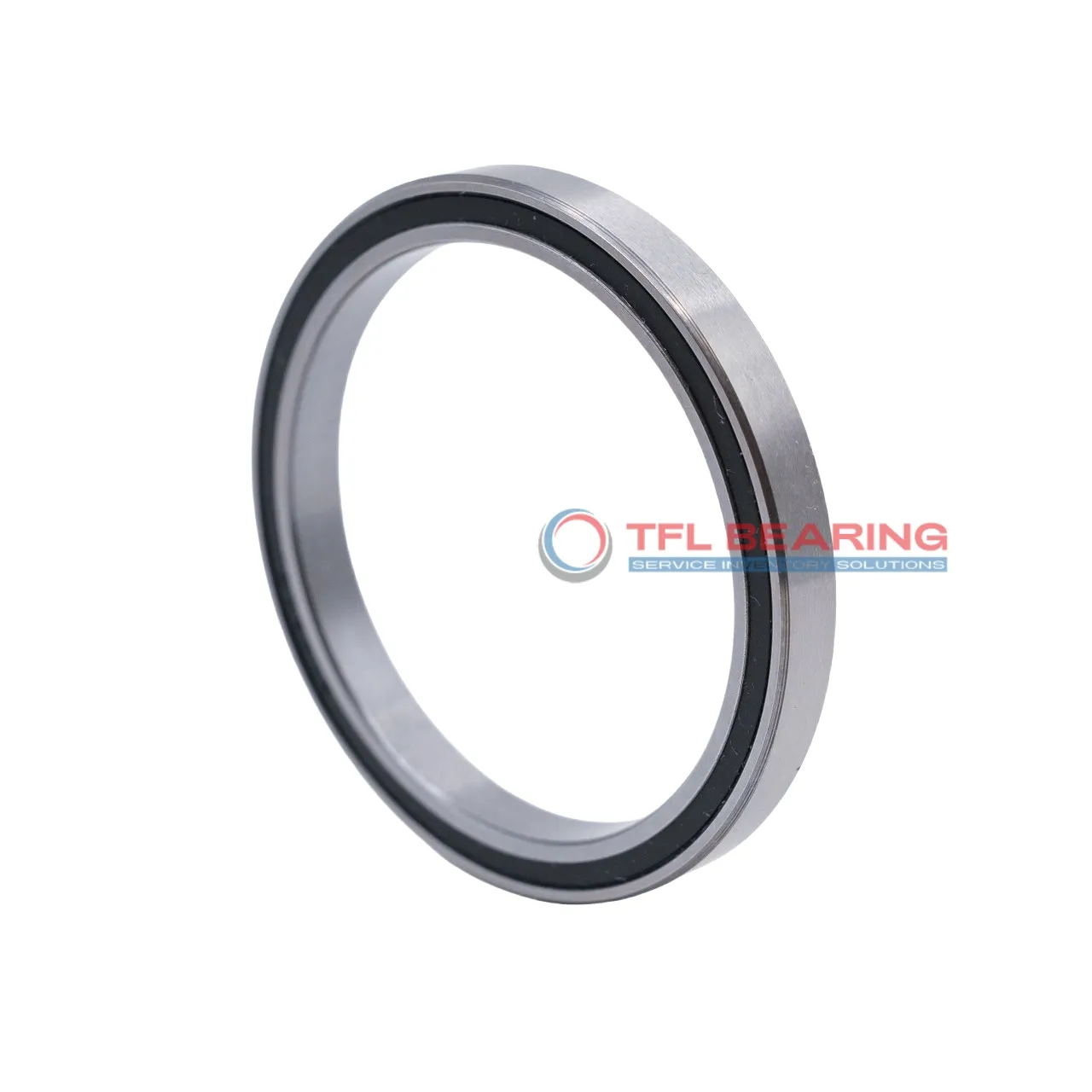

Constant Section (CS) Bearings WA030XP0

Constant Section (CS) Bearings WA030XP0

The WA030XP0 is a slim, sealed ball bearing measuring 3″ in bore and 3.5″ in outer diameter, with a compact width of just 0.25″. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This four-point contact bearing handles radial loads up to 643 lbf and thrust loads up to 1010 lbf, making it versatile for various applications. Its sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

With a temperature range of -30°C to 110°C, it performs well in most environments. The thin section design saves space without sacrificing strength.

Ideal for robotics, medical equipment, or aerospace applications where compact size and reliability are key. It’s interchangeable with KAYDON bearings, simplifying replacements. Weighing only 0.14 lbs, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WA030XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 3"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3.5"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series WA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 3.148"
  • Internal Diameter On Outer Ring (Small Side Face) 3.356"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 643 lbf
  • Static Radial Load 990 lbf
  • Static Thrust Load 2470 lbf
  • Static Moment 1600 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 785 lbf
  • Dynamic Thrust Load 1010 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.14 lbs
  • price（$） 389.48
Constant Section (CS) Bearings WA030XP0 dimension drawing
Download DWG Download PDF

Features

How Does WA030XP0 Bearing Handle Heavy Loads?

WA030XP0 Bearing is constructed with stainless steel rings and balls, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 643 lbf, while the static thrust load goes up to 2470 lbf, ensuring reliable performance.
The sealed design protects against contaminants, making it suitable for various industrial applications.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Application

Key Fields for WA030XP0 Bearing
WA030XP0 Bearing is commonly used in robotics, particularly in robotic arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long-term performance in dusty environments.

In aerospace applications, WA030XP0 Bearing provides reliable support for control mechanisms due to its stainless steel construction and precise tolerances. Its lightweight design is ideal for reducing overall system weight in aircraft components.

For medical imaging devices, WA030XP0 Bearing offers smooth rotation and low friction, essential for accurate positioning. The ABEC-1 tolerance ensures consistent performance in high-precision diagnostic equipment.

WA030XP0 Bearing is also found in packaging machinery, where its ability to handle moment loads improves efficiency in conveyor systems. The lubricated design reduces maintenance needs, making it a cost-effective choice for continuous operation.

In semiconductor manufacturing, WA030XP0 Bearing’s corrosion-resistant materials and sealed design prevent contamination in cleanroom environments. Its compact size fits well in tight spaces within wafer handling equipment.
